Standard Repair Process Detail Technical Manual
Remote control operation checking method
D. Function error
Established
date
Revised
date
Error
symptom
Content
A24
Checking order

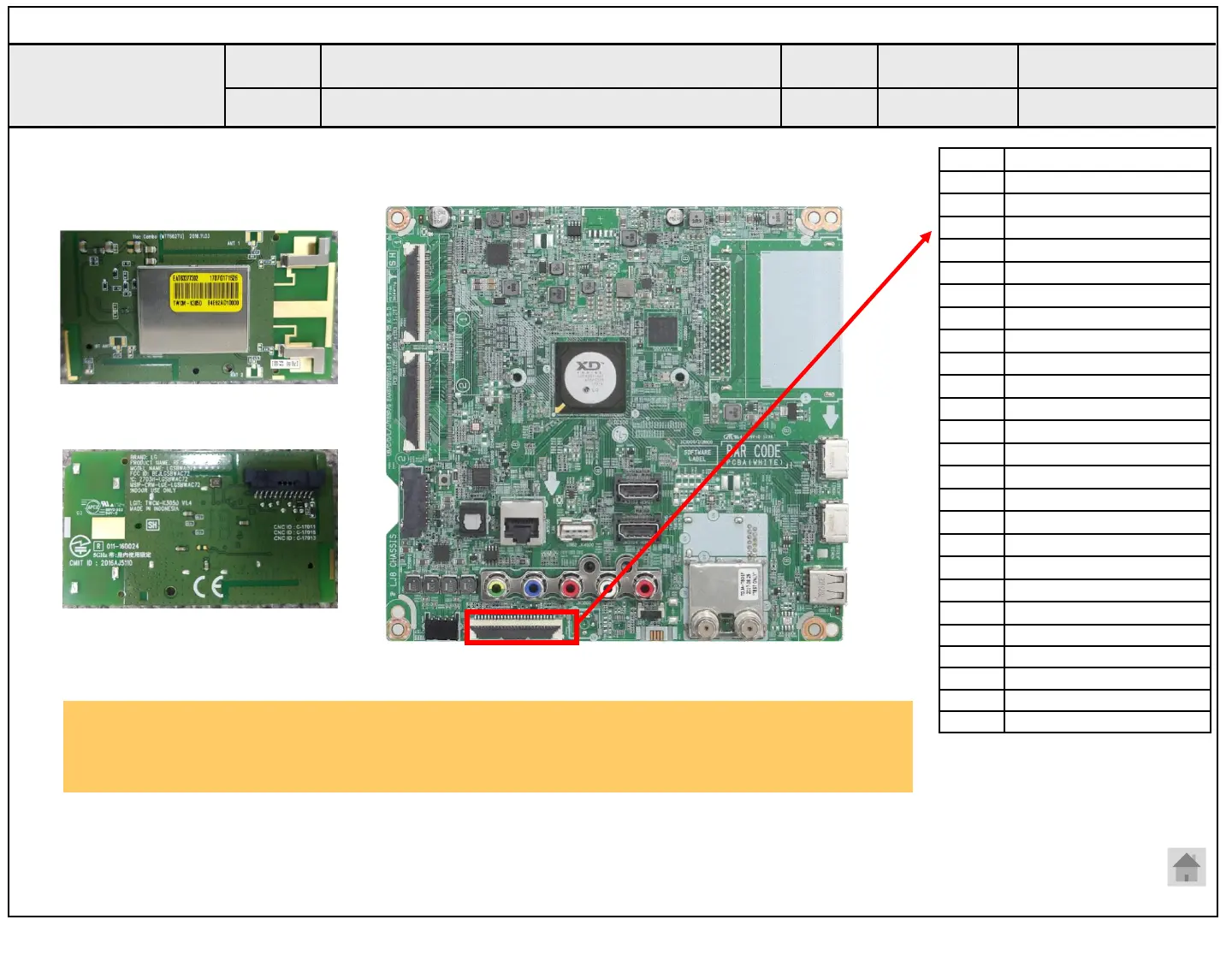

1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2.Check the 3.5V on the terminal 22
Checking order to check motion remote/wifi
Wifi & BT Front
Wifi & BT Rear
Pin
Pin name
1
+3.5V_WIFI
2
WIFI_DM_JACK
3
WIFI_DP_JACK
4
5
WOL/WIFI_POWER_ON_JACK
6
+3.5V_WIFI
7
COMBO_RESET_JACK
8
9
BT_WAKEUP_DEVICE_JACK
10
BT_WAKEUP_HOST_JACK
11
12
13
14
15
16
EYE_SDA_JACK
17
EYE_SCL_JACK
18
19
IR_JACK
20
LED_R_JACK
21
22
+3.5V_ST
23
KEY2_JACK
24
KEY1_JACK
25
A24
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
