Standard Repair Process Detail Technical Manual

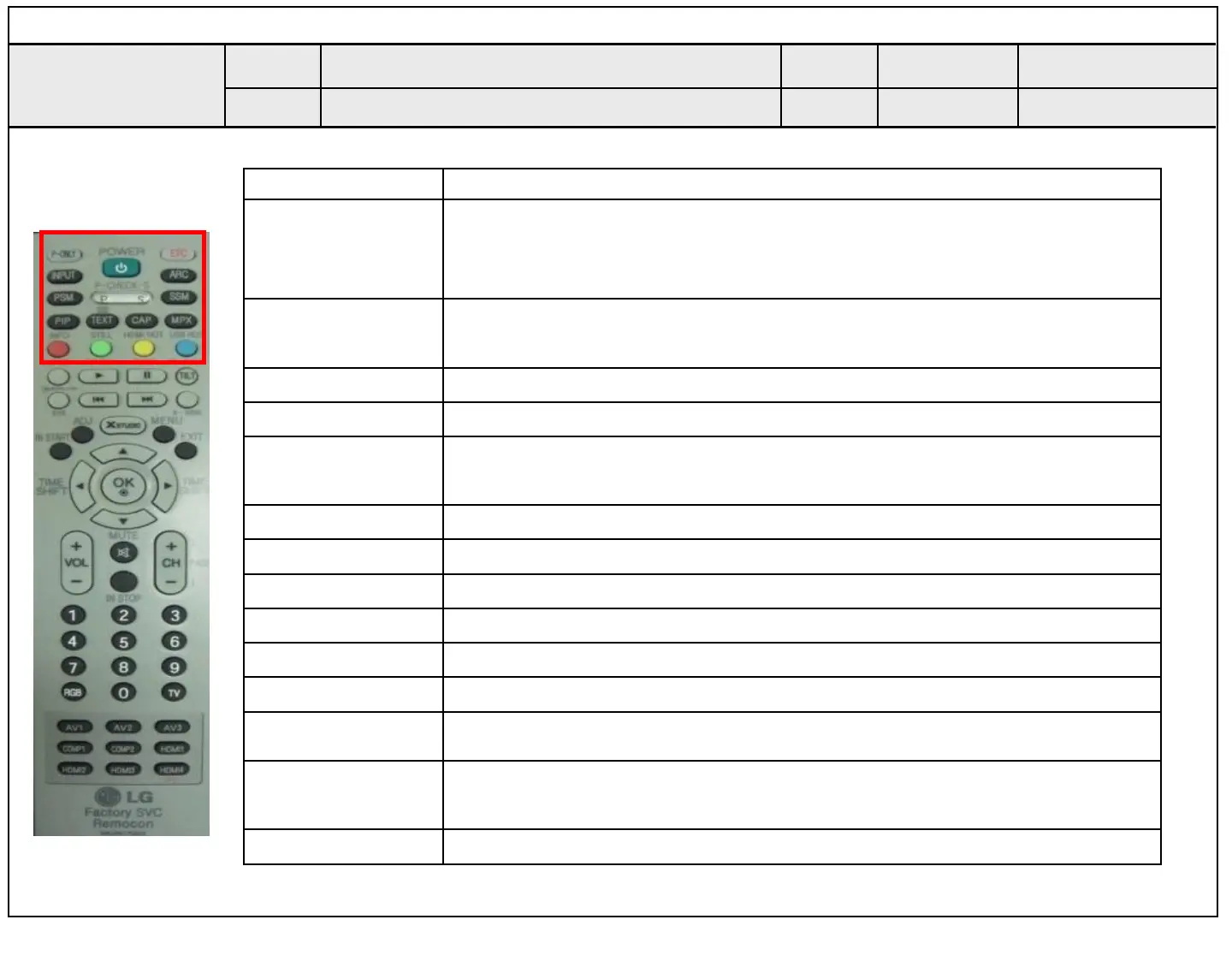

How to use the Service remote control

D. Function error

A26

Established

date

Revised

date

Error

symptom

Content

A26

POWER Power On/Off

ETC (Added Function)

[ETC] Each time pressing the KEY button, Mode gets changed to ETC and P-ONLY each time

All KEY function [PIP PR-][PIP PR+][SWAP]

[PIP INPUT][DVI] KEY Function

P-ONLY (Added

Function)

Changed to factory mode

All KEY function &[INFO][STILL][HDMI HOT][USB HOT][HDMI4] KEY Action

INPUT Change to the external device mode

ARC Change in the order of 16:9=>Zoom1=>Zoom2=>Cinema Zoom=>Aucto Screen=>4:3=>16:9

PSM

Changes in the order of Bright Picture=>Easy Picture=>Cinema=>Spots=>Game=>

Custom PIcture1=>Custom Picture2=>Bright Picture

SSM (Added Function) Standard(user)=>music=>cinema=>sports=>game=>standard(user)

PIP Picture In Picture is activated

TEXT Access to the Power Only mode

CAP Broadcasting caption(on/off)

MPX Stereo mode (mono, stereo, foreign language) access

Used when in factory mode

Simplink (Added

Function)

Access to the Simplink-connected device

EYE

Digital EYE function ON/OFF

For some Model, access to the Test Pattern

TILT Used for screen tilting change (Access to the old PDP control mode)

2. Remote control part definition

Only for training and service purposes.

Questions and Answers:

Need help?

Do you have a question about the LG 49UK6300PUE and is the answer not in the manual?

LG 49UK6300PUE Specifications

General

Sustainability certificates	ENERGY STAR
Cables included	AC
3D	No
App store	LG Content Store
Annual energy consumption	123 kWh
Screen shape	Flat
Response time	- ms
Display diagonal	49 \
Display brightness	- cd/m²
Display technology	LED
Native aspect ratio	16:9
Native refresh rate	60 Hz
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
Motion interpolation technology	TruMotion 120 Hz
Tuner type	Digital
Analog signal format system	-
Digital signal format system	ATSC
Video apps	Netflix, YouTube
Lifestyle apps	Google Apps
Operating system version	4.0
Operating system installed	Web OS
Audio decoders	DTS, DTS-HD
RMS rated power	20 W
Number of speakers	2
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Product color	Black, Grey
Panel mounting interface	300 x 300 mm
Processor cores	4
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	SimpLink
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	231 mm
Height (with stand)	709 mm
Weight (with stand)	11300 g
Depth (without stand)	81 mm
Width (without stand)	1110 mm
Height (without stand)	650 mm
Weight (without stand)	11100 g
