2
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
1
2
CONNECTIING WITH A COMPONENT CABLE
■ To avoid damaging any equipment, never plug in any power cord until you have finished connecting
all equipment.
■ This section on EXTERNAL EQUIPMENT SETUP mainly uses diagrams for the 42/50PJ3*** models.
■ Image shown may differ from your TV.
Signal Component HDMI
480i/576i
O X
480p/576p
O O
720p/1080i
O O
1080p
O
(50/60Hz only)
O
(24Hz/30Hz/50Hz/60Hz)
Component Input ports

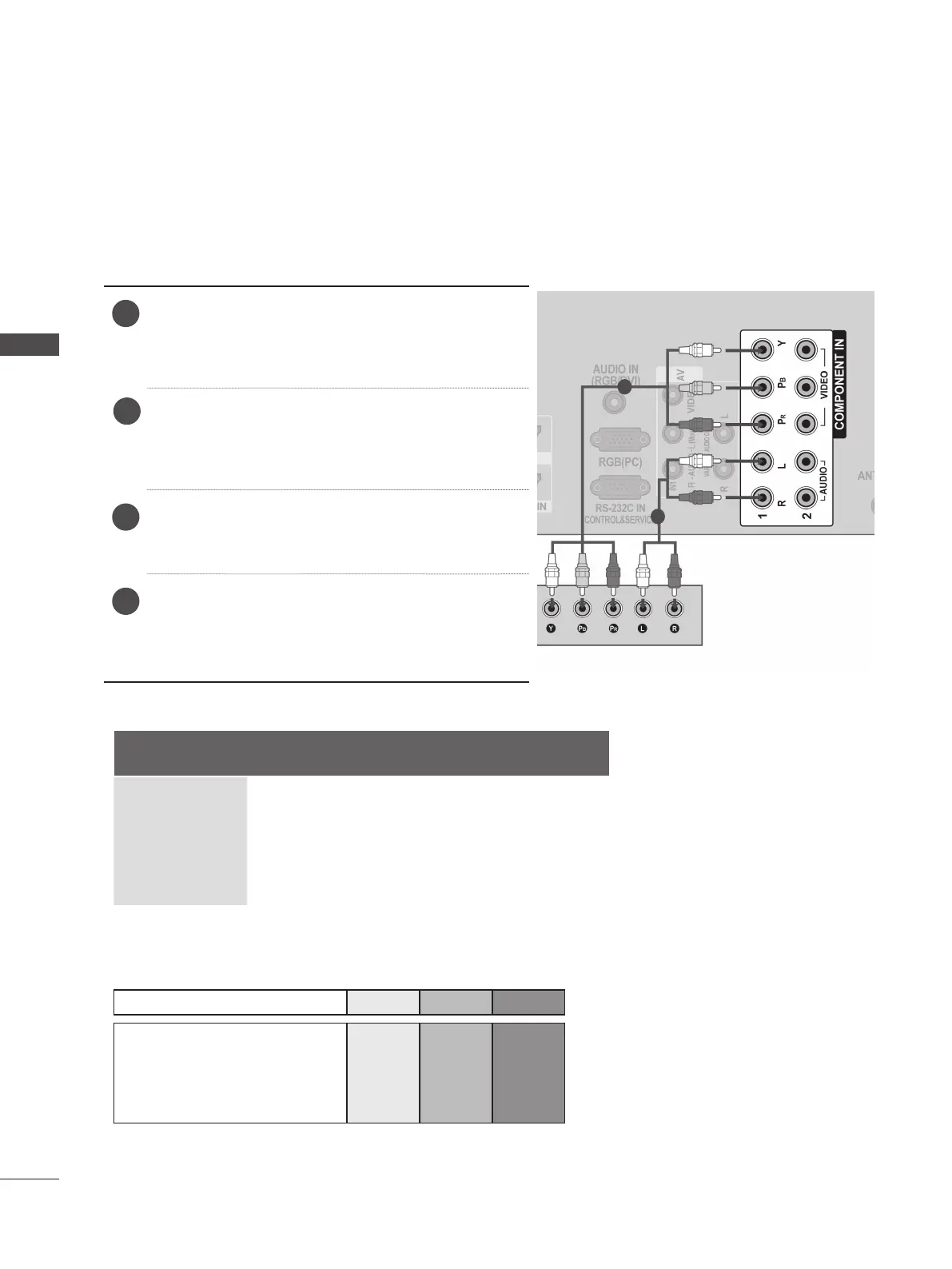

To achieve better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV Y PB PR
Video output ports
on DVD player
Y P
B PR
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
1
Connect the video outputs
(
Y, PB, PR
)
of the
external equipment (digital set-top box, DVD,
etc.) to the COMPONENT IN VIDEO jacks on
the TV.
Connect the audio outputs
(
Y, P
B, PR
)
of the
external equipment (digital set-top box, DVD,
etc.) to the COMPONENT IN AUDIO jacks on
the TV.
3
Turn on the external equipment.
(
Refer to the external equipment's manual for
operating instructions.)
4
Select COMPONENT 1 input source using the
INPUT button on the remote control.
If connected to COMPONENT IN 2, select
COMPONENT 2 input source.
2
