LG 50PJ550 User Manual

PREPARATION
21

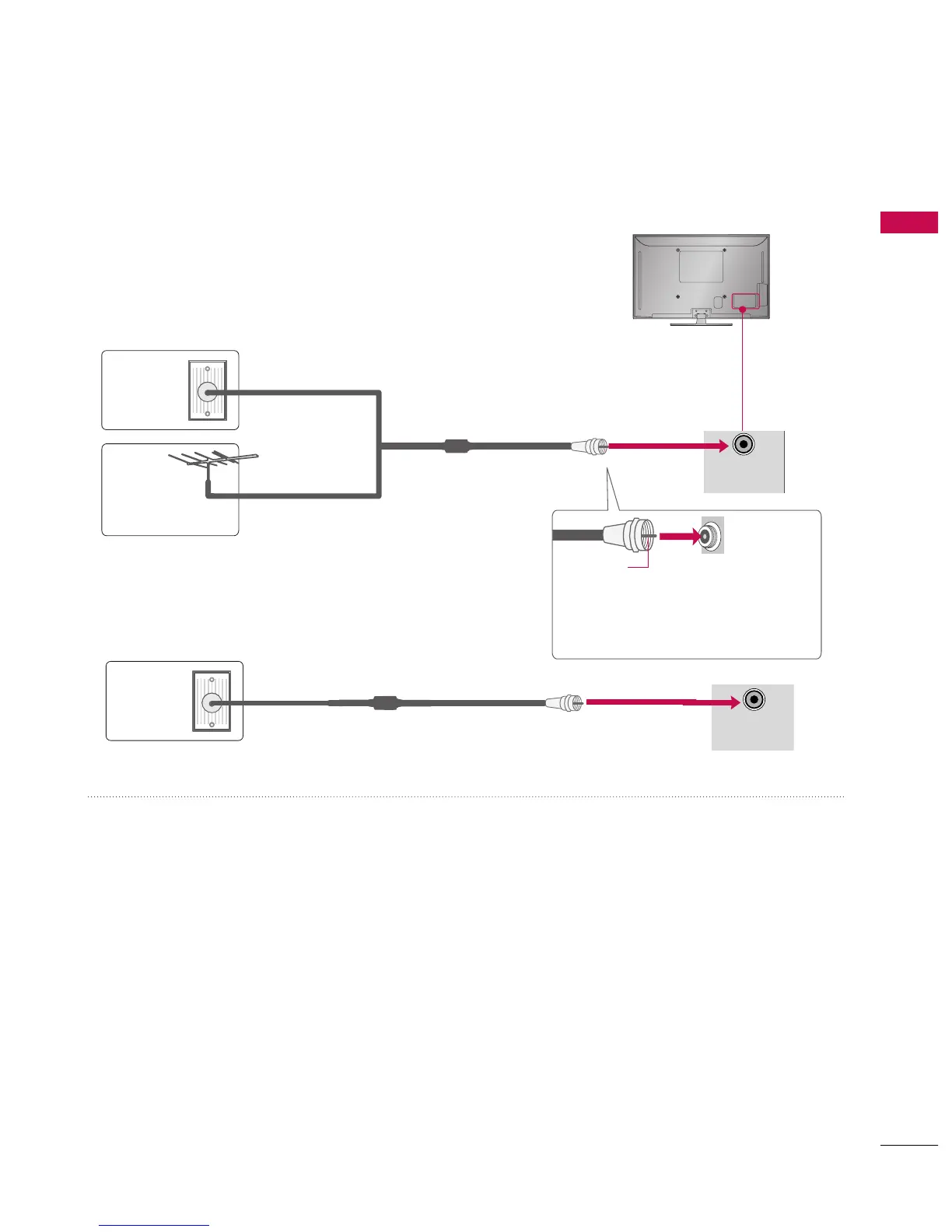

ANTENNA OR CABLE CONNECTION
1. Antenna (Analog or Digital)
Wall Antenna So cket or Outdoor Antenna without a Cable Box
Connection.
For optimum picture quality, adjust antenna direction if needed.
2. Cable
Cable TV
Wall Jack
RF Coaxial Wire (75 ohm)
■
To i m p ro ve t he p i c t u re q u a l i ty i n a p o o r s i g n a l a re a , p l e as e pu rc h as e a s i g n a l a m p li f i e r a n d i n s ta l l p ro p e r ly.
■
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■
If the antenna is not installed properly, contact your dealer for assistance.
R R
VARIABLE AUDIO OUT
( )
■
To p r ev e n t d a m a g e d o n o t c o n n e c t to t h e p owe r o u t l e t u n t i l a l l c o n n e c t i o n s a r e m a d e b etw e e n t h e d ev i c e s .
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
RF Coaxial Wire (75 ohm)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the copper wire
when connecting the antenna.
Copper Wire
R
ANTENNA
/CABLE
IN
R
ANTENNA
/CABLE
IN

LG 50PJ550 Specifications

General

Depth	55.3 mm
Height	724.3 mm
Weight	28600 g
Pixel pitch	0 mm
Audio system	Dolby Digital, SRS TruSurround XT
PC in (D-Sub)	Yes
Product color	Black
Response time	0.001 ms
LED indicators	Stand-by
RMS rated power	20 W
Display diagonal	50 \
Depth (with stand)	309.7 mm
Display brightness	1500 cd/m²
Display resolution	1366 x 768 pixels
Power requirements	100 - 240V AC, 50/60Hz
Width (with stand)	1171.4 mm
Height (with stand)	786.2 mm
High frequency rate	600 Hz
Weight (with stand)	31000 g
SCART ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Video formats supported	MPEG4
Contrast ratio (dynamic)	3000000:1
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.1 W
Power consumption (typical)	184 W
