EXTERNAL EQUIPMENT SETUP
24
EXTERNAL EQUIPMENT SETUP

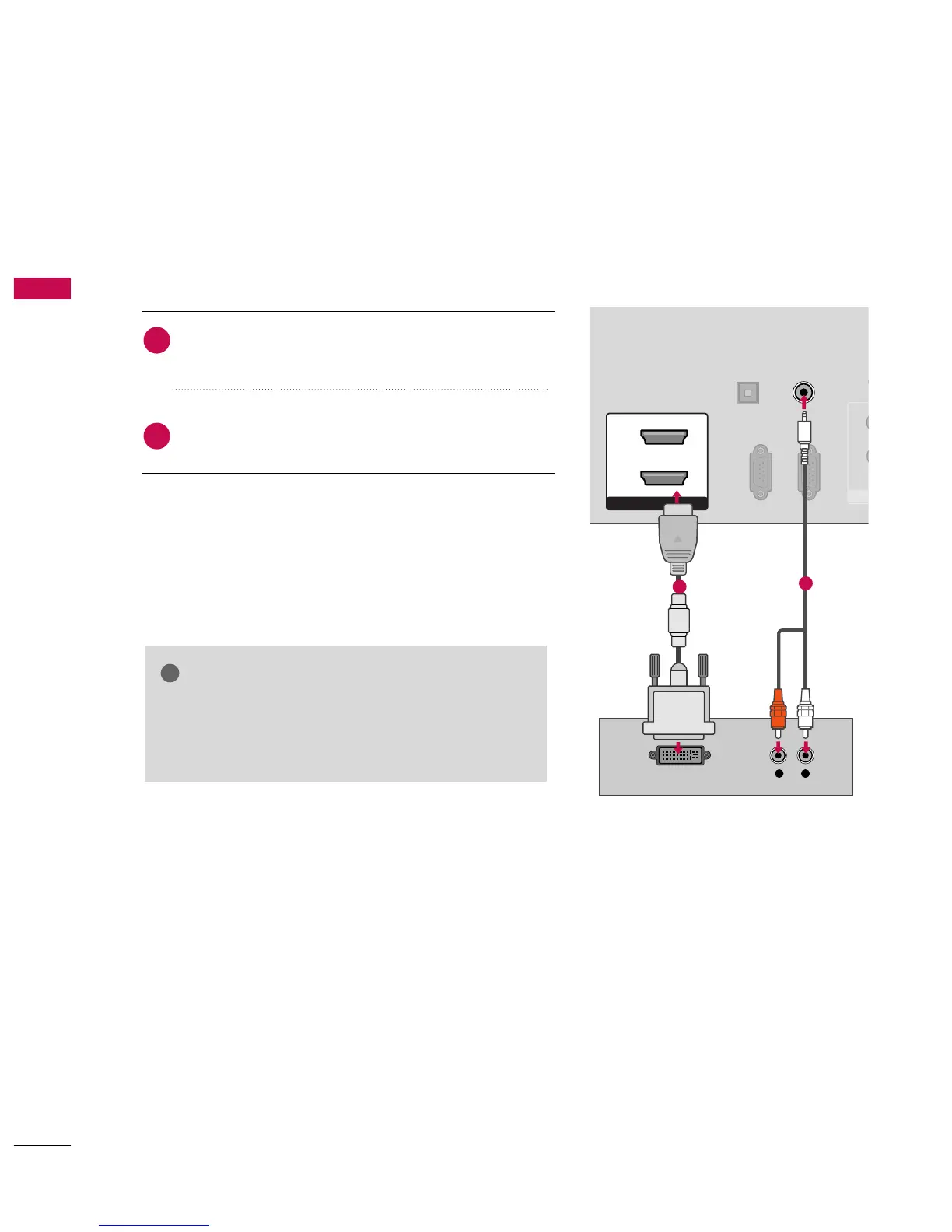

DVI to HDMI Connection
RGB IN (PC)
RS-232C IN
(CONTROL & SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
HDMI/DVI IN
2
1
LR
DVI-DTV OUTPUT
R
CO
1
2
1
2
GG
A DVI to HDMI cable or adapter is required for this
connection. DVI doesn't support audio, so a separate
audio connection is necessary.
NOTE
!
Connect the DVI output of the digital set-top box to the
HHDDMMII//DDVVII IINN 11
,
22
or
33
jack on the TV.
Connect the audio output of the digital set-top box to
the
AAUUDDIIOO IINN ((RRGGBB//DDVVII))
jack on the TV.
1. How to connect
2. How to use
■
Tu r n o n t h e d i g i ta l s et- to p b ox .
(
Refer to the owner’s man-
ual for the digital set-top box.
)
■
Select the
HHDDMMII11
,
22
or
33
input source on the TV using
the
IINNPPUUTT
button on the remote control.
2
1

LG 50PJ550 Specifications

General

Depth	55.3 mm
Height	724.3 mm
Weight	28600 g
Pixel pitch	0 mm
Audio system	Dolby Digital, SRS TruSurround XT
PC in (D-Sub)	Yes
Product color	Black
Response time	0.001 ms
LED indicators	Stand-by
RMS rated power	20 W
Display diagonal	50 \
Depth (with stand)	309.7 mm
Display brightness	1500 cd/m²
Display resolution	1366 x 768 pixels
Power requirements	100 - 240V AC, 50/60Hz
Width (with stand)	1171.4 mm
Height (with stand)	786.2 mm
High frequency rate	600 Hz
Weight (with stand)	31000 g
SCART ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Video formats supported	MPEG4
Contrast ratio (dynamic)	3000000:1
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.1 W
Power consumption (typical)	184 W
