EXTERNAL EQUIPMENT SETUP
22
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

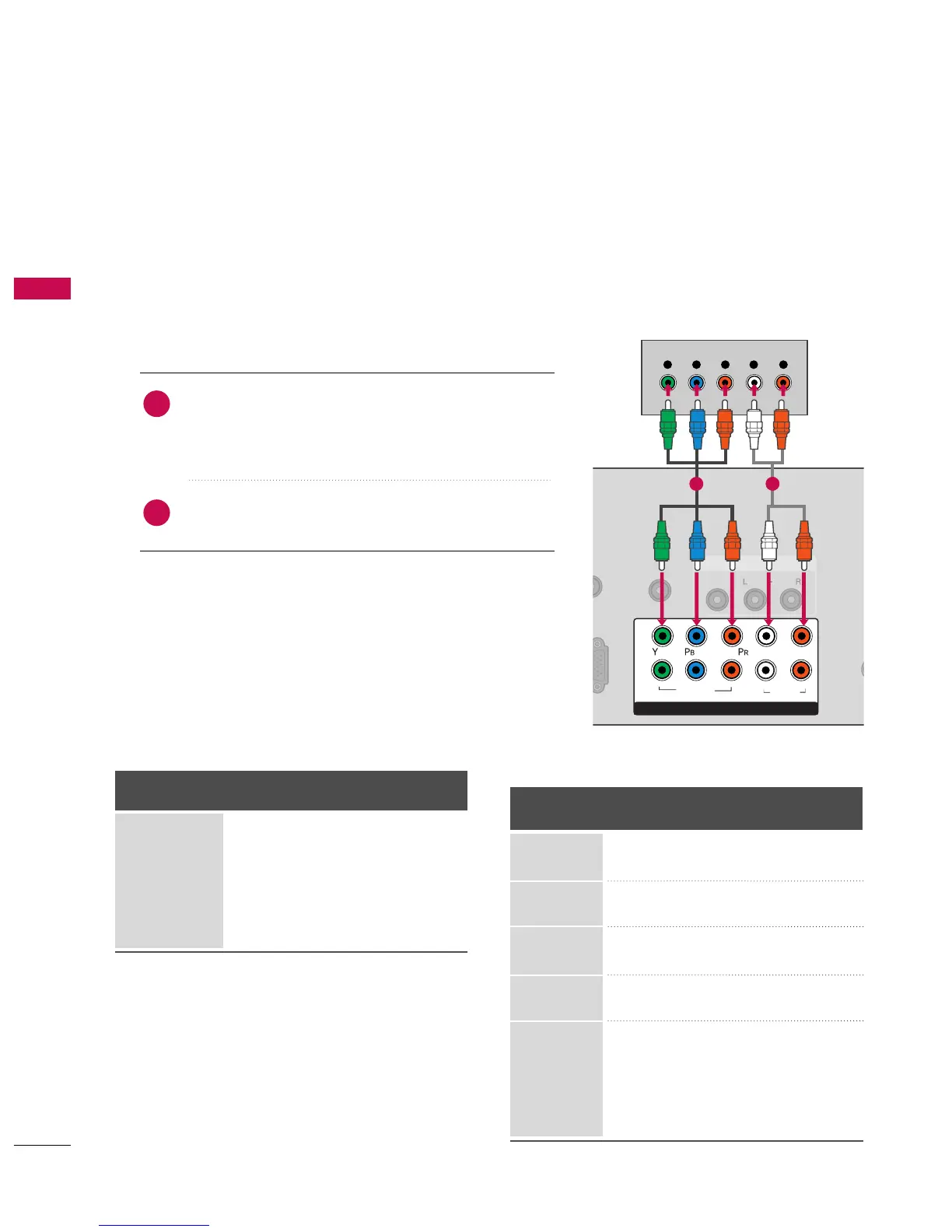

Component Connection
1. How to connect
Connect the video outputs
(
Y, PB, PR
)
of the digital set-
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11
jacks on
the TV. Match the jack colors (Y = green, P
B = blue, and
PR = red).
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11
jacks on the TV.
2
1
2. How to use
■
Tu r n o n t h e d i g ita l s e t- to p b ox .
(
Refer to the owner’s manual for the digital set-top box. operation
)
■
Select the
CCoommppoonneenntt11
input source on the TV using the
IINNPPUUTT
button on the remote control.
■
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select the
CCoommppoonneenntt22
input source on the TV.
■
To p r e v e n t t h e e q u i p m e n t d a m a g e , n e v e r p l u g i n a n y p o w e r c o r d s u n t i l y o u h a v e f i n i s h e d c o n n e c t i n g a l l e q u i p m e n t .
■
Image shown may differ from your TV.
ANT
CA
O IN
/DVI)
REMOTE
CONTROL IN
AUDIO
VIDEO
/MONO
AV IN 1
COMPONENT IN
1
2
VIDEO
AUDIO
L
R
Y L RPB PR
1
2
Y, CB/PB, CR/PR
Supported Resolutions
Horizontal Vertical
Frequency
(
KHz
)
Frequency
(
Hz
)
15 . 73 59 . 9 4
15 . 73 6 0 . 0 0
31 . 47 59 . 9 4
31 . 47 6 0 . 0 0
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
27.00 24.00
33.75 30.00
67.432 59.939
67.50 60.00
26.97 23.94
33.71 29.97
Resolution
720x480i
720x480p
128 0 x 72 0 p
19 2 0 x 108 0 i
19 2 0 x 10 8 0 p
Signal
480i
480p
720p
108 0 i
108 0 p
Component
Yes
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
Yes

LG 50PJ550 Specifications

General

Depth	55.3 mm
Height	724.3 mm
Weight	28600 g
Pixel pitch	0 mm
Audio system	Dolby Digital, SRS TruSurround XT
PC in (D-Sub)	Yes
Product color	Black
Response time	0.001 ms
LED indicators	Stand-by
RMS rated power	20 W
Display diagonal	50 \
Depth (with stand)	309.7 mm
Display brightness	1500 cd/m²
Display resolution	1366 x 768 pixels
Power requirements	100 - 240V AC, 50/60Hz
Width (with stand)	1171.4 mm
Height (with stand)	786.2 mm
High frequency rate	600 Hz
Weight (with stand)	31000 g
SCART ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Video formats supported	MPEG4
Contrast ratio (dynamic)	3000000:1
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.1 W
Power consumption (typical)	184 W
