LG 50PS60 - X-Drive Boards

103
Fall 2009 1080P Plasma 50PS60
TCP
Attached directly
to Flexible cable
C
o
n
n
e
c
t
o
r
Frame
X_B/D
Front panel Horizontal Address
Rear panel Vertical Address
TCP (Tape Carrier Package)
TCP (Tape Carrier Package)
Control Board
Back side of TCP Ribbon
TCP
Taped Carrier
Package
F
l
e
x
i
b
l
e
Ca
b
l
e
Y-SUS Board
Va
Logic
C
o
nne
c
t
o
r
X Drive Board
Heat Sink
128 lines 128 lines
256 total lines

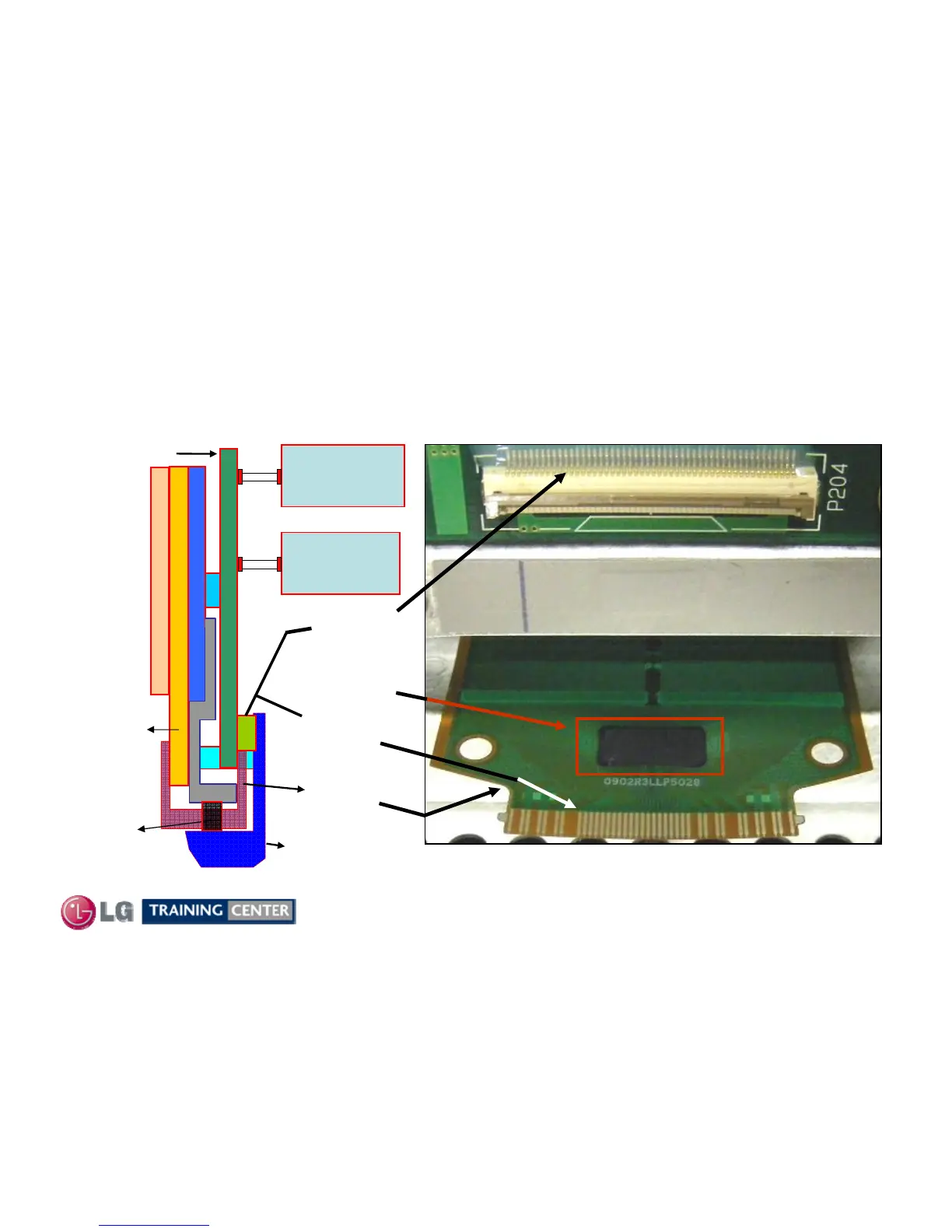

This shows the layout of the bottom ribbon cables connecting to the Panel’s Vertical electrodes,
(Address Bus). Note that each ribbon cable has a solid state device called a TCP attached.
256 Vertical
Electrodes
Chocolate
