Fall 2009 1080P Plasma 50PS60

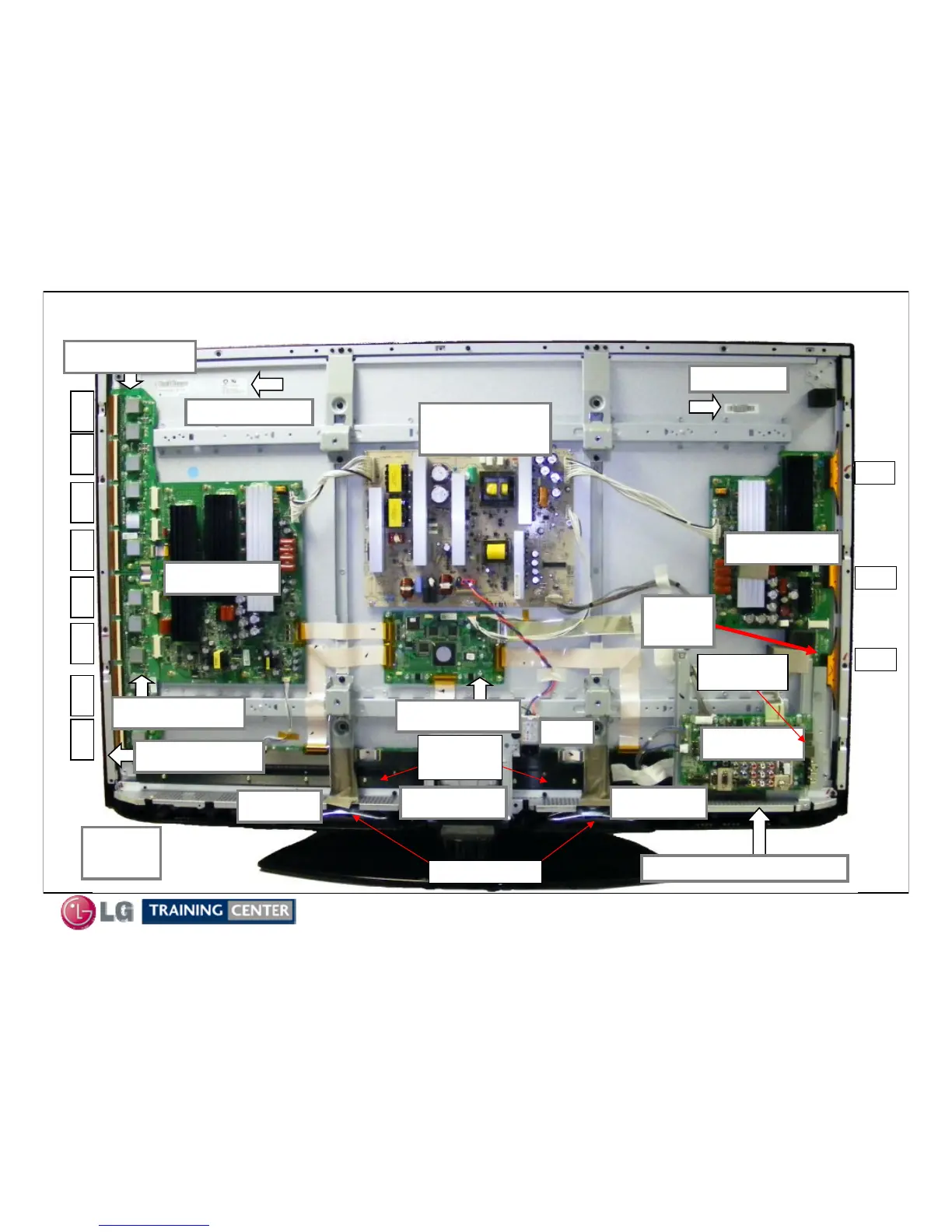

Circuit Board Layout
Circuit Board Layout
Y SUS PWB
Z-SUS PWB
Right “X”
Left “X”
Main PWB
Power Supply
(SMPS) PWB
FPC
FPC
Power
Button
FPC
FPC
AC In
Side Input
(part of main)
FPC
FPC FPC
FPC FPC
FPC
FPC
Center “X”
Z-SUB
PWB
Y Drive Upper
Panel Voltage Label
Control PWB
Panel ID Label
Conductive Tape Under Main PWB
TCP
Heat Sink
Control Keys
Y Drive Lower
Invisible Speakers
