Fall 2009 1080P Plasma 50PS60
Y
Y
-
-

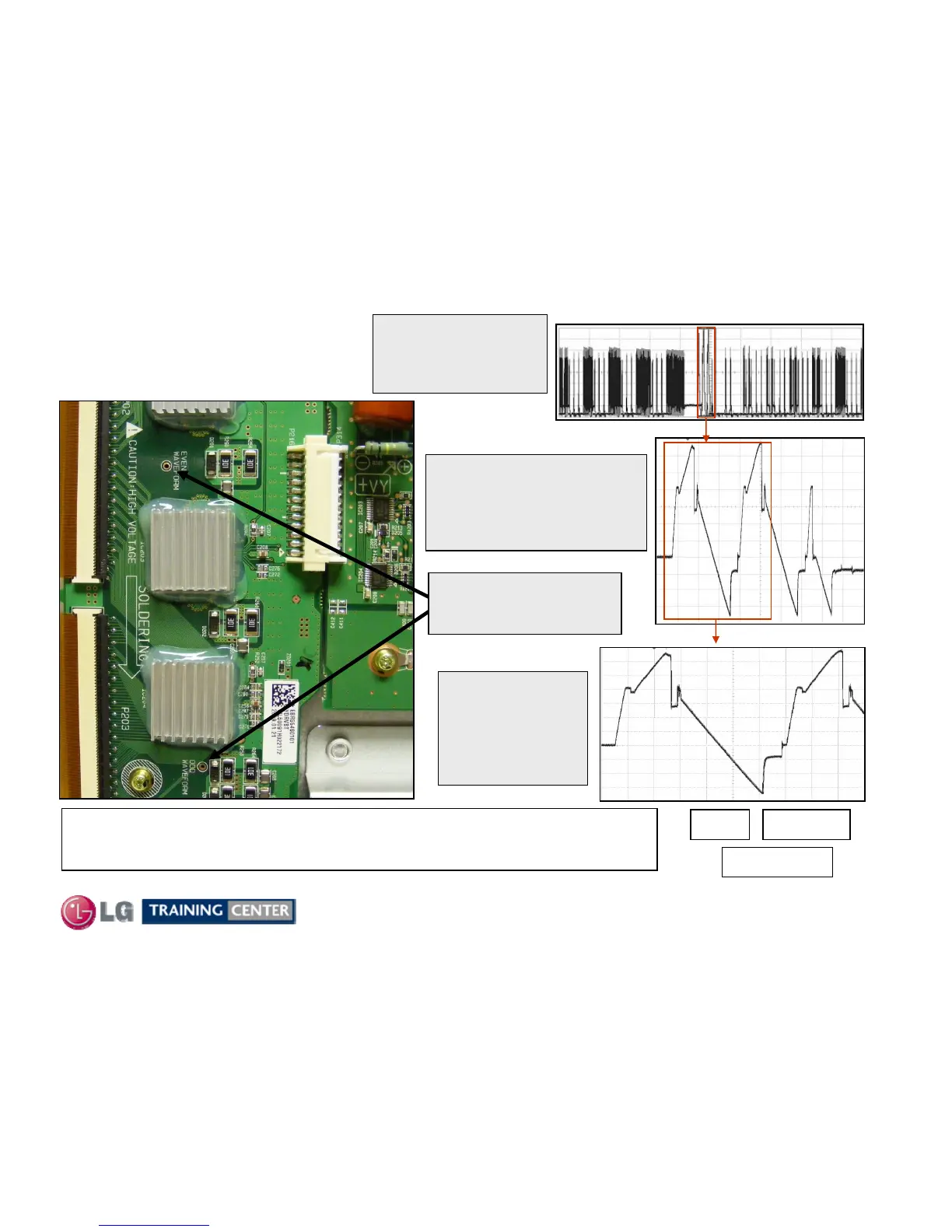

Drive Signal Test Points
Drive Signal Test Points
c
Overall signal
observed 2mS/div
d
Highlighted signal from
waveform above observed
100uSec/div
e
Highlighted signal
from waveforms
above observed
50uS/div
Either test point is OK to use.
NOTE: The Waveform Test Points are fragile. If by accident the land is torn and the
run lifted, make sure there are no lines left to right in the screen picture.
50uS
510V p/p
Y-Drive PWB Test Points
(Middle of bottom
Y-Drive Board)
78V RMS
