LG 50PS60 User Manual

60
Fall 2009 1080P Plasma 50PS60

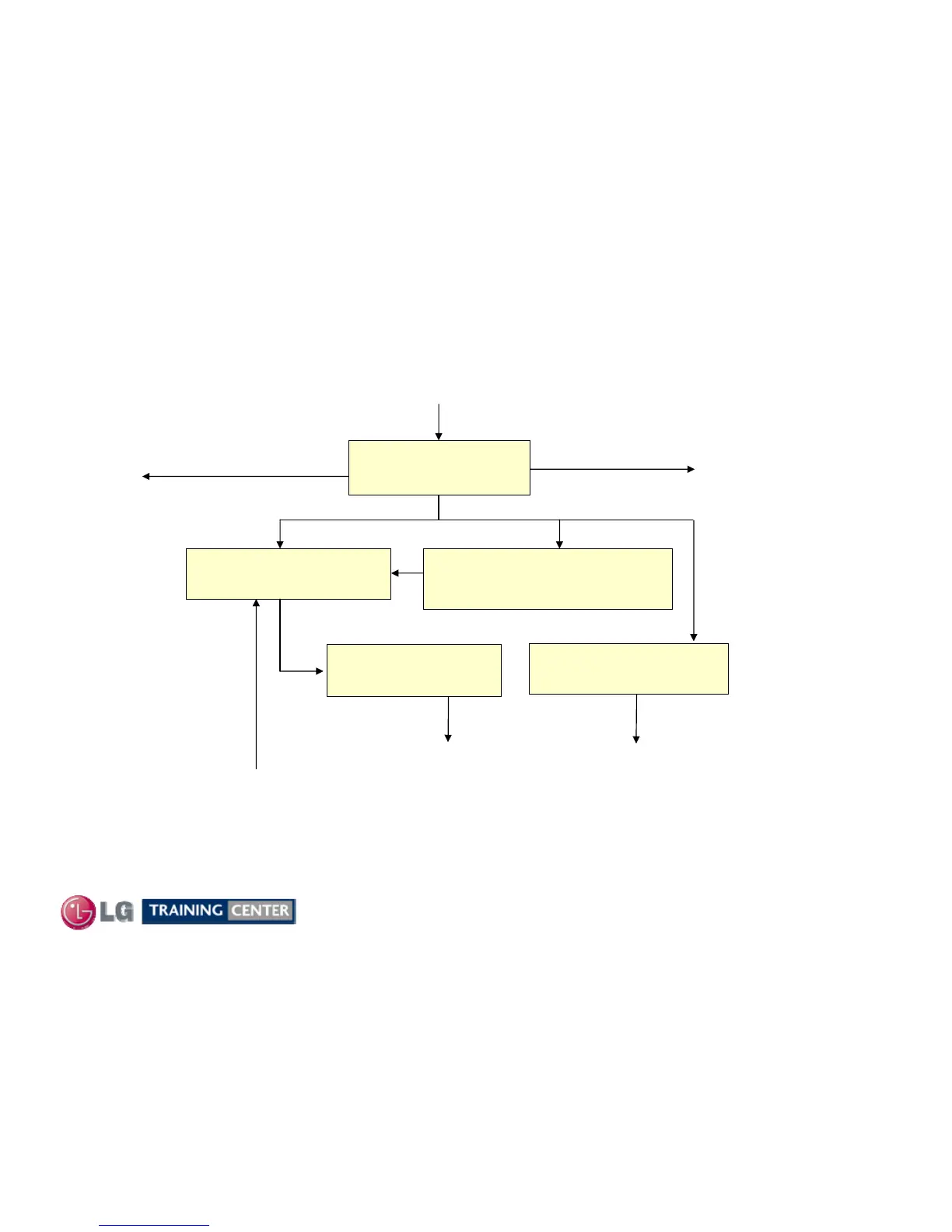

Y SUS Block Diagram
Y SUS Block Diagram
Circuits generate
Y Sustain Waveform
Distributes M5V and 15V to Control Board
15V Generated by on board SMPS
Distribute VA to X Boards
Receive M5V, Va, Vs
from SMPS
FETs amplify Sustain
Waveform
Generates Floating Ground
5V by on board SMPS
To Y Drive Boards
Generates Vsc and -Vy
from Vs or M5V by internal SMPS
Also controls Set Up/Down via adj.
Logic signals needed to generate
drive waveform
M5V, Vs, Va from SPS
Y Scan Signal to Y Drive Board
