ENGLISH
22
MAKING CONNECTIONS
MAKING CONNECTIONS
y
Image shown may differ from your TV.
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems,
USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to
the manual provided with each device.

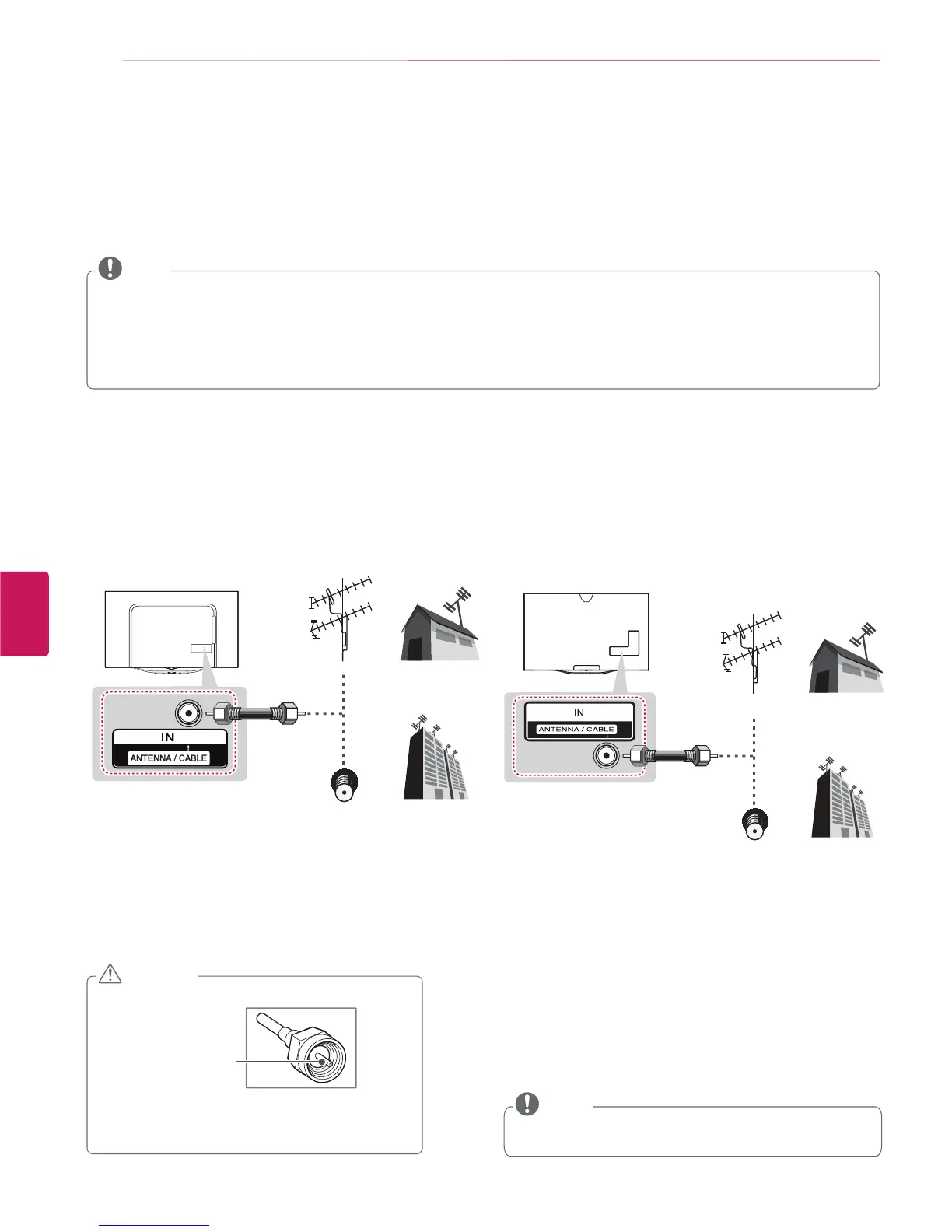

Connecting to an Antenna or Cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items
and a RF cable is optional.
y
Make sure not to bend the copper wire of the RF
cable.
Copper wire
y
Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
CAUTION
y
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
y
The external device connections shown may differ slightly from illustrations in this manual.
y
Connect external devices to the TV regardless of the order of the TV port.
y
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
y
Refer to the external equipment’s manual for operating instructions.
NOTE
y
Use a signal splitter to use more than 2 TVs.
y
DTV Audio Supported Codec: MPEG, Dolby Digital.
NOTE
(*Not Provided)
Coaxial (75Ω)
Antenna
Antena VHF
Antena UHF
Terminal
(*Not Provided)
Coaxial (75Ω)
Antenna
Antena VHF
Antena UHF
Terminal
(For 55EC9300) (For 77EC9800)
