LG 55EG9100 Service Manual

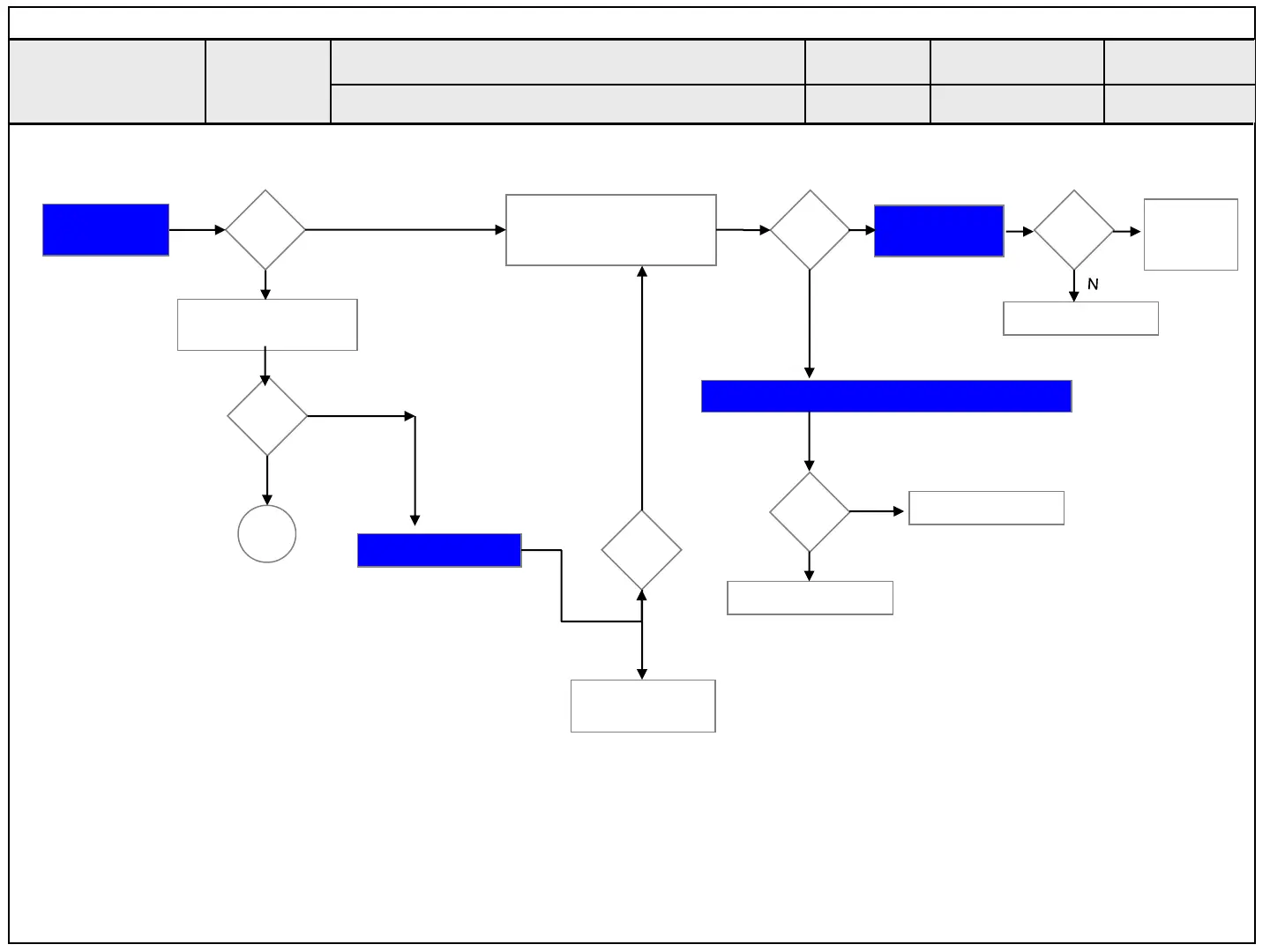

B. Power error
No power
Power LED
On?
Y
N
DC Power on
by pressing Power Key
On Remote control
Y
N
Normal
operation?
Check Power
On ‘”High”
Check Power cord
was inserted properly
Check
Logo LED
Replace
Power
B/D
Measure voltage of each output of Power B/D
N
Y
Normal
voltage?
Replace Main B/D
Y
OK?
Replace Main B/D
N
Y
Normal?
Check ST-BY 3.5V
Replace Power B/D
N
Y
Normal
voltage?
Replace Power
B/D
Y
☞A17
☞A18
☞A18
☞A18
Standard Repair Process
Established
date
Revised date
6/16
LCD TV
Error
symptom
6
. Stand-By: Red or Turn Off
. Operating: Turn Off
※
Close
Copyright © 2015 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 55EG9100 Specifications

General

Screen Type	oled
Tuner	digital
Screen Size	55.3 inches, 55 inches
HDR	no
Built-In Speakers	yes
Surround Sound	dolby digital, dts
Speakers Output	20 watts
USB Ports	3
RF Antenna	yes
Network	built-in wi-fi
Digital Optical Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
SmartTV	webos
Remote Control	magic
3D	yes
Power Consumption	99 kilowatt hours
Depth with Stand	8.2 inches
Height with Stand	29.9 inches
Width with Stand	48.2 inches
Net Weight with Stand	33.1 pounds
Depth without Stand	3.4 inches
Height without Stand	28.3 inches
Net Weight without Stand	28.2 pounds
