LG BD630 User Manual

Connecting 17
Connecting
2

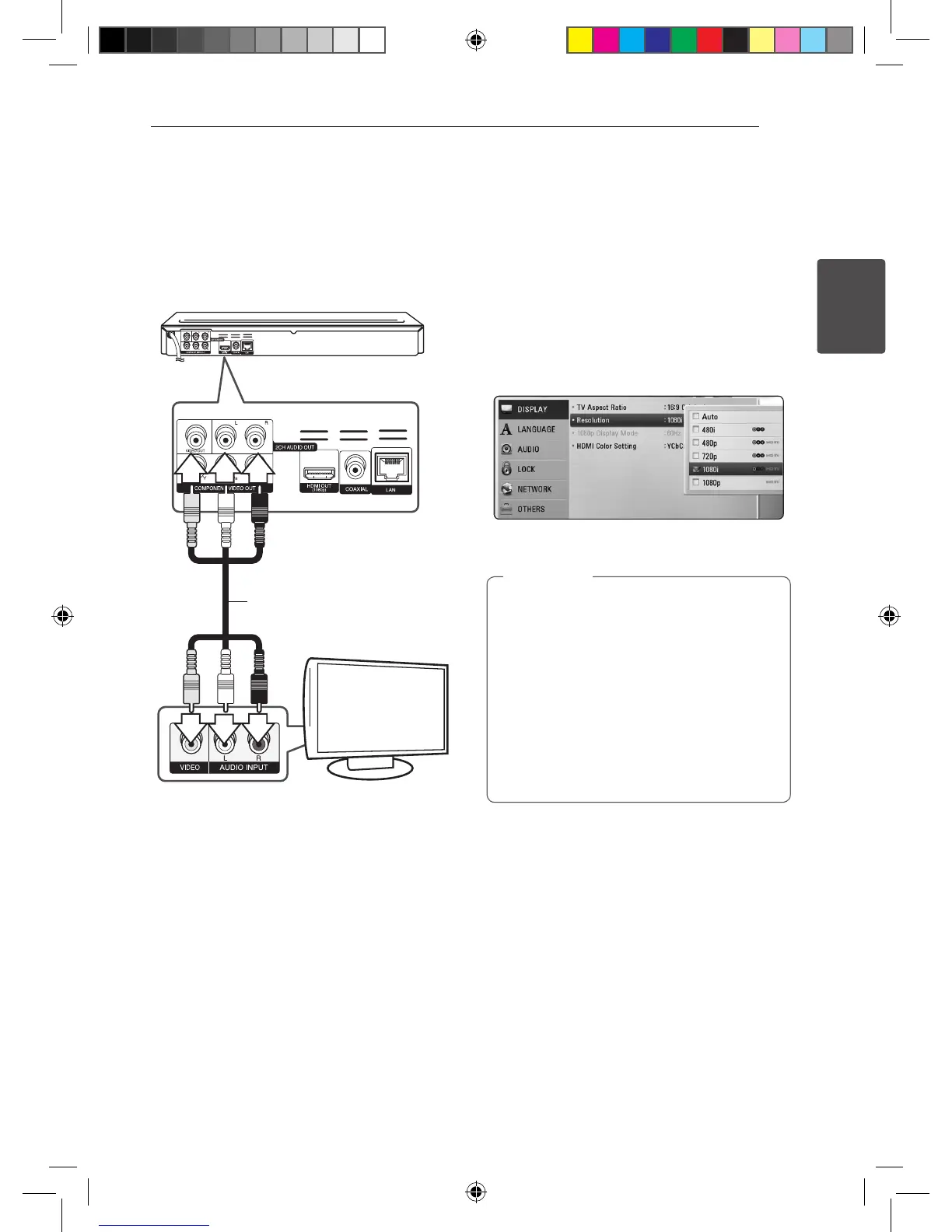

Video/Audio (Left/Right)
Connection
Connect the VIDEO OUT jack on the player to the
video in jack on the TV using a video cable. Connect
the left and right AUDIO OUT jacks of the player to
the audio left and right IN jacks on the TV using the
audio cables.
Rear of the unit
TV
Audio/ Video
cable
Resolution Setting
The player provides several output resolutions for
HDMI OUT and COMPONENT VIDEO OUT jacks. You
can change the resolution using [Setup] menu.
1. Press HOME (
n
).
2. Use
a/d
to select the [Setup] and press ENTER
(
b
). The [Setup] menu appears.
3. Use
w/s
to select [DISPLAY] option then press
d
to move to the second level.
4. Use
w/s
to select the [Resolution] option then
press ENTER (
b
) to move to the third level.
5. Use
w/s
to select the desired resolution then
press ENTER (
b
) to conrm your selection.
y
If your TV does not accept the resolution
you have set on the player, you can set
resolution to 480p as follows:
1. Press
B
to open the disc tray.
2 Press
Z
(STOP) for more than 5 seconds.
y
Since several factors aect the resolution of
video output, see “Video Output Resolution”
on page 52.
y
When you set the HDMI Resolution, over
720p is not outputted to Composit Video.
,
Note
BD651-N_US_NO_DIVX black.indd 17 2011-01-21 �� 5:04:56

LG BD630 Specifications

General

3D	No
HDMI	Yes
Weight	1800 g
Device type	Blu-Ray player
Audio system	Dolby Digital/Digital Plus/TrueHD
Product color	Black
Package weight	2630 g
AC input voltage	120 V
Playback formats	MPEG2, MPEG4 AVC, HP@L4.1, SMPTE VC1, AP@L3, AVCHD, MKV
AC input frequency	60 Hz
Dimensions (WxDxH)	429.26 x 190.5 x 45.72 mm
Disc types supported	BD-R, BD-RE, CD-R, CD-RW, DVD, DVD-R, DVD-RW
USB 2.0 ports quantity	1
Power consumption (standby)	0.5 W
Power consumption (typical)	13 W
Signal-to-Noise Ratio (SNR)	100 dB
