1. Place the projector on a sturdy and horizontal surface with the PC or AV source.
2. Place the projector with the desired distance from the screen. The distance between the projector and the screen
determines the actual size of the image.
3. Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right angle,
the screen image will be crooked. If this is so then the keystone adjustment may correct this (Refer to page 27.).
4. Connect the cables of the projector to a wall power socket and other connected sources.

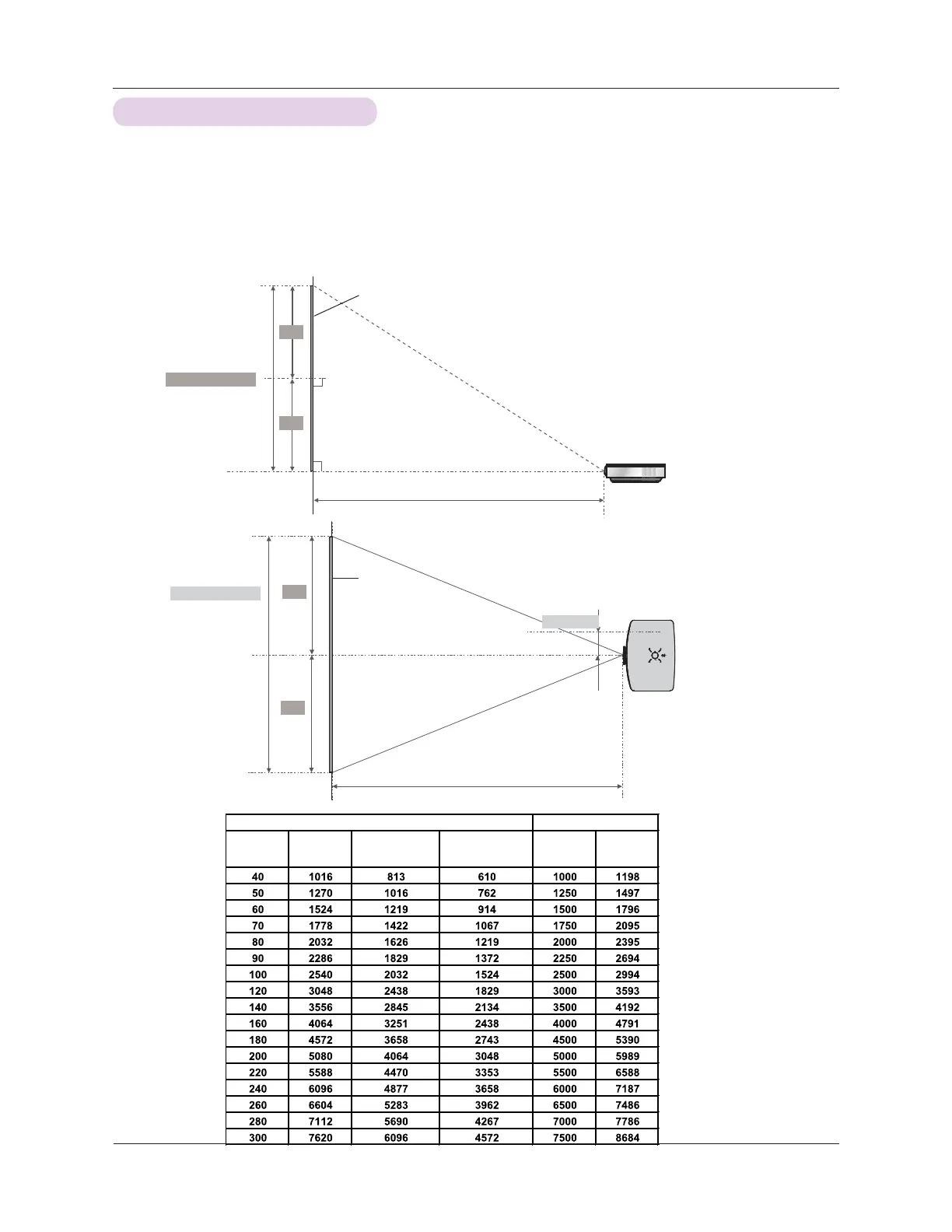

projection distance based on the picture format
Projection distance (D)
Projection off-set ratio:100%
Projection distance (D)
Basic Operation of the Projector
* The longest/shortest distance
show status when adjusted by
the zoom function.
Screen
Screen height (X)
Screen
Screen Width (Y)
100 mm
X/2
X/2
Y/2
Y/2
4 : 3 Scale
Projection Distance
Diagonal Size
(inch)
Diagonal Size
(mm)
Horizontal Size
(mm)
Vertical Size
(mm)
Wide Distance
(mm)
Tele Distance
(mm)
