Connecting to
speakers
Attaching the speakers to the
unit

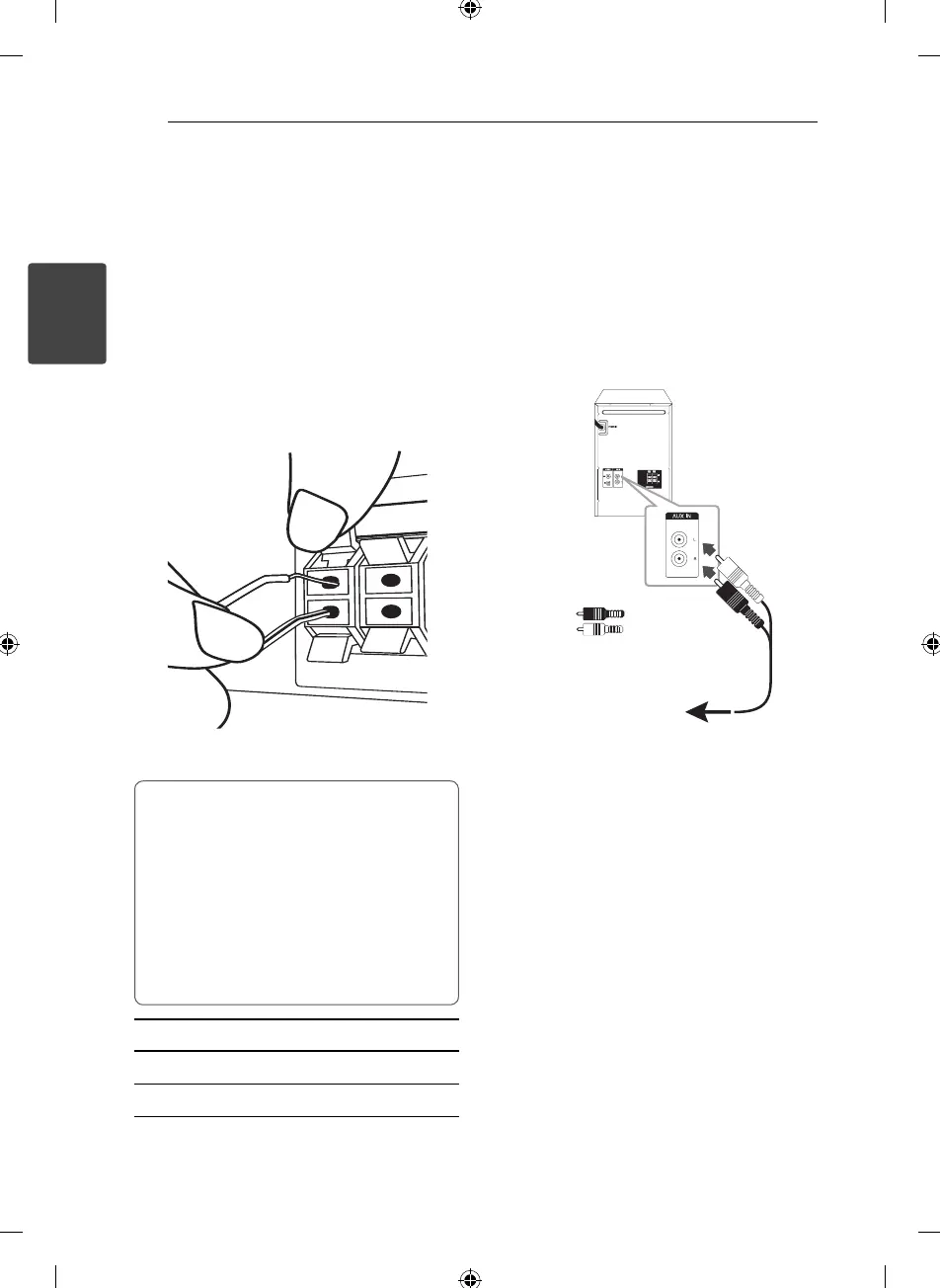

To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hall for plentiful bass
sound on speaker cabinet (enclosure)
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
,
Note
Color Speaker
Red Front
White Front
Optional Equipment
Connection
AUX IN Connection
Connect an output of auxiliary device(Camcoder,
TV, Player, etc) to the AUX IN(L/R) connector.
If your device has only one output for audio(mono),
connect it to the left (white) audio jack on the unit.
To the audio output jacks
of your component
(TV, VCR, etc.)
Red
White
