3-2

ONE POINT REPAIR GUIDE

1. NO POWER

If the unit doesn’t work by no power problem, repair the set according to the following guide.

1-1. FUSE/ BRIDGE DIODE/ FET

1-1-1. Solution

Please check and replace F901, BD901, BD902, Q902~Q905 on SMPS board.

1-1-2. How to troubleshoot (Countermeasure)

1) Check if the fuse F901 is open or short-circuit.

2) Check if the bridge diode BD901 or BD902 is short-circuit by over current with a digital multimeter.

3) Check if the FET Q902 ~ Q905 is normal or short.

 If it is short condition, it’s destroyed. Replace it with a new one.

(Please replace 4 FET at the same time although several FET is OK)

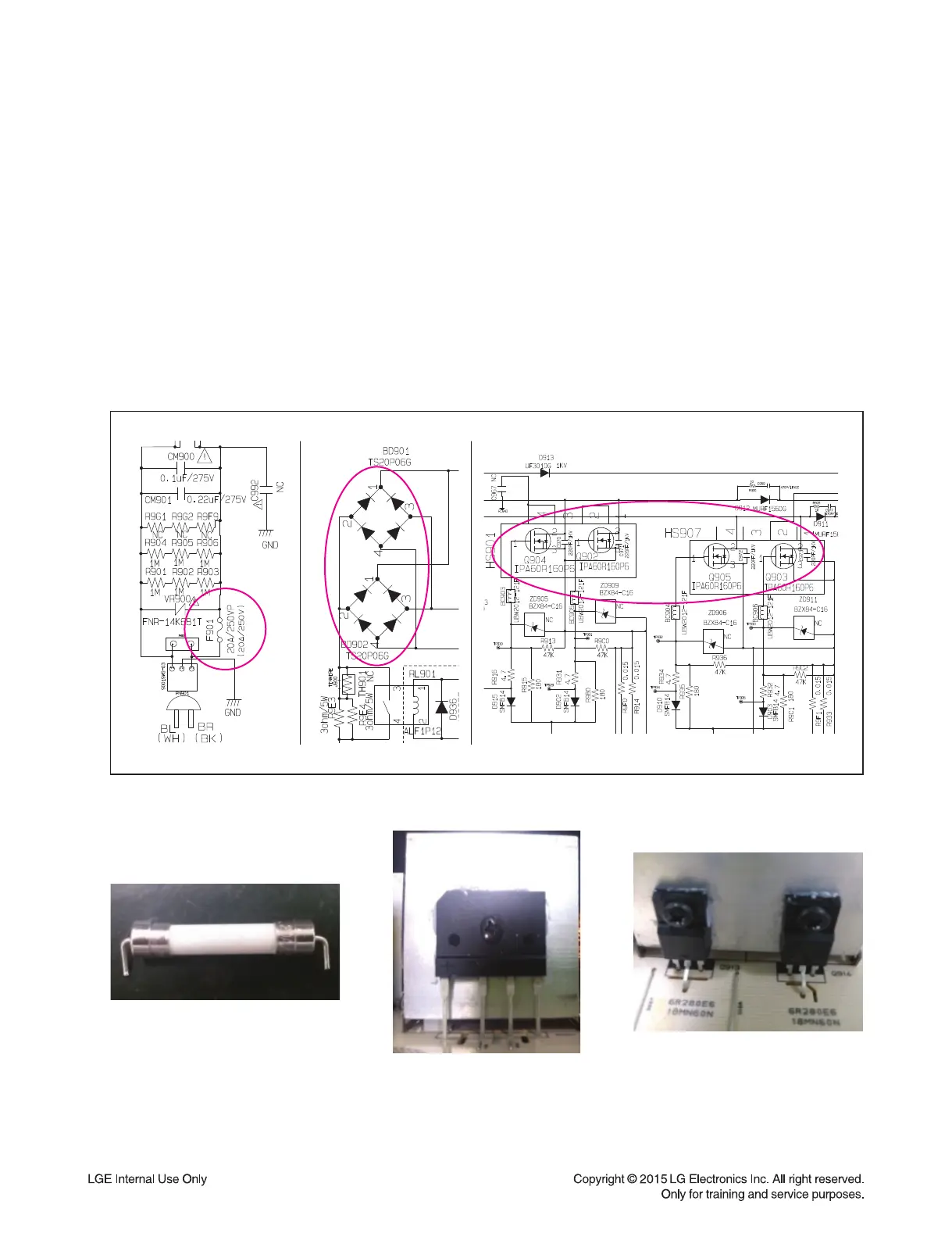

1-1-3. Service hint (Any picture / Remark)

< F901 >

If F901 is not short-circuit,

replace it with a same

speciﬁ cations one.

< Q902 ~ Q905 >

If Q902 ~Q905 is short (pin1-3),

replace it with a new one.

<BD901, BD902 >

If BD901, BD902 is short-circuit,

replace it with a new one.
