ONE POINT REPAIR GUIDE

NO OPERATION OF MD

When no sound output in the CD function, you can not listen to music reading data from a CD

disc if the servo motors in MD don’t work. This step is for checking the sled motor among them.

9-2. SLED MOTOR

9-2-1. Solution

Replace IC401 or IC400 on MAIN board.

9-2-2. How to troubleshoot (Countermeasure)

1) Check the SLDO signal from pin23 of IC401.

 If no signal, check 3.3 V (RF) and X400.

2) Check the SLED+ & SLED- from IC400 to CN401 for driving SPINDLE motor. It is about 2.9 Vp-p.

 If no signal, check +1.8 V and +5 V for IC400.

3) Check if the FFC cable is solidly connected between CN401 and MD.

4) Check the MD.

 If the sled motor is sort-circuit or has any trouble, it can not move the pickup module.

Please check the function after changing another MD.

9-2-3. Service hint (Any picture / Remark)

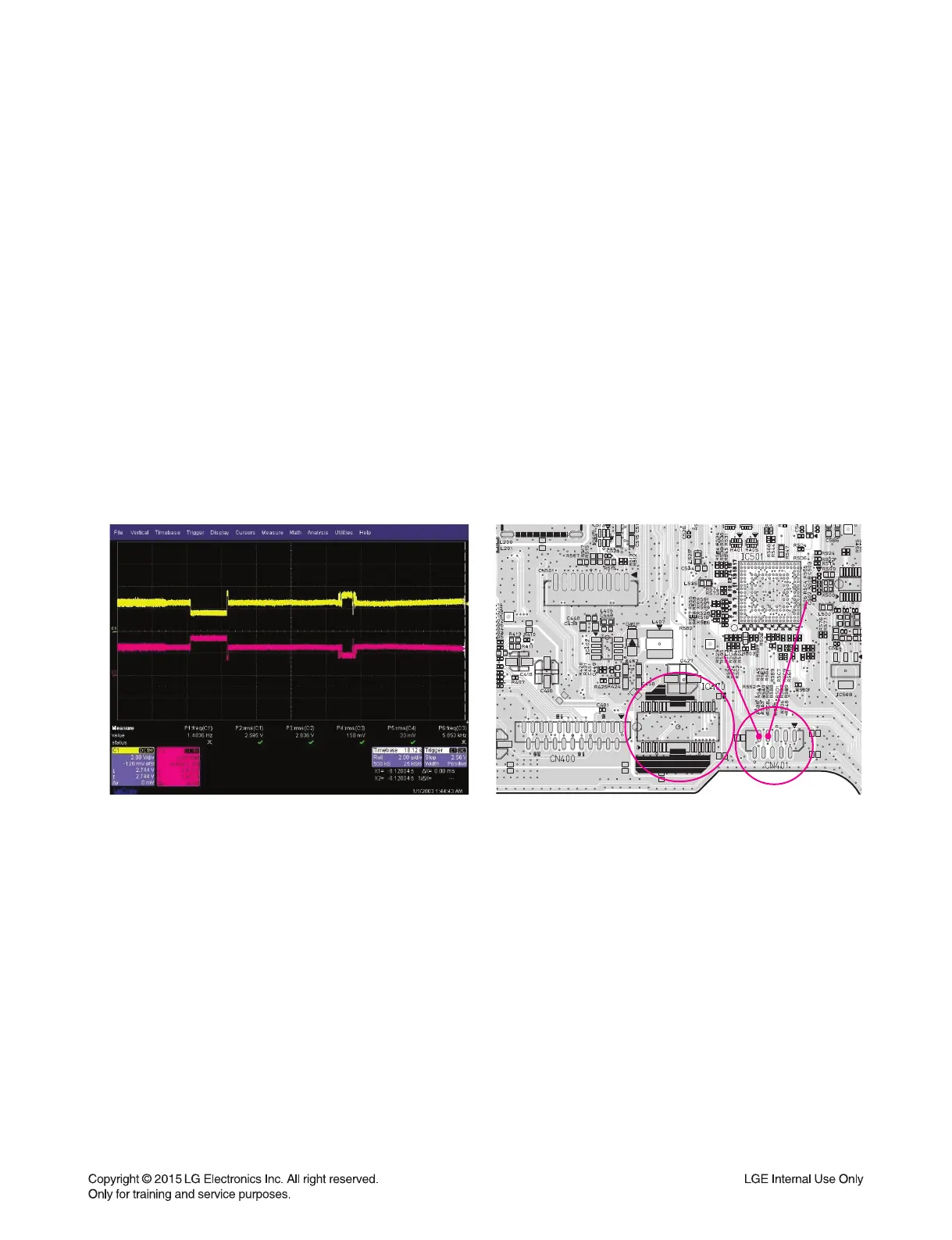

< Waveform of SLED- & SLED+

for driving SLED motor >

zsR

zsT

< MAIN board top view >

SL-

pin9 of CN401

SL+

pin7 of CN401

IC400
