MAKING CONNECTIONS
MAKING
CONNECTIONS
This section on MAKING CONNEC-
TIONS mainly uses diagrams for the
EC93** models.
Connect various external devices to the
TV and switch input modes to select an
external device. For more information
on external device’s connection, refer to
the manual provided with each device.
Available external devices are: HD re-
ceivers, DVD players, VCRs, audio sys-
tems, USB storage devices, PC, gam-
ing devices, and other external devices.
NOTE
y
The external device connection
may differ from the model.
y
Connect external devices to the TV
regardless of the order of the TV port.
y
If you record a TV program on a
DVD recorder or VCR, make sure
to connect the TV signal input cable
to the TV through a DVD recorder
or VCR. For more information
of recording, refer to the manual
provided with the connected device.
y
Refer to the external equipment’s
manual for operating instructions.
y
If you connect a gaming device
to the TV, use the cable supplied
with the gaming device.
y
In PC mode, there may be noise
associated with the resolution,
vertical pattern, contrast or
brightness. If noise is present,
change the PC output to another
resolution, change the refresh rate to
another rate or adjust the brightness
and contrast on the PICTURE menu
until the picture is clear.

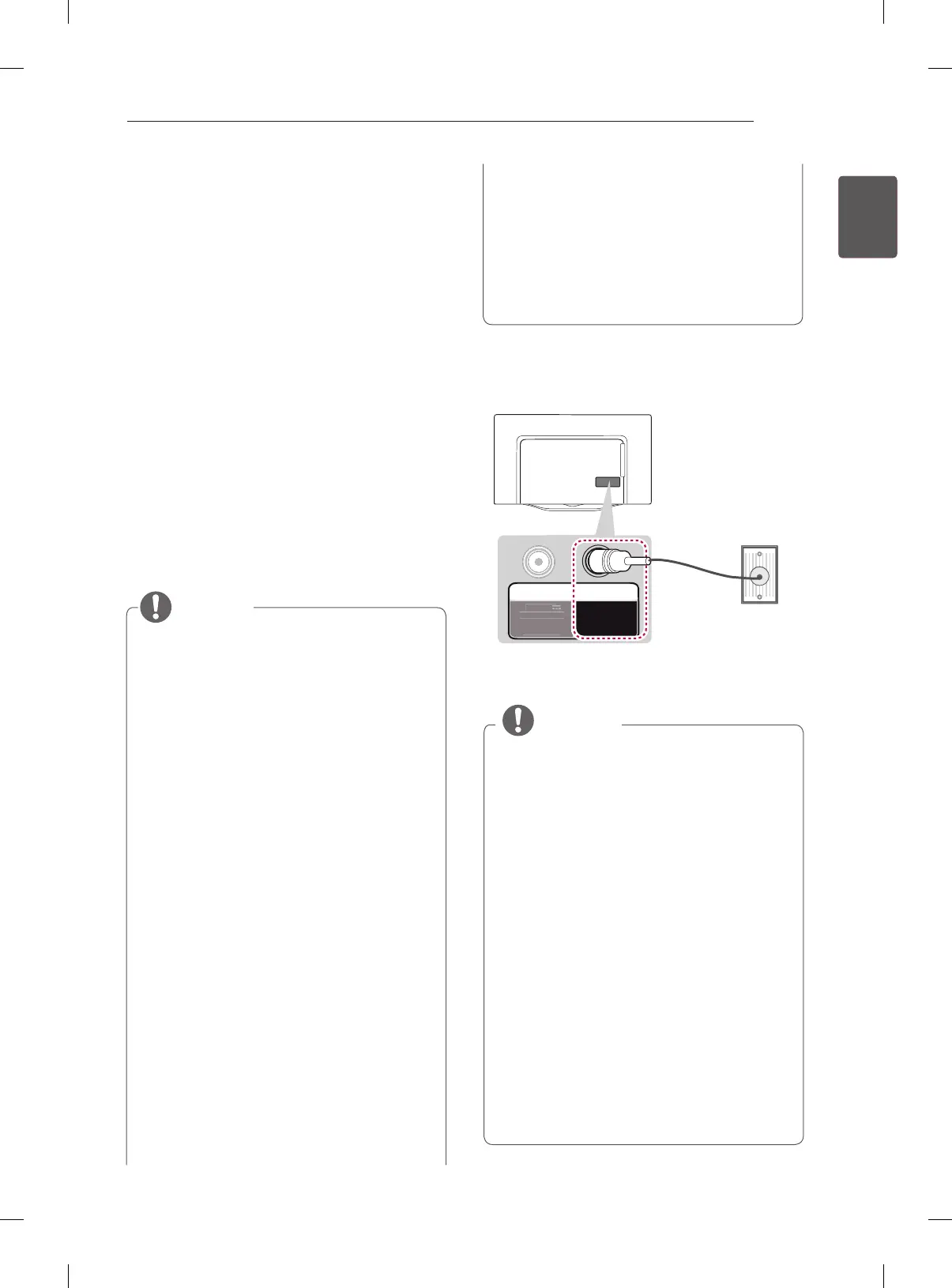

Antenna Connection
IN
ANTENNA/
CABLE
13/18V
700
mA Ma
x
LNB IN
S
atellit
e
Wall
Antenna
Socket
(*Not
Provided)
Connect the TV to a wall antenna
socket with an RF cable (75 Ω).
NOTE
y
Use a signal splitter to use more
than 2 TVs.
y
If the image quality is poor, install
a signal amplifier properly to
improve the image quality.
y
If the image quality is poor with
an antenna connected, try to
realign the antenna in the correct
direction.
y
An antenna cable and converter
are not provided.
y
Supported DTV Audio: MPEG,
Dolby Digital, Dolby Digital Plus,
HE-AAC
y
This TV cannot receive ULTRA
HD (3840 x 2160 pixels)
broadcasts directly because the
related standards have not been
confirmed. (Only EC97**, EC98**)
y
In PC mode, some resolution
settings may not work properly
depending on the graphics card.
y
If ULTRA HD content is played via
PC, the video or audio may have
disruptions intermittently depending
on your PC’s performance.
