MAKING CONNECTIONS

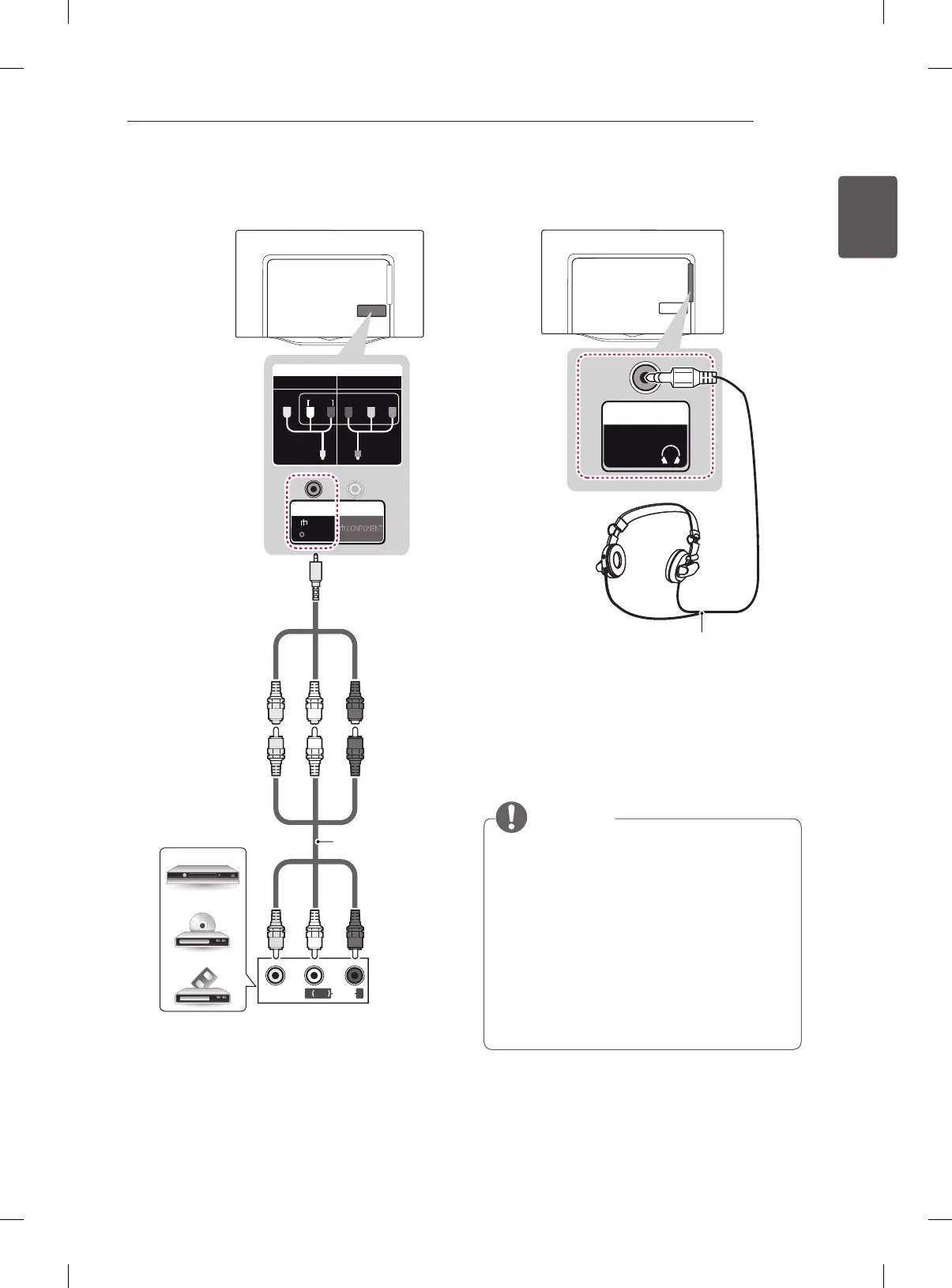

Composite Connection
IN
AV2
( Audio in)
IN
COMPONENT
YP B AUDIO
AV2
P R VIDEO
VIDEO
MONO
( )
AUDIO
LR
RED
RED
RED
WHITE
WHITE
WHITE
YELLOW
YELLOW
YELLOW
YELLOW
(Use the composite
gender cable provided.)
(*Not Provided)
DVD / Blu-Ray /
HD Cable Box / VCR
Transmits analogue video and audio
signals from an external device to the
TV. Connect the external device and
the TV with a composite gender cable
as shown.
Headphone Connection
(*Not Provided)
OUT
Ext.Speaker
/ H/P
Headphone
Transmits the headphone signal
from the TV to an external device.
Connect the external device and the
TV with the headphone as shown.
NOTE
y AUDIO menu items are disabled
when connecting a headphone.
y Optical Digital Audio Out is not
available when connecting a
headphone.
y Headphone impedance: 16 Ω
y Max audio output of headphone:
0.627 mW to 1.334 mW
y Headphone jack size: 0.35 cm
39
ENG
ENG
LISH
