9. DISASSEMBLY INSTRUCTIONS
󳢬 Disassemble and repair the parts after pulling out power cord from the outlet.

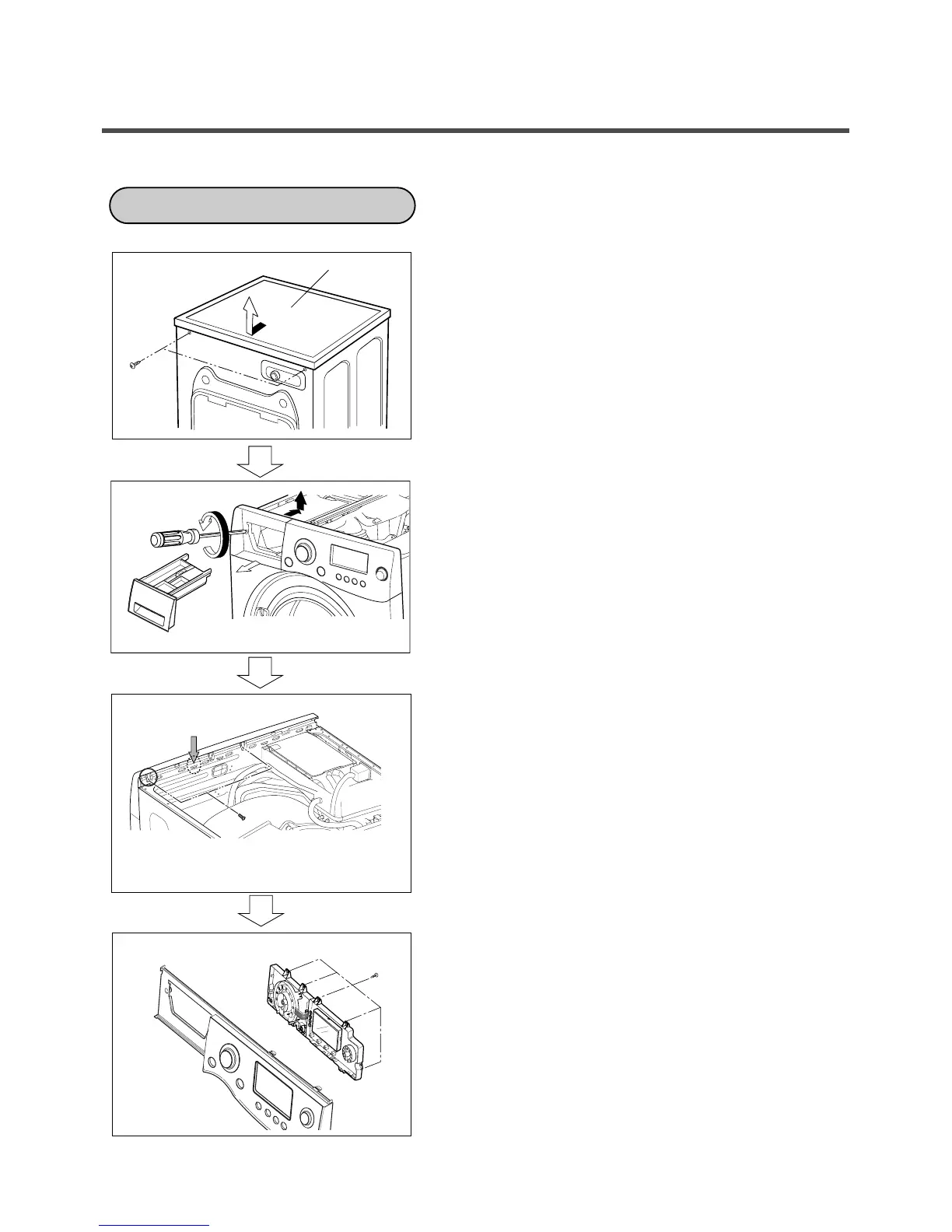

① Unscrew the screws on the top plate.
② The plate assembly(Top) is pulled back and
then upward to arrow direction.
③ The cover(Inner) is disassembled.
①
Pull out the drawer and unscrew 2 screws.
② Lift the side the Control Panel Assembly and pull it out
① Two screws is unscrewed.
② Push out PANEL ASSEMBLY,CONTROL after Push
the hook below.
① The PWB assembly(Display) is disconnected.
② When 7 screws are unscrewed on the PWB
insulator and the PWB assembly(Display) is
disassembled from the PWB insulator.
CONTROL PANEL
PLATE ASSEMBLY(TOP)
PWB ASSEMBLY
(DISPLAY)
DRAWER PANEL ASSEMBLY
PANEL ASSEMBLY, CONTROL
25
