LG LDF5545ST Service Bulletin Booklet

Service Bulletin
Product :
Bulletin # :
Release Date :
1. Symptoms and Causes
a) Symptoms: Noise is generated by roller, check the following items
and replace 2 rollers on the tub front.
b) Causes
• Subject : Inspection and repair guide about roller noise (27inch FL Dryer)
• Models with ECN and Serial Number Range in alphabetical or numerical order
<Repair information>
Subsidiary Model (ECN) Serial Number Range
LGEUS
LGECI
27inch FL Dryer ALL
• Extended Warranty (If extended for one year, then that is 2 years from date of purchase.)
This service is covered by an extended warranty . Yes No
- If Yes, Parts for ( ) years and Labor for ( ) years by LG.
- If No, Parts and labor are charged to the customer if outside warranty period.
• The warranty period, including any extended warranty above, starts from the original date of purchase.
• The information is available through “https://gsfsplus-america.lge.com” with a valid ID.
• The information is intended tor experienced technicians, not for customer .
• The information is subject to change or update without notice.

Clothes Dryer
DFZ201800021
Mar.26th.2018

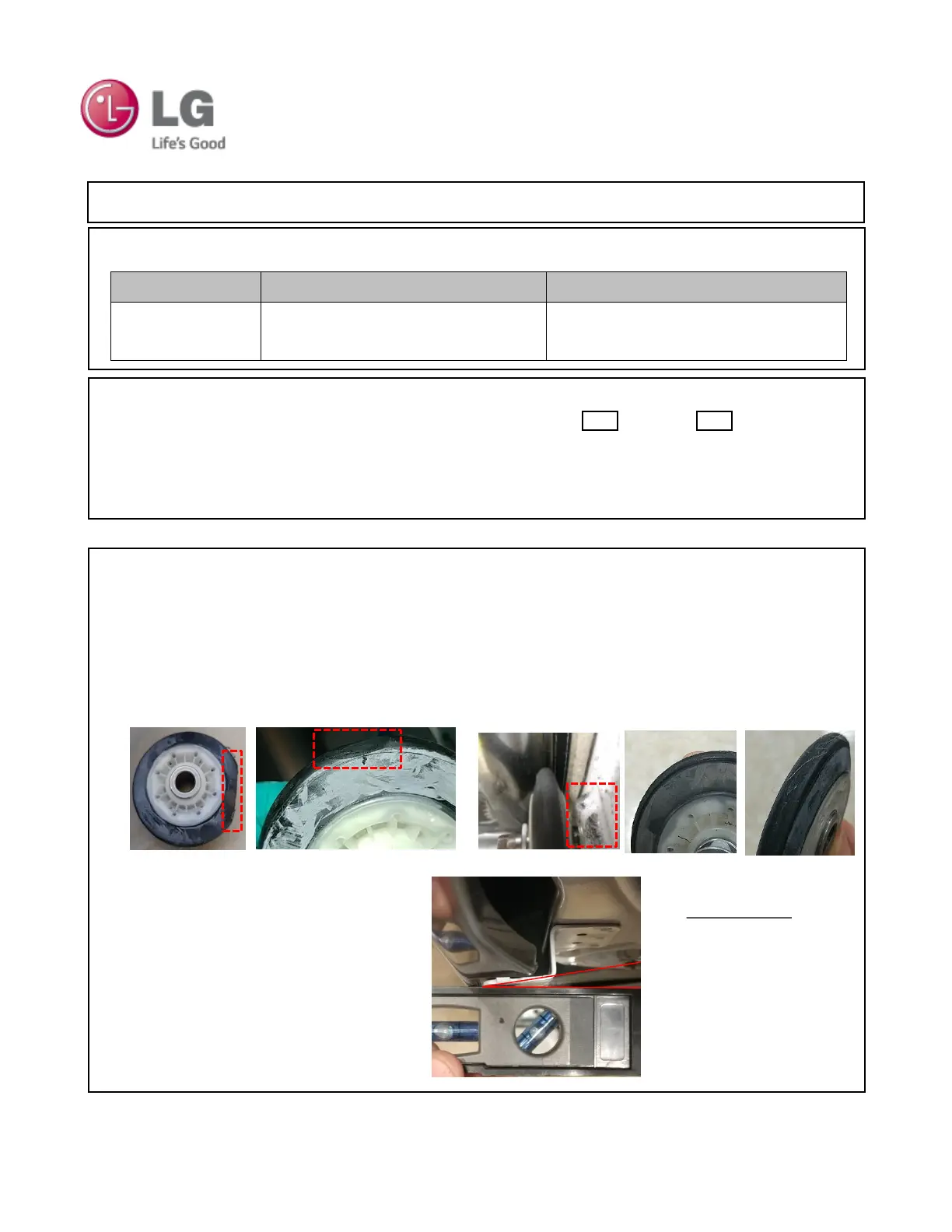

Traces of wear
Wear on the side of roller
1) Flat roller : The roller is restrained
and partially worn.
2) Wear : The roller touches the drum seal
and is damaged.
3) Bent Bracket of front Drum bulkhead.
: Bending of the bracket
assembled in the cabinet
※ Part Number
- Roller ASM
: 4581EL2002D
- Washer
: 4W50100F
19
