LG LDF5545ST Service Bulletin Booklet

Service Bulletin
Product :
Bulletin # :
Release Date :
•Subject: No Power due to Thermostat open
• Models with ECN and Serial Number Range in alphabetical or numerical order
<Repair information>
Country Model Serial Number
CANADA LRE3061ST 603MM~702MM
Country Model Serial Number
USA
LRE3061ST
603MM~702MM
LRE3061BD
• Extended Warranty
This service is covered by an extended warranty Yes No
- If Yes, Parts for ( ) years and Labor for ( ) years by LG.
- If No, Parts and labor are charged to the customer if outside warranty period.
• The warranty period, including any extended warranty above, starts from the original date of purchase.
• SVC Note (Special Claim Code or other administrative notes)
1. Symptoms and Causes
a) Symptoms: Thermostat open due to temperature rising
b) Causes: No gap between thermostat and exterior wall
2. Repair Instruction * Change thermostat location using bracket 4810W3G135A.
- Remove Thermostat 6930W1A003X and add the bracket 4810W3G135A with the screw
1TTL0402618.
• The information is available through “https://gsfsplus-america.lge.com” with a valid ID.
• The information is intended tor experienced technicians, not for customer .
• The information is subject to change or update without notice.
Applicable only with symptoms below: Applicable with every repair:
Electric Single Oven
CVZ201800013
2018.06.27

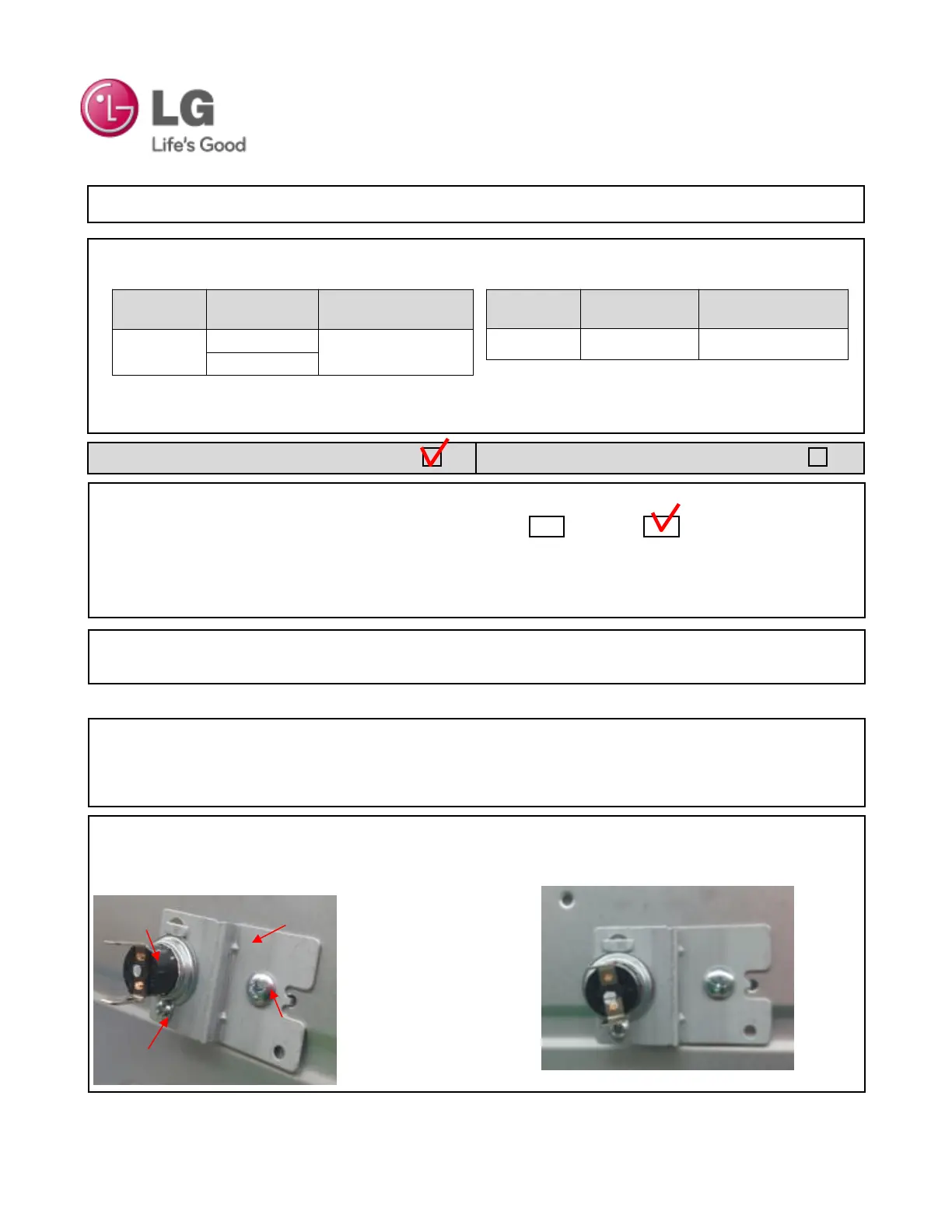

← Add to the thermostat:
1) the bracket and
2) The screw
as seen in picture.
Install again in
same position.
6930W1A003X
1TPL0302418
1TTL0402618
4810W3G135A
67
