LG LDF5545ST Service Bulletin Booklet

• Subject : [Gas Range] Not Heating : Bake/Broil Ignitor Failure
• Models with ECN and Serial Number Range in alphabetical or numerical order
<Repair information>
Country Model (ECN) Serial Number Range
USA LRG3061XX 703MMxxxxx ~ 711MMxxxxx
USA LRG3193XX 703MMxxxxx ~ 711MMxxxxx
Canada LRG3061XX 703MMxxxxx ~ 711MMxxxxx
Canada LRG3193XX 703MMxxxxx ~ 711MMxxxxx
• Extended Warranty
This service is covered by an extended warranty Yes No
- If Yes, Parts for ( ) years and Labor for ( ) years by LG.
- If No, Parts and labor are charged to the customer if outside warranty period.
• The warranty period, including any extended warranty above, starts from the original date of purchase.
1. Symptoms and Causes
a) Symptoms : Oven not heating (Broil / Bake)
b) Causes : Bake/Broil Ignitor Broken or cracked.
• The information is available through “https://gsfsplus-america.lge.com” with a valid ID.
• The information is intended tor experienced technicians, not for customer .
• The information is subject to change or update without notice.
Applicable only with symptoms below: Applicable with every repair:

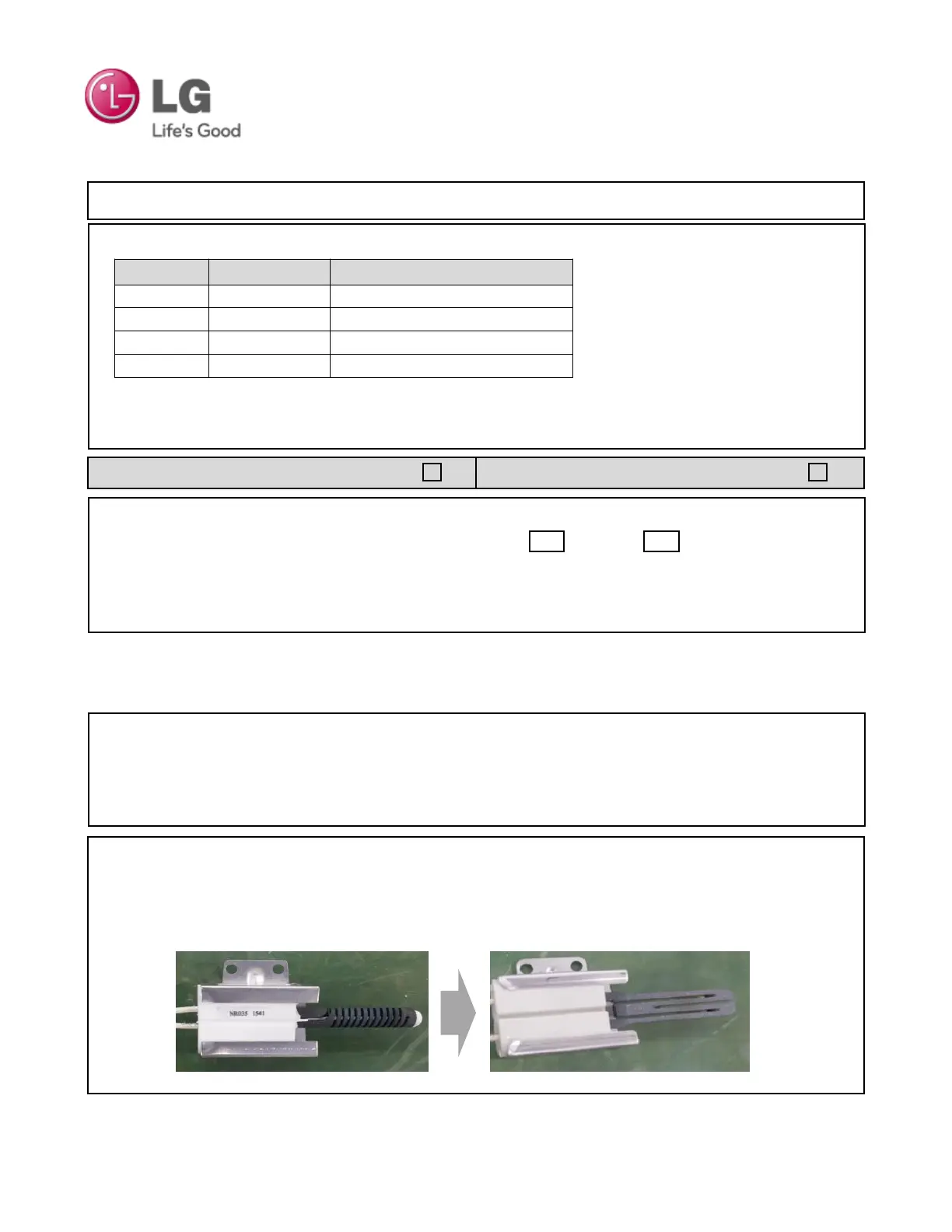

Service Bulletin
Product : Gas Oven Range
Bulletin # : CVZ201800011
Release Date : 2018.05.17


2. Repair Instruction
: When replacing the Bake or Broil Hot surface ignitor, replace the Hot surface ignitor
from P/No MEE63084901 to MEE61841401
MEE63084901
MEE61841401
65
