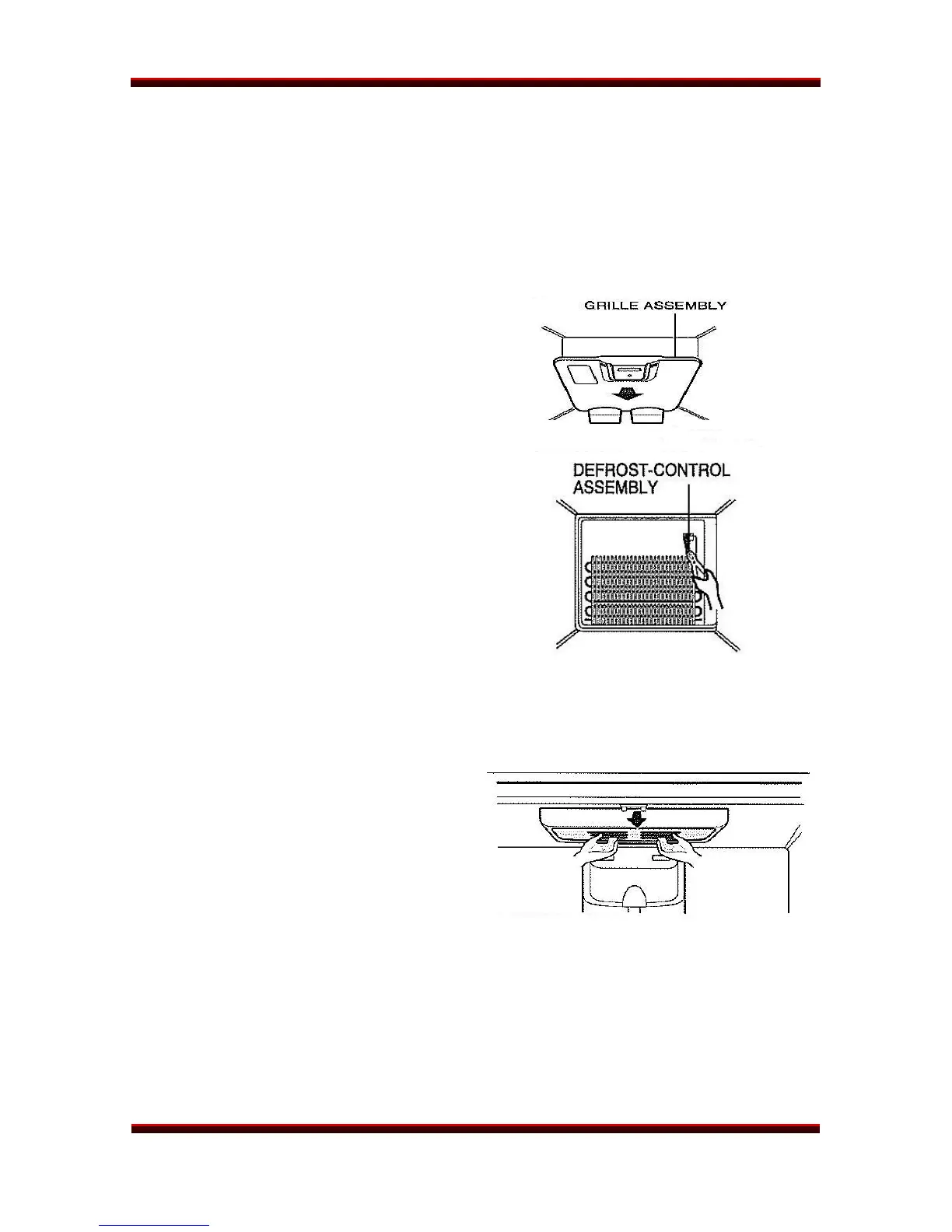

REFRIGERATOR DISASSEMBLY
DEFROST CONTROL ASSEMBLY
The defrost control assembly consists of a defrost sensor and a fuse. The sensor
detects the temperature of the defrost heater and turns it off when it reaches 8° C
(46° F). The thermo-fuse is a safety device to prevent overheating of the defrost
heater at 72° C (162° F). The entire unit is sealed in plastic and must be replaced
as an assembly because it is not repairable.
1. Unplug the refrigerator before
working on it.
2. Remove the freezer grille, as
described above, to expose the
evaporator coil.
3. Cut the cable tie and remove the
defrost control assembly.
4. Separate the connector to
remove and replace the defrost
control.
5. Replace the cable tie to hold the
control assembly in place.
REFRIGERATOR LAMP
1. Unplug the refrigerator before
working on it.
2. Remove the refrigerator shelves
for easier access.
3. Press the tabs on both ends of
the lamp shield to release it.
4. Unscrew the bulb(s) and
replace. Use a 60-watt bulb
maximum.
5. Replace the lamp shield and the
tabs will click into place.
LFX21960ST/LFX25960xx Page 26 of 75 TRAINING MANUAL

LG LFX21960ST Specifications

General

Style	French Door
Color	Stainless Steel
Number of Doors	3
Total Capacity	21.8 cu. ft.
Refrigerator Capacity	15.0 Cu. Ft.
Freezer Capacity	9.0 Cu. Ft.
Number of Refrigerator Shelves	5: 1 Slide-In
Number of Refrigerator Bins	3
Humidity Controlled Crispers	2 Humidity Crispers/1 Bonus Drawer
Number of Freezer Shelves/Baskets	-
Refrigerator Temperature	5 Temperature Sensors
(-14°C)	-7/7 °F
Refrigerator Special Features	Ice Maker
Freezer Special Features	-
Defrost System	-
Noise level	-
Refrigerant	-
Energy Class	-
Annual Energy Consumption	-
Voltage	-
Frequency	-
Current	-

Weight and Dimensions

Depth	27 1/4 in
Height	70 1/4 in
Width	42 in
Net Weight	331 lbs
