LG LMC1575ST Service Manual

5-1
SERVICE INFORMATION
NECESSARY TOOLS
Tools normally used for TV servicing are sufficient.
Standard tools are listed below.
• Diagonal pliers
• Long nose pliers
• Phillips screwdriver
• Flat blade screwdriver
• Wrench (size 5mm)
• Nutdriver (size 5mm)
• Adjustable wrench
• Soldering iron
• Solder
• Vinyl insulation tape
• Polishing cloth
• Hex screw diver
NECESSARY MEASURING INSTRUMENTS
• TESTER (VOLTS-DC, AC, Ohmmeter)
• Microwave survey meter
- Holaday HI-1500
HI-1501
- Narda 8100
8200
• Inch scale
• 600 cc non conductive material beaker (glass or plastic), inside diameter: approx.
8.5 cm (3
1
/
2
in.)
• Cylindrical and made of borosilicate glass vessel.
max. thickness: 3 mm
outside diameter: approx. 190mm
height: approx. 90mm
• Glass thermometer: 100°C or 212°F (1 deg scale) or digital thermometer (testo
702).
CAUTIONS
• Be sure to check microwave leakage prior to servicing the oven if the oven
is operative prior to servicing.
• The service personnel should inform the manufacture importer, or
assembler of any certified oven unit found to have a microwave emission
level in excess of 5 mW/cm
2
and should repair any unit found to have excessive
emission levels at no cost to the owner and should ascertain the cause of the
excessive leakage. The service personnel should instruct the owner not to use
the unit until the oven has been brought into compliance.
• If the oven operates with the door open, the service personnel should:
- Tell the user not to operate the oven.
- Contact the manufacturer.
• The service personnel should check all surface and vent openings for microwave
leakage.
• Check for microwave leakage after every servicing. The power density of the
microwave radiation leakage emitted by the microwave oven should not exceed
5 mW/cm
2
. Always start measuring of an unknown field to assure safety for
operating personnel from radiation leakage.
MEASURING MICROWAVE ENERGY LEAKAGE
• Pour 275±15cc of 20±5°C(68±9°F) water in a beaker which is graduated to
600 cc, and place the beaker on the center of the turntable.
• Set the energy leakage monitor to 2,450 MHz and use it following the
manufacturer's recommended test procedure to assure correct result.
• When measuring the leakage, always use the 2- inch (5cm) spacer supplied
with the probe.
• Operate the oven at its maximum output.
• Measure the microwave radiation using and electromagnetic radiation
monitor by holding the probe perpendicular to the surface being measured

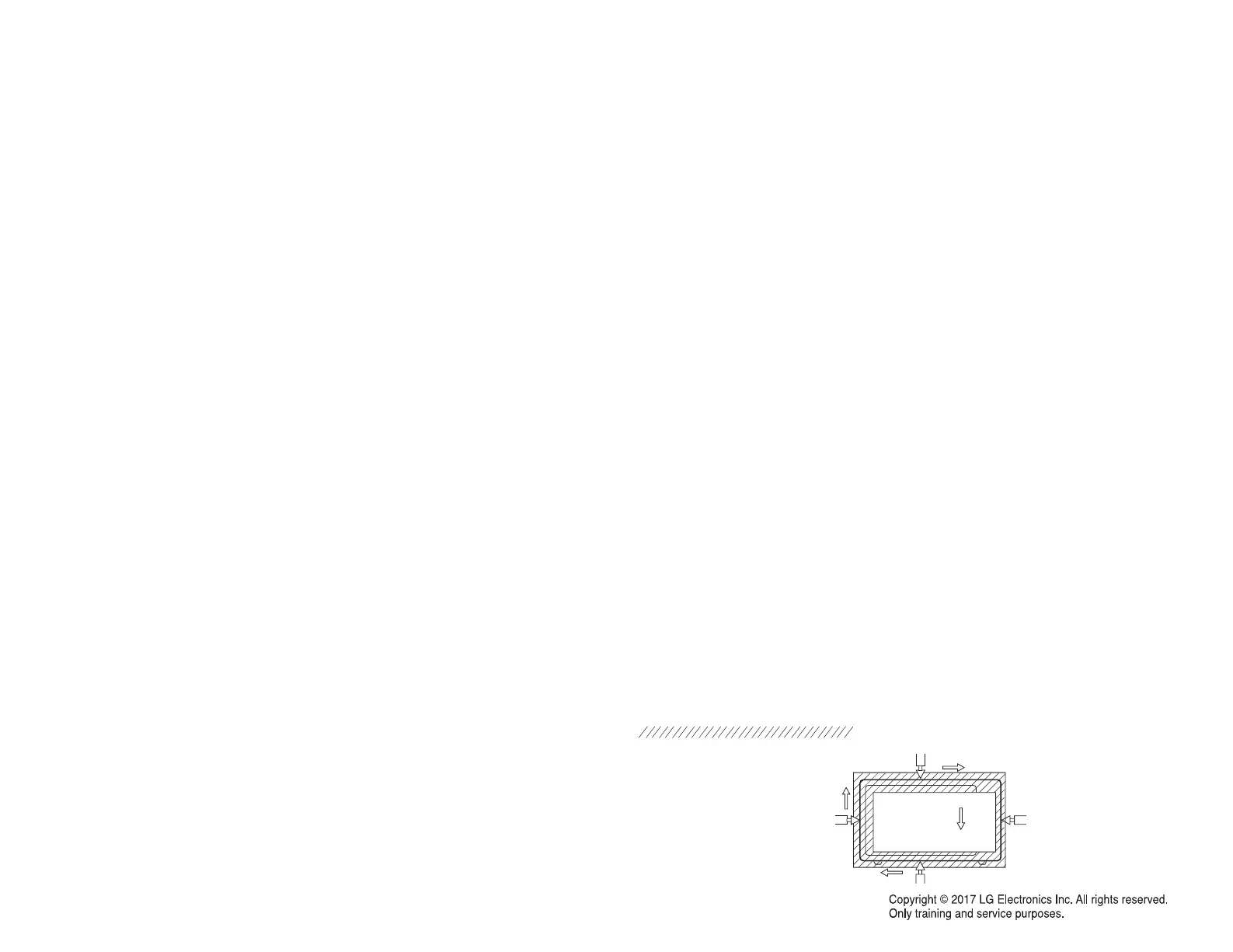

Move probe along shaded area
Probe scanning speed
Less than 2.5 cm/sec
(1 in/sec)
TOOLS AND MEASURING INSTRUMENTS
MICROWAVE LEAKAGE TEST

LG LMC1575ST Specifications

General

Style	counter top
Color	stainless steel
Total Capacity	1.5 cu. ft.
Convection	no
Power Levels	10
Sensor Cooking	yes
Quick Start	no
Timer	yes
Interior Light	yes
Microwave Power	1, 250 watts
Voltage	120 volts
Current	15a

Weight and Dimensions

Depth	17 inch
Height	12 13/100 inch
Width	21 41/100 inch
