LG LMC1575ST Service Manual

5-9
INTERLOCK CONTINUITY TEST
A. PRIMARY INTERLOCK SWITCH TEST
When the door is pulled slowly with the door closed, an audible click
should be heard at the same time or successively at intervals. When the
door is closed slowly, the latches should activate the switches with an
audible click. If the latches do not activate the switches when the door is
closed, the switches should be a adjusted in accordance with the
adjustment procedure. Disconnect the wire lead from the primary switch.
Connect the ohmmeter leads to the common (COM) and normally open
(NO) terminal of the switch. The meter should indicate an open circuit in
the door open condition.
When the door is closed, the meter should indicate a closed circuit.
When the primary switch operation is abnormal, make the necessary
adjustment or replace the switch only with the same type of switch.
B. SECONDARY INTERLOCK SWITCH TEST
Disconnect the wire lead from the secondary switch.
Connect the ohmmeter leads to the common (COM) and normally open
(NO) terminals of the switch. The meter should indicate a open circuit in
the door open condition. When the door is closed, meter should indicate
an closed circuit. When the secondary switch operation is abnormal, make
the necessary adjustment or replace the switch only with the same type of
switch.
C. MONITOR SWITCH TEST
Disconnect the wire lead from the monitor switch. Connect the ohmmeter
leads to the common (COM) and normally closed (NC) terminals of the
switch. The meter should indicate closed circuit in the door open condition.
When the door is closed, meter should indicate an open circuit. When the
monitor switch operation is abnormal, replace with the same type of
switch. Check Common and normally open terminals,too. Opposite result
of Common-normally close test is normal.
NOTE: After repairing the door or the interlock system, it is
necessary to do this continuity test before operating the oven.
WARNING : FOR CONTINUED PROTECTION AGAINST EXCESSIVE RADIATION EMISSION, REPLACE ONLY WITH
IDENTICAL REPLACEMENT PARTS.
TYPE NO.SZM-V 16-FA-63 FOR PRIMARY SWITCH / TYPE NO.SZM-V 16-FA-61 FOR MONITOR SWITCH / TYPE NO.SZM-V 16-FA-63 FOR SECONDARY SWITCH

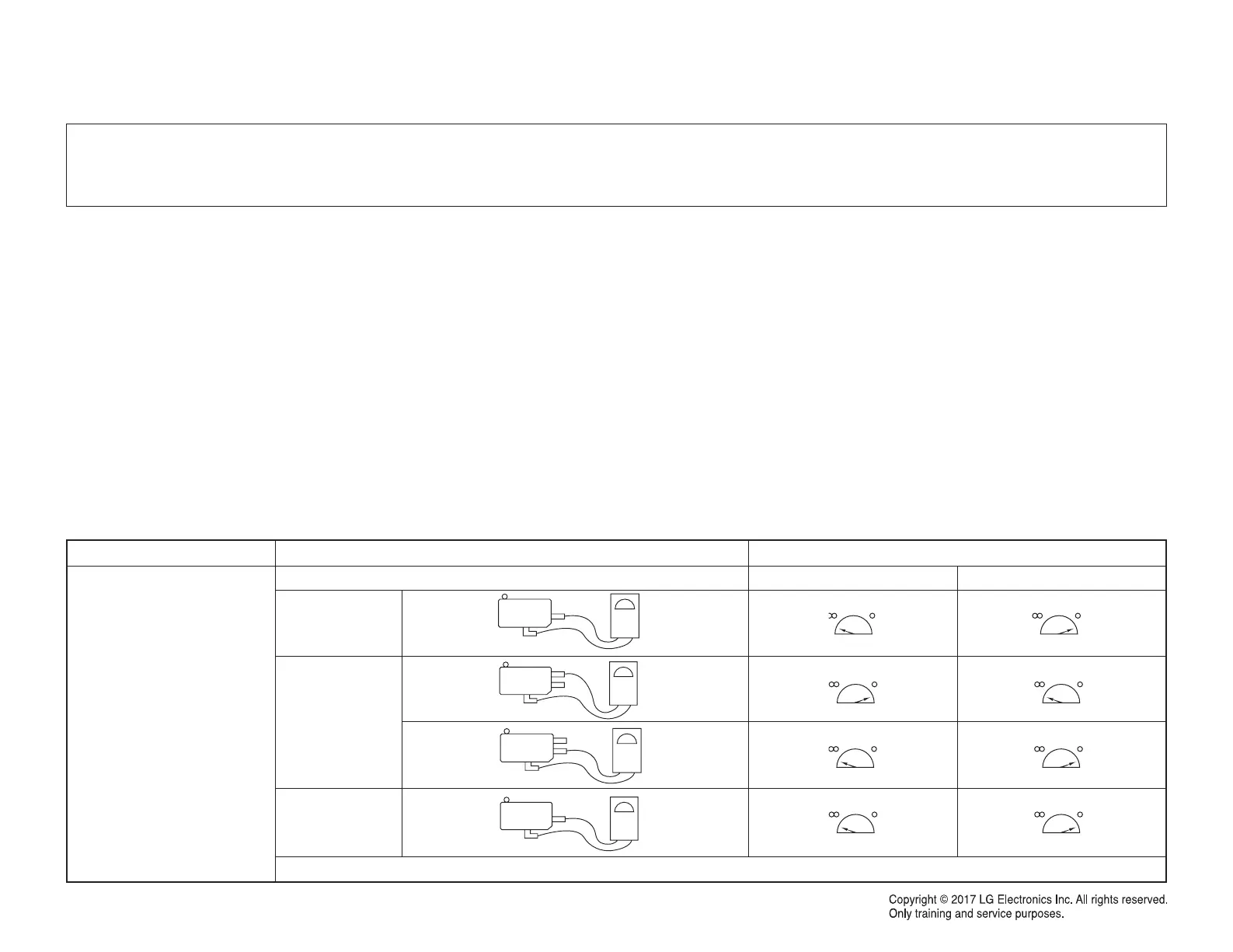

COMPONENTS TEST PROCEDURE RESULTS
SWITCHES
(Wire leads removed)
Check for continuity of the switch with an Ohm-meter Door open Door closed
Primary
Switch
Monitor
Switch
Secondary
Switch
NOTE : After checking for the continuity of switches, make sure that they are connected correctly.
NO
COM
NC
NC
COM
NO
NO
COM
NO
COM
NO
COM
NC
NC
COM
NO
NO
COM
NO
COM
NO
COM
NC
NC
COM
NO
NO
COM
NO
COM
NO
COM
NC
NC
COM
NO
NO
COM
NO
COM

LG LMC1575ST Specifications

General

Style	counter top
Color	stainless steel
Total Capacity	1.5 cu. ft.
Convection	no
Power Levels	10
Sensor Cooking	yes
Quick Start	no
Timer	yes
Interior Light	yes
Microwave Power	1, 250 watts
Voltage	120 volts
Current	15a

Weight and Dimensions

Depth	17 inch
Height	12 13/100 inch
Width	21 41/100 inch
