32

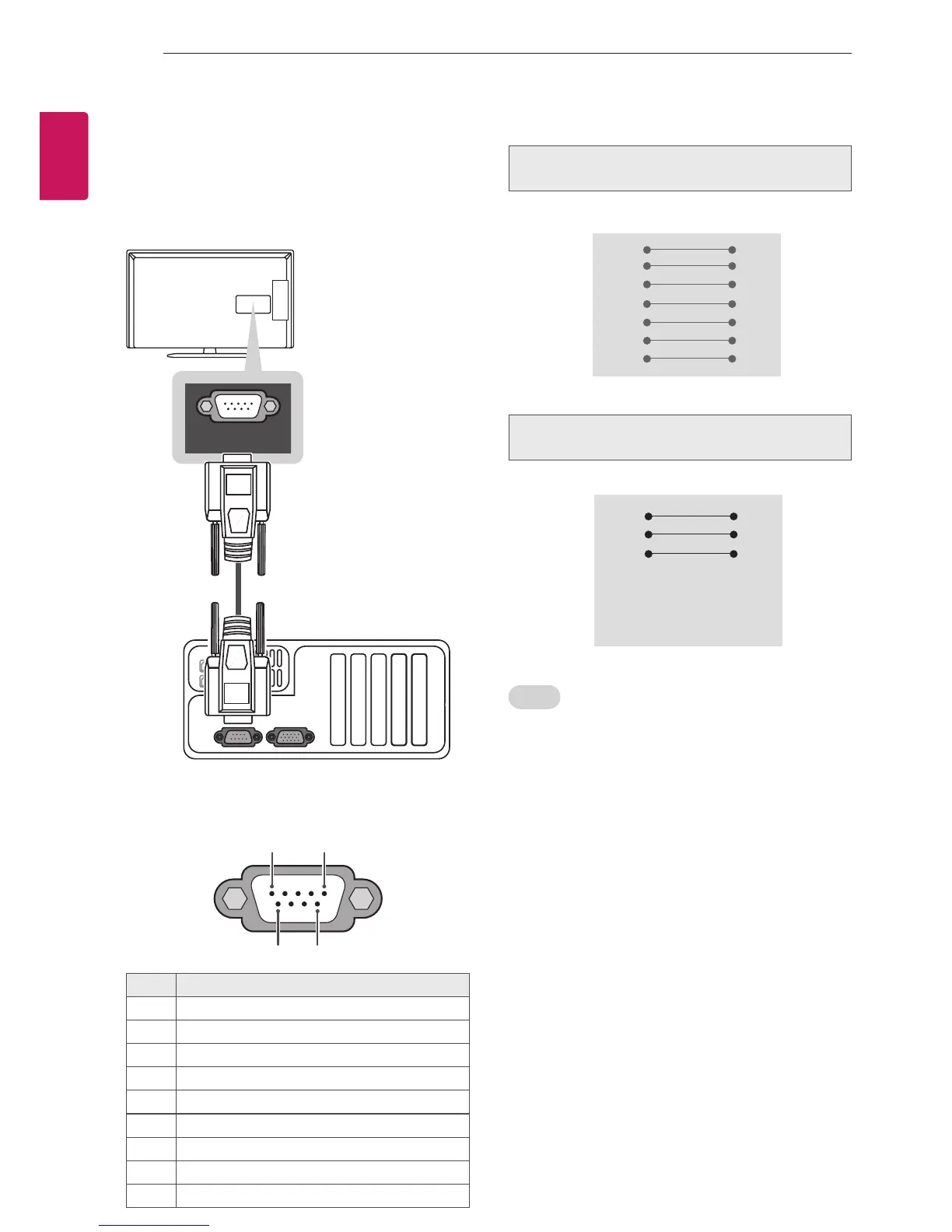

EXTERNAL CONTROL DEVICE SETUP
ENG
ENGLISH
EXTERNALCONTROLDEVICESETUP
RS-232Csetup
Connect the RS-232C (serial port) input jack to an external con-
trol device (such as a computer or an A/V control system) to
control the product’s functions externally.
Connect the serial port of the control device to the RS-232C
jack on the product back panel.
Note: RS-232C connection cables are not supplied with the
product.
RS-232Ccongurations
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
Typeofconnector;
D-Sub9-PinMale
No. Pinname
1 3.5V
2 RXD (Receive data)
3 TXD (Transmit data)
4 IR OUT from TV
5 GND
6 No Connection
7 No Connection
8 No Connection
9 No Connection (12V available in some models)
AV
(RGB)
/DVI IN
1 2
COMPONENT
IN
RGB IN (PC)
SPEAKER
OUT
ANTENNA/
CABLE IN
OPTICAL
AUDIO OUT
AUDIO IN
(COMPONENT/RGB/DVI)
RS-232C IN
(CONTROL & SERVICE)
H/P OUT
IN 3 USB IN
PCMCIA CARD SLOT
(*Not Provided)
6
1 5
9
7-Wire Configurations
(Standard RS-232C cable)
3-Wire Configurations
(Not standard)
Set ID
Set ID number. "RealDataMapping".
1 Press SETTINGSorHOME to access the main
menus.
2 Press the Navigation buttons to scroll to
OPTION and press OK.
3 Press the Navigation buttons to scroll to SetID
and press OK.
4 Scroll left or right to select a set ID number and
select Close. The adjustment range is 1-99.
5 When you are finished, press EXIT.
