EXTERNAL EQUIPMENT SETUP
DVD SETUP

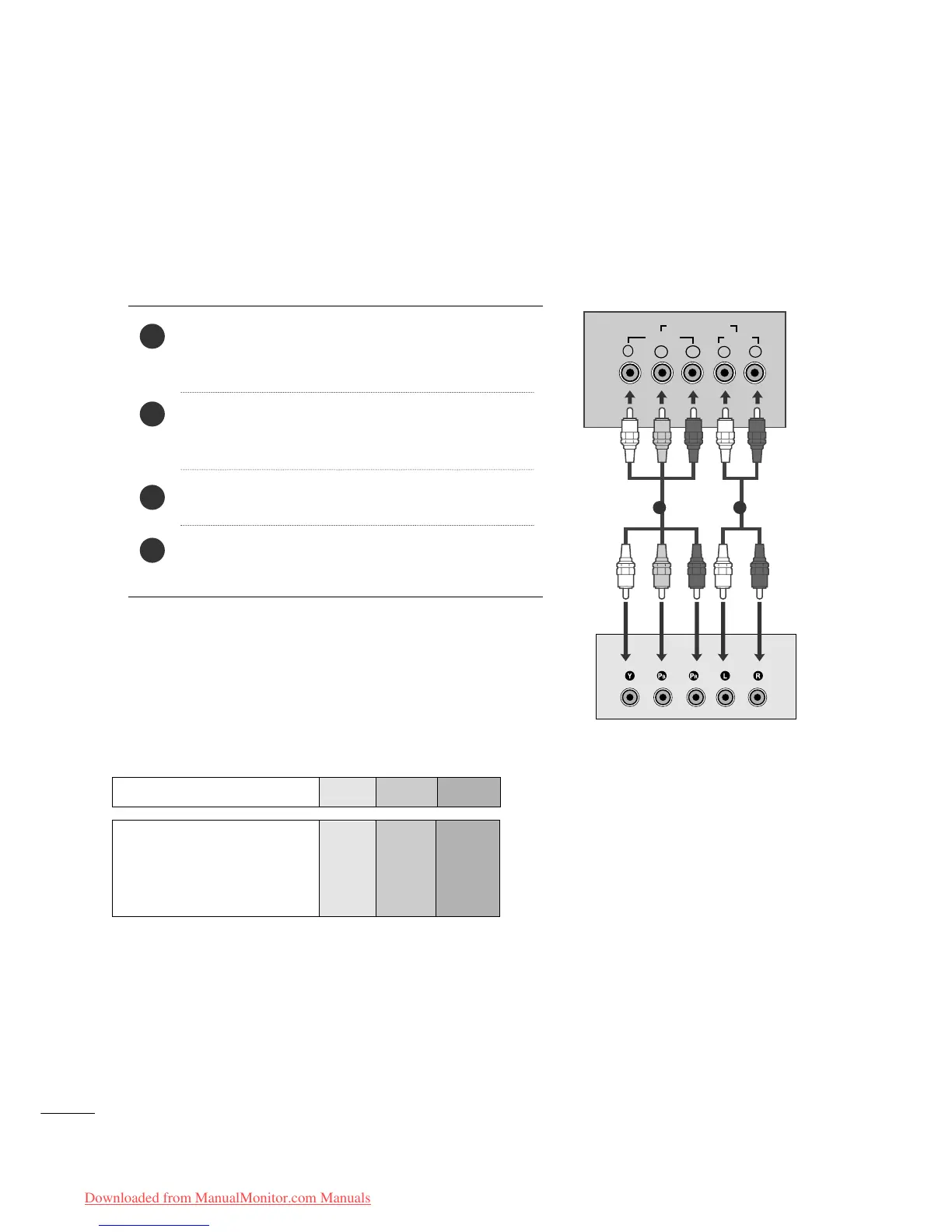

When connecting with a component cable
AV 1 AV 2
Y P B P R LR
VIDEO
COMPONENT IN
AUDIO
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the set
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
P
B
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video output sockets (YPB
PR
) of the DVD to
the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
sockets (YP
B
PR
) of the
set.
Connect the audio cable from the DVD to
CCOOMMPPOONNEENNTT
IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select
Component.
Press the
PPLLAAYY
button on the DVD.
The DVD playback picture appears on the screen.
2
3
4
1
1 2
