MULTI F / MULTI F MAX Outdoor Unit Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F

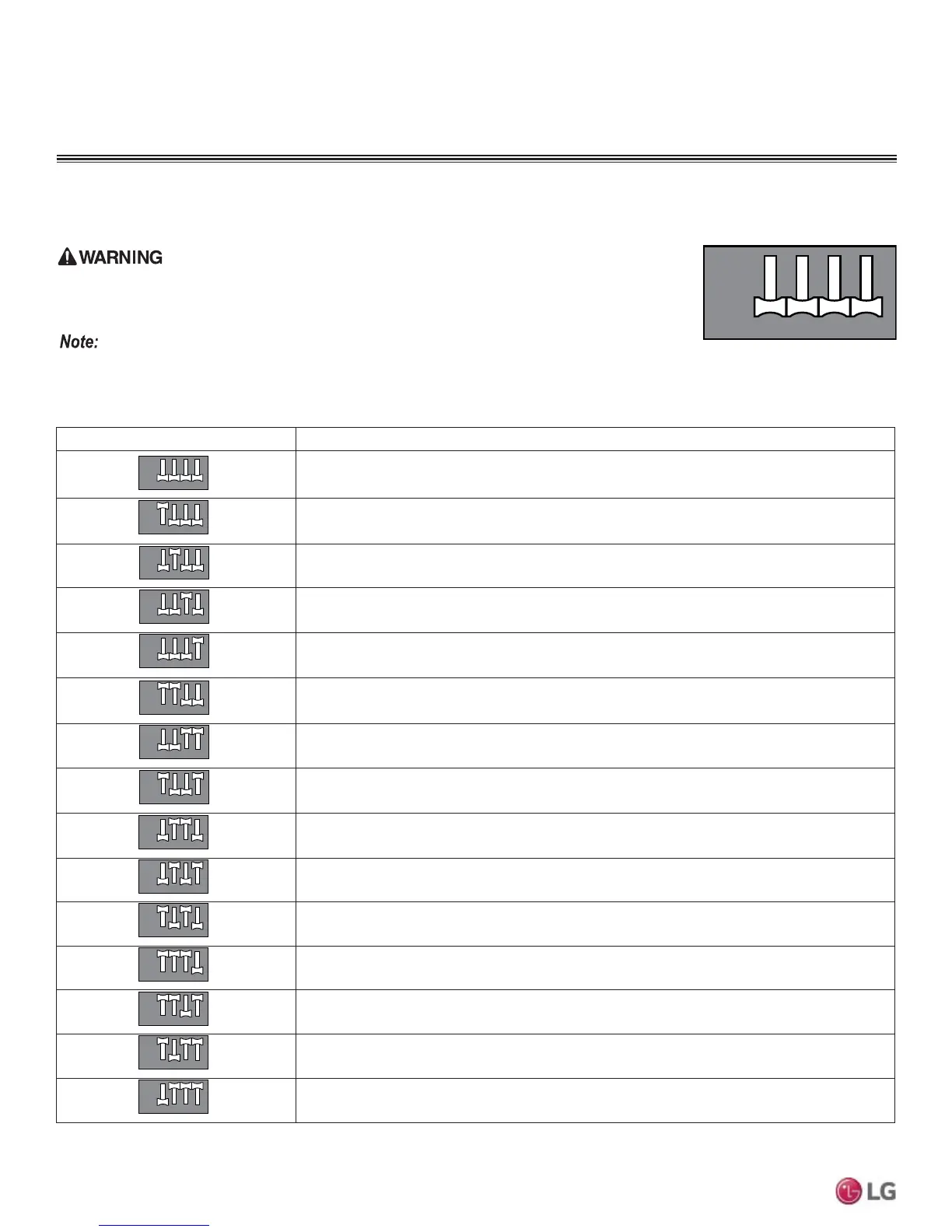

Outdoor Unit DIP Switch Settings
System must be powered off, and then turned back on to apply DIP switch settings.
Turn off the circuit breaker or shut the power source of the product down before setting the DIP switch. There is
risk of physical injury or death due to electric shock.
• Unless the applicable DIP switch is set properly, the system may not work.
• If a specific function is desired, request that the installer set the appropriate DIP switch during installation.
12 43
12 43
ON
OFF
DIP SWITCH SETTINGS
Figure 85: Outdoor Unit DIP
Switches (in Normal Operation
Setting).
Table 41: DIP Switch Settings and Functionalities.
DIP Switch Setting Function
Normal Operation (No Function)
Forced Cooling Operation
Wiring Error Check
Reducing Power Consumption (Step 1)
Reducing Power Consumption (Step 2)
Mode Lock (Cooling)
Mode Lock (Heating)
Night Quiet Mode (Step 1)
Night Quiet Mode (Step 2)
Mode Lock (Cooling) + Night Quiet Mode (Step 1)
Mode Lock (Cooling) + Night Quiet Mode (Step 2)
Reducing Power Consumption (Step 1) with Mode Lock (Cooling)
Reducing Power Consumption (Step 2) with Mode Lock (Cooling)
Reducing Power Consumption (Step 1) with Mode Lock (Heating)
Reducing Power Consumption (Step 2) with Mode Lock (Heating)
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
12 43
12 43
ON
OFF
