Installation parts you should purchase.
NOTICE
(Left and right
are identical)
(Left and right
are identical)
Sleeve
Bushing-Sleeve
Putty(Gum Type Sealer)
Bend the pipe as closely
on the wall as possible,
but be careful that it
doesn't break.
Vinyl tape (Wide)
• To carry out the drainage
test, remove the air filters
and pour water into the heat
exchanger.
• Apply after carrying out a
drainage test.
Saddle
There should be no space
between ceiling and the unit.
More than
200mm(7-7/8 inch)
More than
200mm(7-7/8 inch)
More than 50mm(2 inch)
More than 50mm(2 inch)

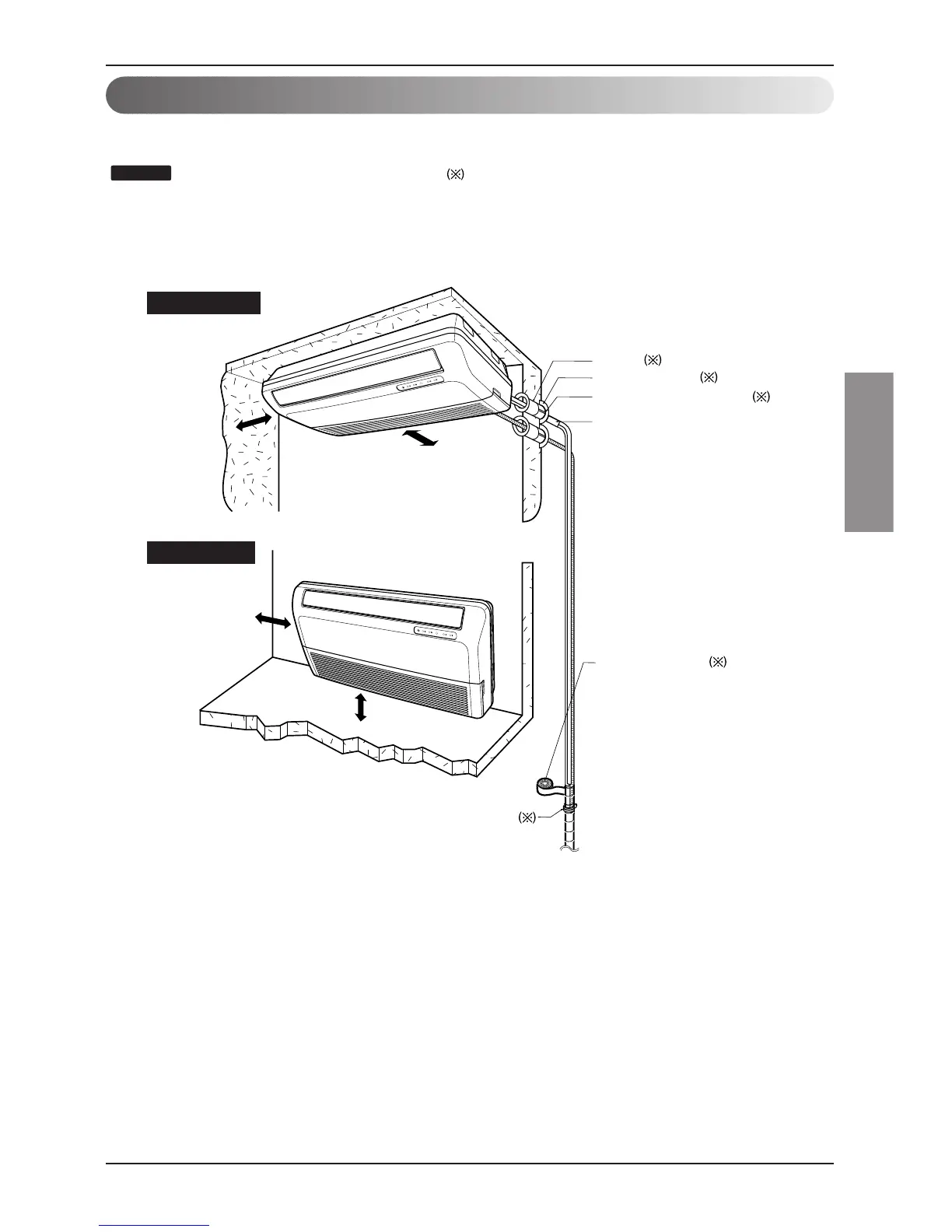

Ceiling Mounting
Wall Mounting
More than
200mm(7-7/8 inch)
