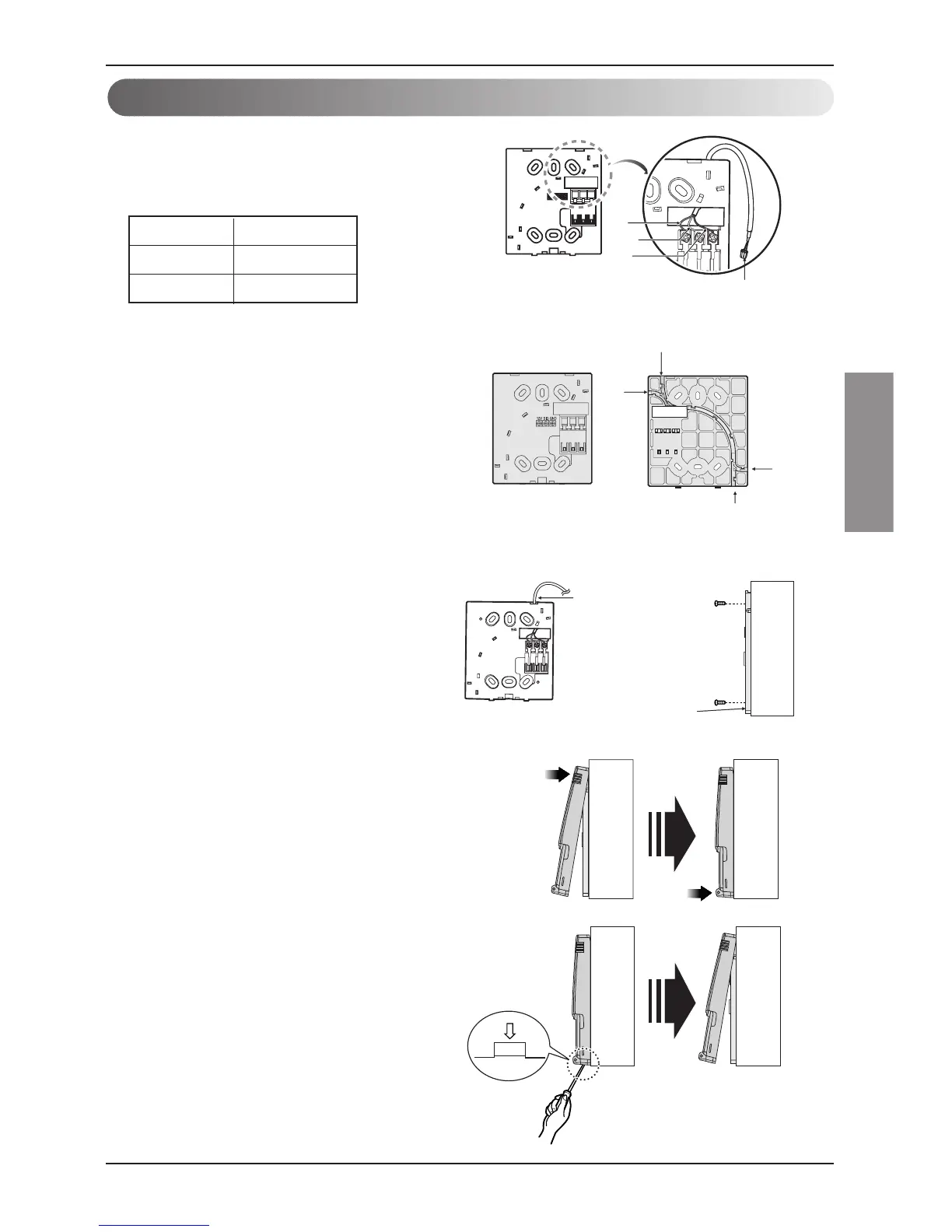

Installation
Installation of Wired Remote Controller
1. Connect the wired remote controller
cable to the wired remote controller
installation board as shown in the right
picture.
2. After fixing the cable to the guide slot,
attach the wired remote controller
installation board at the desired location.
• Before fixing the wired remote controller
cable to the guide slot, remove any clogged
part of the case in the direction to install
before the installation.
3. After locating the wired remote
controller installation board at the
desired location, screw the unit firmly.
(When there is a buried box, install the
wired remote controller board to fit the
buried box.)
• Use the screw provided.
4. After fixing the top part of the wired
remote controller to the installation
board as shown in beside picture,
press the bottom part to assemble the
controller to it’s board.
When disassemble the wired remote controller
from the installation board, use the driver as
shown in the right picture and insert it into the
hole with the arrow. And when you pull the
driver in the front direction, the wired remote
controller will be separated.
12V Red wire
SIG Yellow wire
GND Black wire
❊ The wired remote controller cable is connected as factory default.
12V SIG GND
Red
Yellow
Black
Remote Controller
Cable
Guide slot
Fixate the remote
controller cable
to the guide slot.
Use the screws
for fixate the unit
firmly on the wall.
Installation board
<Front side of
installation board>
<Rear side of
installation board>
Top
Bottom
Wall
Side
Wall
Side
Wall
Side
Wall
Side
Wall
Side
