12 Multi Type Air Conditioner
Installation
Indoor unit
1. Do not have any heat or steam near the unit.
2. Select a place where there are no obstacles in
front of the unit.
3. Make sure that condensation drainage can be
conveniently routed away.
4. Do not install near a doorway.
5. Ensure that the interval between a wall and the
left (or right) of the unit is more than 200mm(7-
7/8 inch). The unit should be installed as low as
possible on the wall, allowing a minimum of
50mm(2 inch) from floor.
6. Use a stud finder to locate studs to prevent
unnecessary damage to the wall.

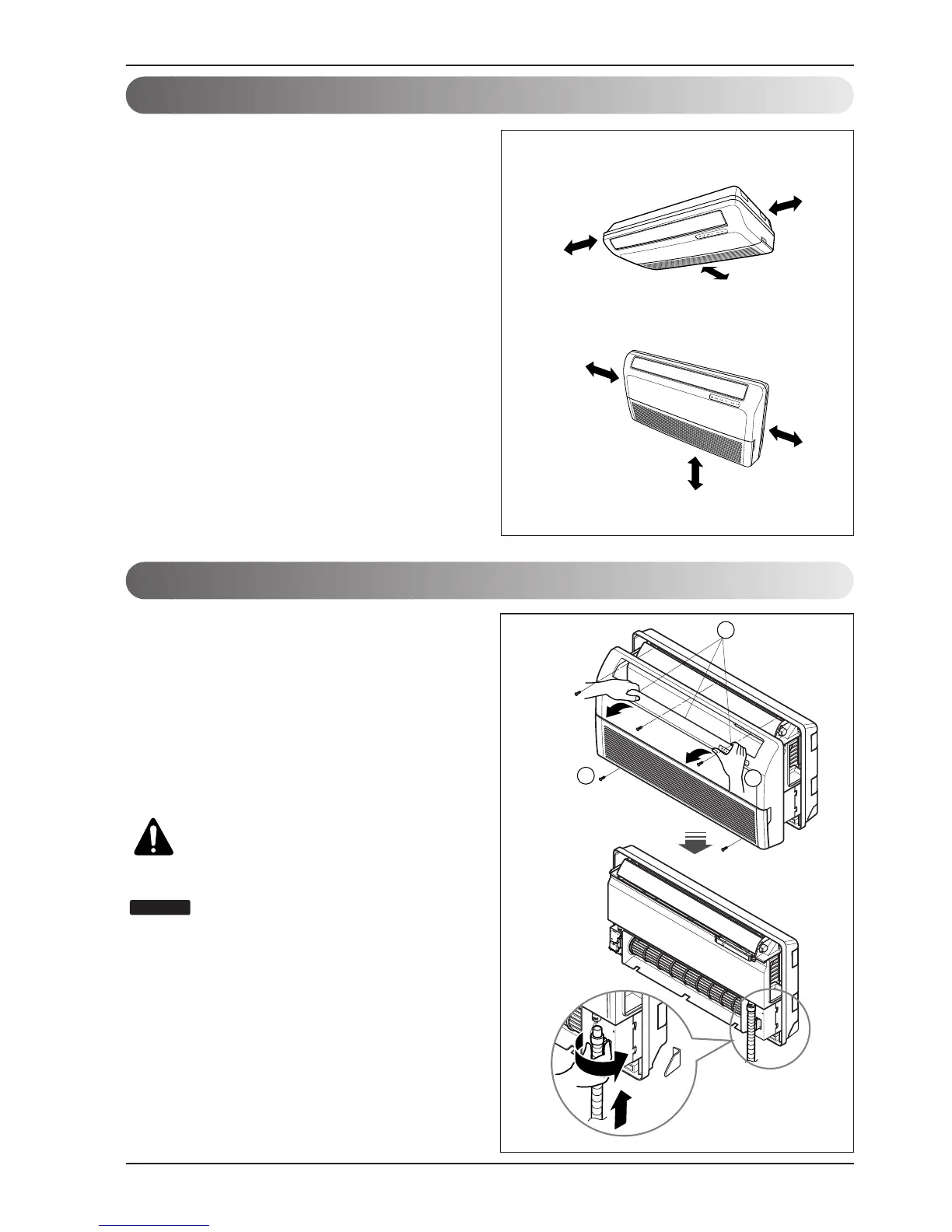

Select the best Location
Preparing Work for Installation
Open panel front
1. Remove the five screws.
2. Release the claws in the 3 places indicated.
3. Pull up the Front Panel.
Cover pipe and cover side remove
1. Pull up the side cover of desired connecting
direction, then cover side is separated.
2. Pick the pipe hole of the side cover.
CAUTION: After removing the
pipe hole, cut the burr for
safety.
When making pipe path through rear
wall, you don’t need to pick the pipe
hole.
Drain hose junction
1. Remove the rubber stopple in the desired
drain direction.
2. Insert drain hose into the handle of drain pan,
and join drain hose and connecting hose
according to the figure by.
