Be sure to unplug the machine out of the outlet before disassembling and repairing the parts.
9. DISASSEMBLY INSTRUCTIONS
①①

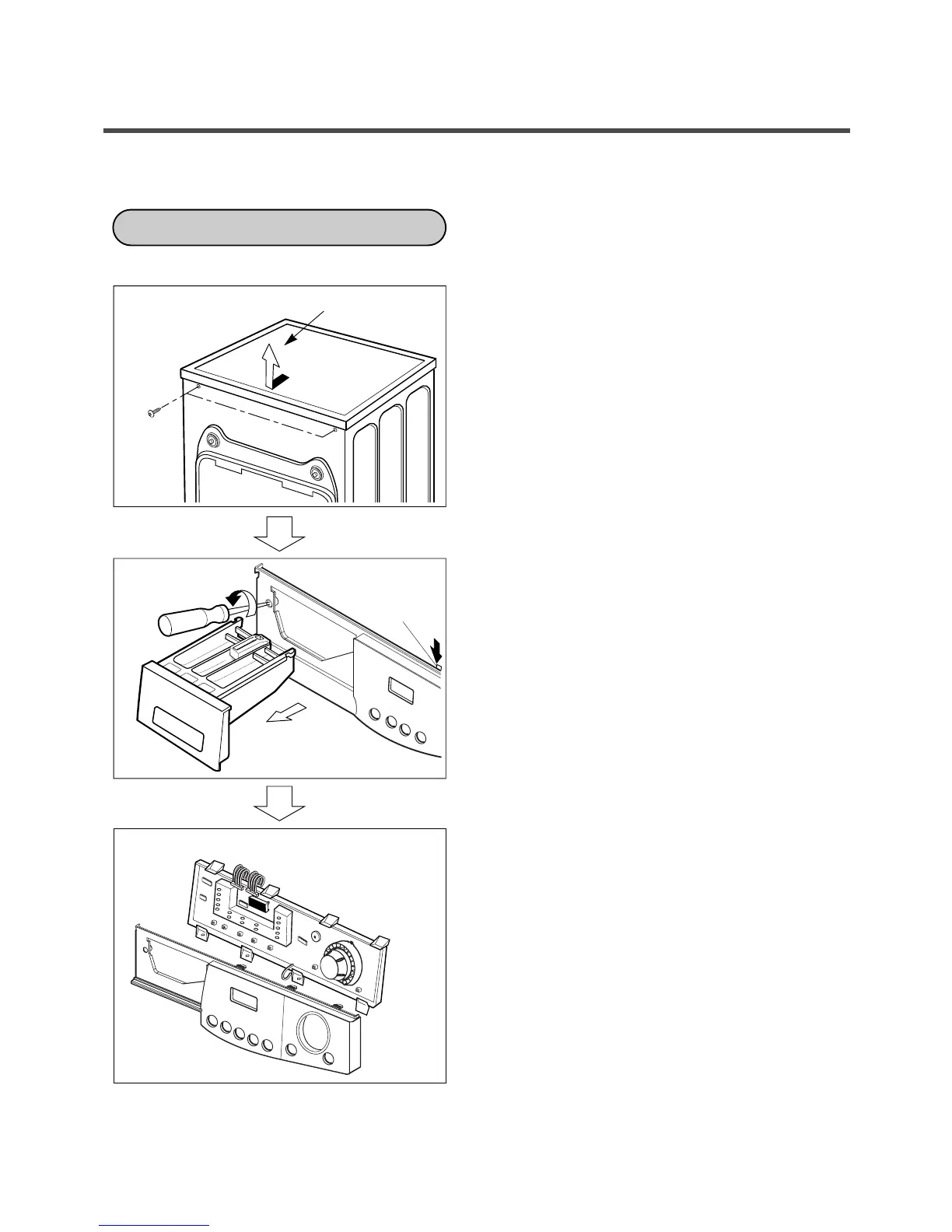

Unscrew 2 screws on the back of the top plate.
②②
Pull the top plate backward and upward as shown.
①①
Disconnect the PWB Assembly connector from Main
lead wire Assembly.
②②
Pull out the drawer and unscrew 2 screws.
③③
Push upper hooks down on the top and pull the control
panel.
①①
Disconnect the PWB assembly from the control panel
by unscrewing 5 screws.
