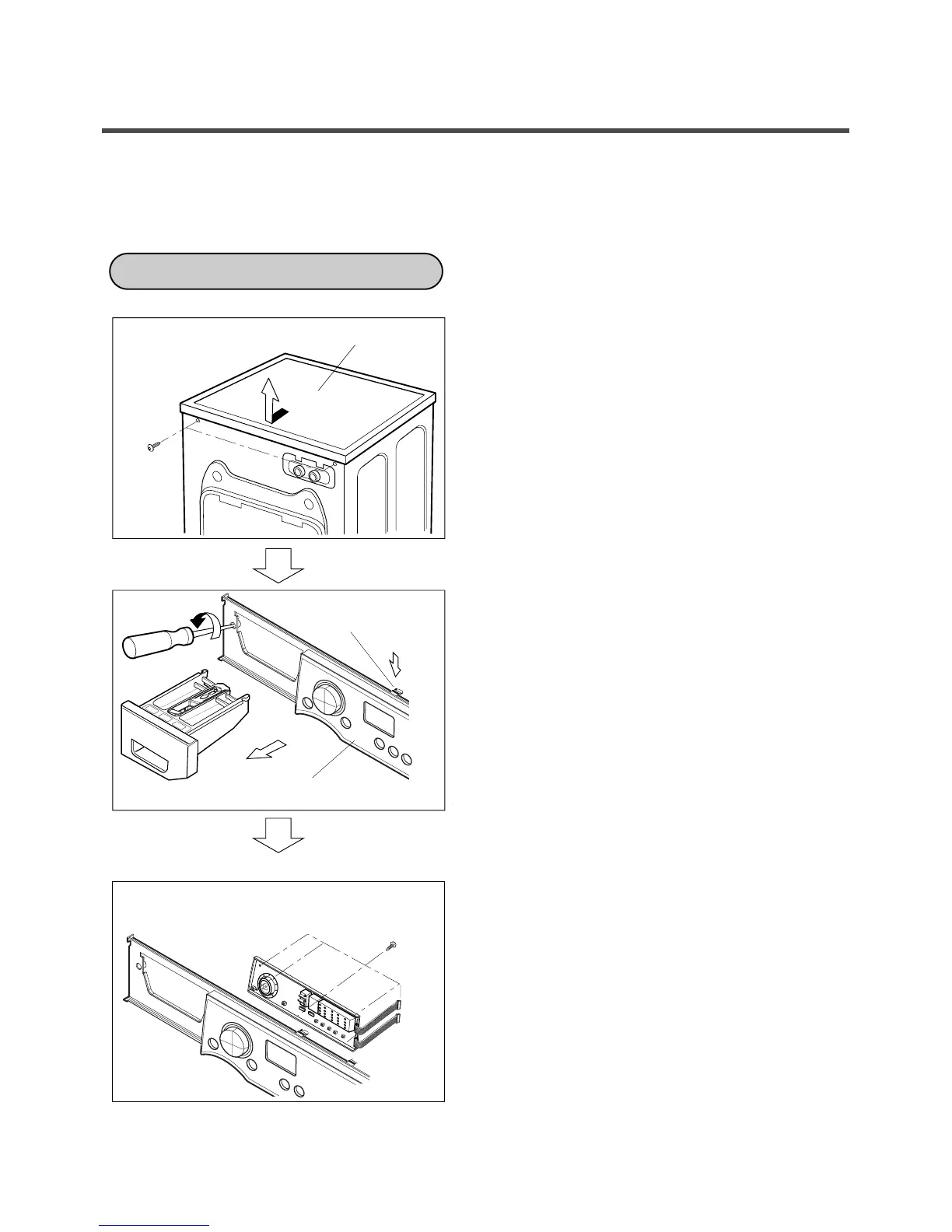

9. DISASSEMBLY INSTRUCTIONS
Disassemble and repair the parts after pulling out power cord from the outlet.
① Unscrew the screws on the top plate.
② The plate assembly(Top) is pulled back and
then upward to arrow direction.
③ The cover(Inner) is disassembled.
① The PWB assembly(Display) connectors are
disconnected.
② Pull out drawer, three screws are unscrewed.
③ Push two upper hooks and pull the control
panel forward.
① The PWB assembly(Display) is disconnected.
② When 8 screws are unscrewed on the PWB
insulator and the PWB assembly(Display) is
disassembled from the PWB insulator.
To Next Page
