LG WD-12320(5)RD User Manual

34

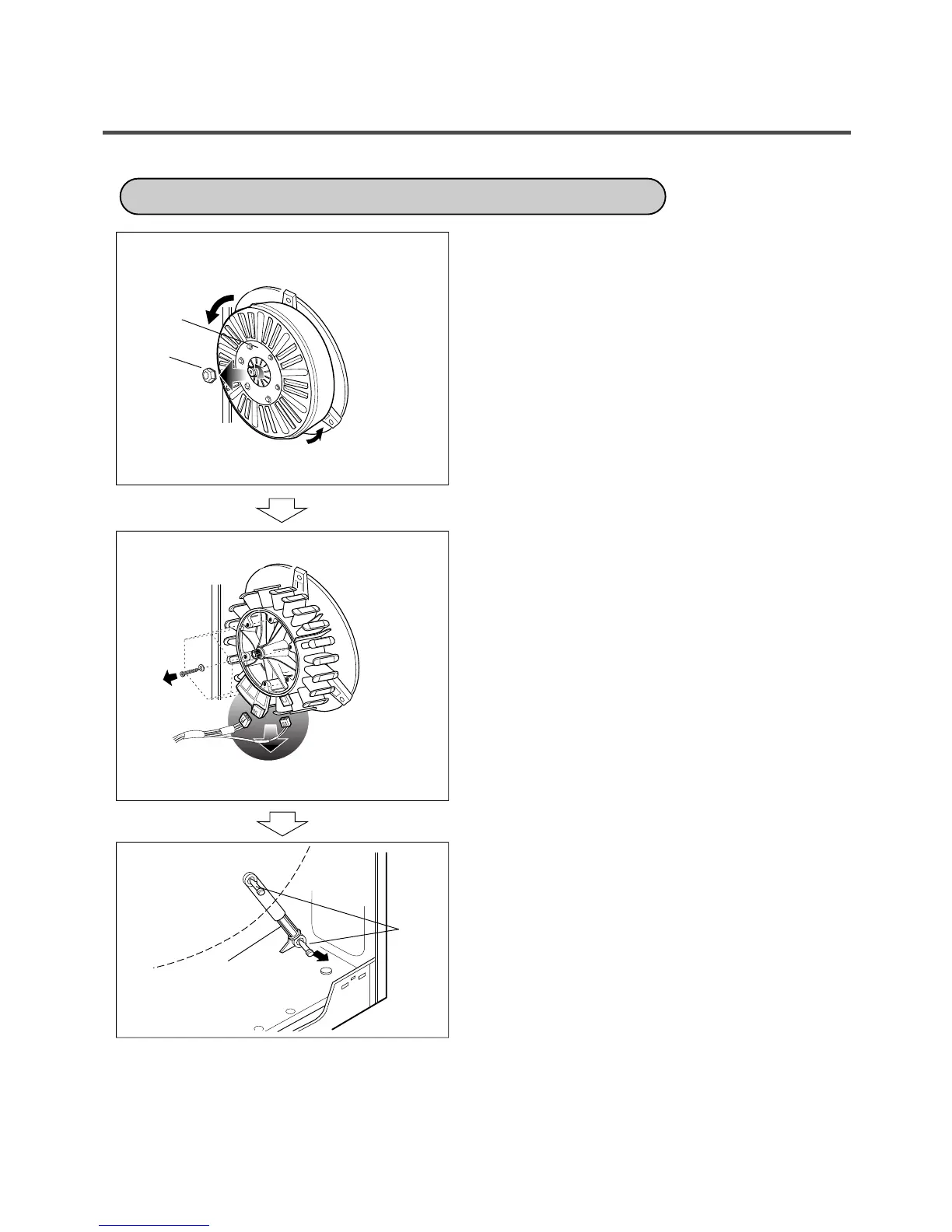

① Remove the back cover.
② After loosening the bolt, Rotor, pull out the
rotor.
① Remove the 6 bolt from the stator.
② Disconnect the 2 connectors.
① Remove the hinges (Damper) at the Tub.
② The Hinge(Damper) at the base is pulled off
pressing on the snaps at the sharp end.
③ The hinge at the base is pulled off.
(To arrow direction)
ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER
Rotor
Bolt
Friction
Damper
Hinge
(Damper)
(ROTOR ASSEMBLY)
(STATOR ASSEMBLY)
(FRICTION DAMPER)
HOW TO ASSEMBLE THE MOTOR
