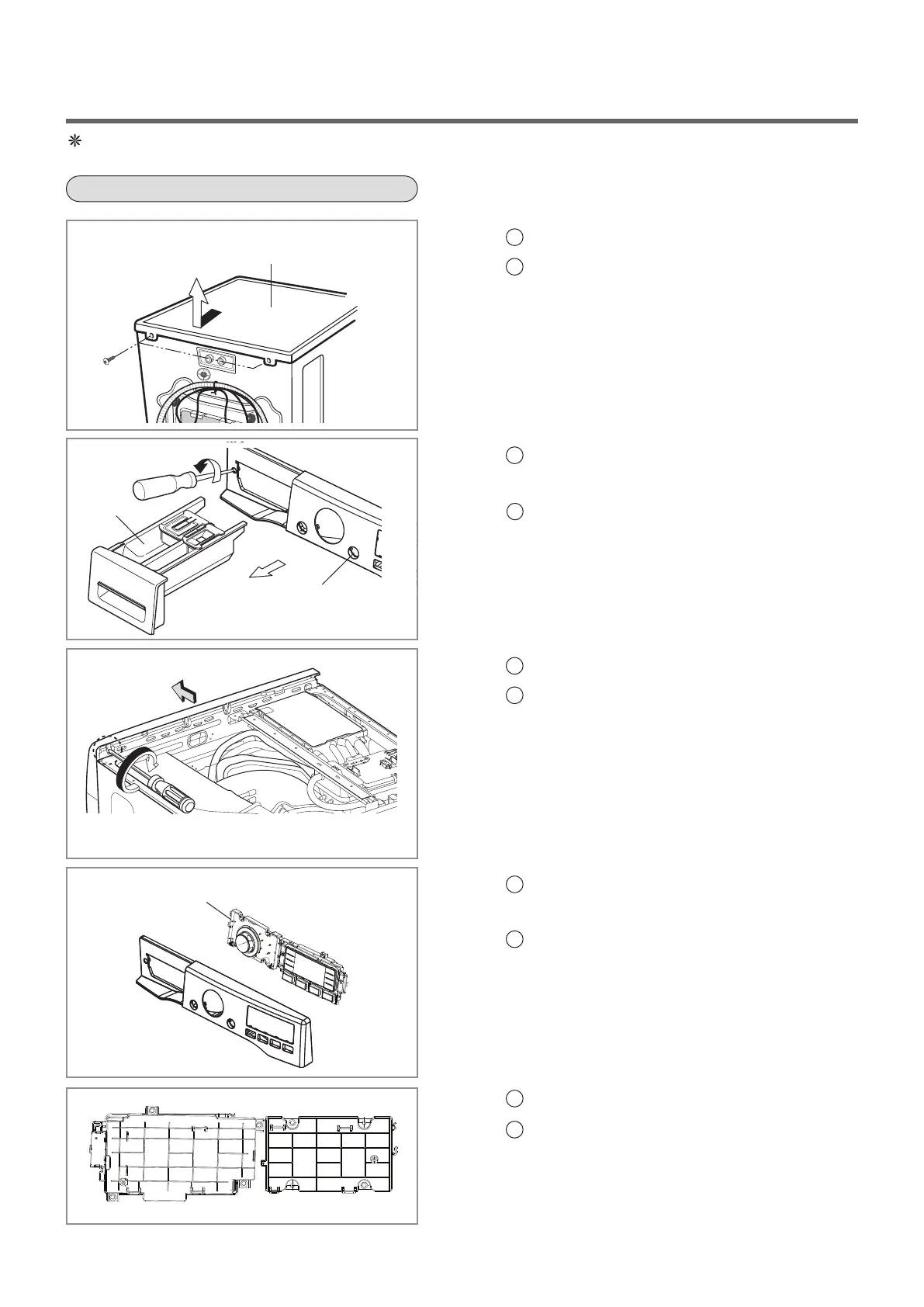

Be sure to unplug the machine before disassembling and repairing the parts.
CONTROL PANEL
1
Unscrew 2 screws on the back of the top plate.
2
Pull the top plate backward and upward as
shown.
3
Disconnect the Display PWB assembly
connector from the cabling.
4
Pull out the drawer and unscrew 2 screws.
5
Remove one screw.
6
Lift the side the control panel assembly and
pull it out.
7
Unscrew the 8 screws from the control panel
assembly.
8
Disassemble the display PWB assembly.
9
Disconnect the NFC connector.
10
Disassemble the NFC PCB from the
PCB assembly, display
TOP PLATE ASSEMBLY
CONTROL PANEL ASSEMBLY
DRAWER
CONTROL PANEL ASSEMBLY
DISPLAY PWB ASSEMBLY
9. DISASSEMBLY INSTRUCTIONS
