LG WT-R107 Service Manual

34
Hub fixing nut
Inlet Valve
ASM
Pipe
Connector
Hose
Pressure
Pipe

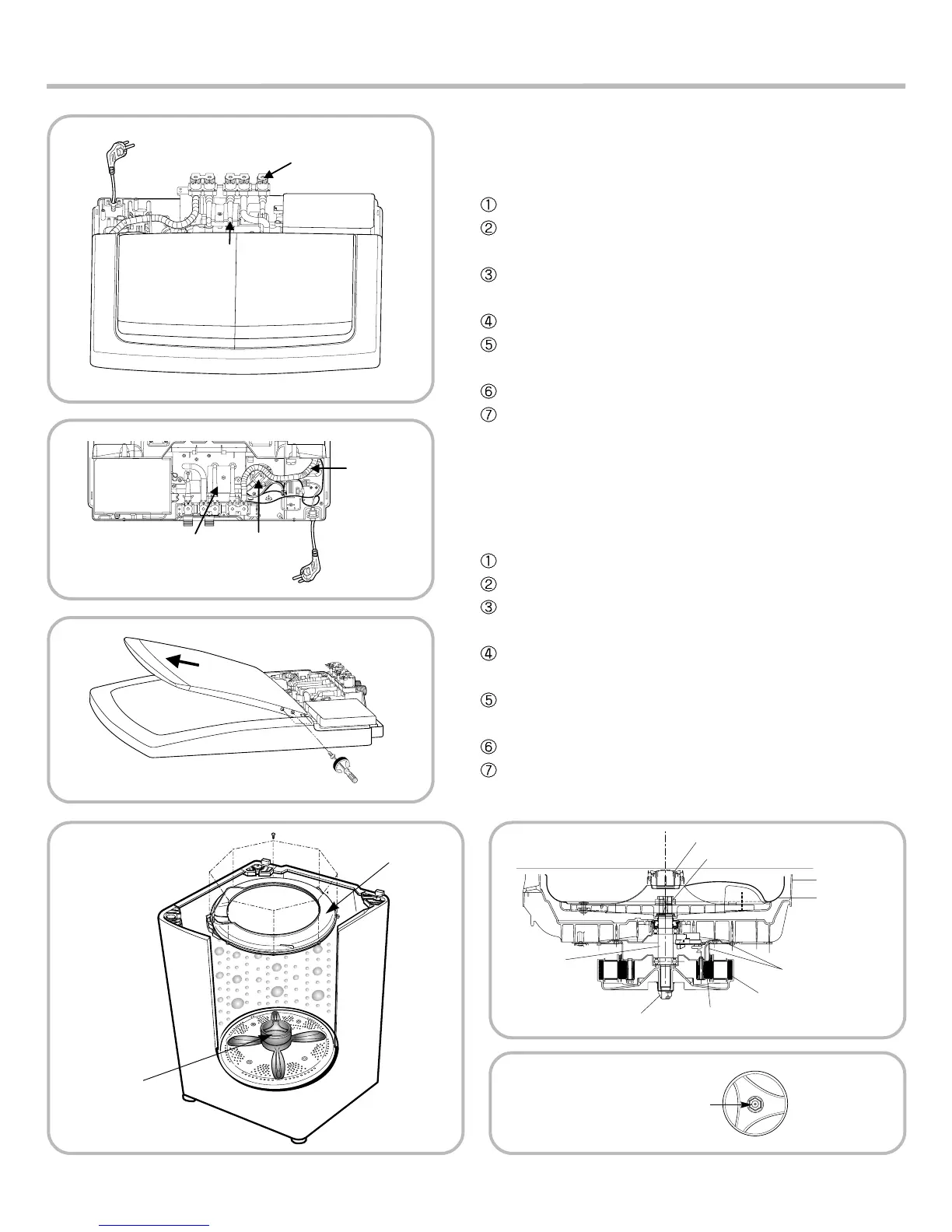

2) Disassembly of Power Cord, Inlet
Valve ASM, D.T Housing ASM and
Pressure Switch.
Disassemble back panel.
Disconnect three connectors ans disassemble the
power cord.
Remove two pipe fixing screws and three inlet valve
screws.
Disconnect the leads from the inlet valve.
Separate the pipe and the connector hose from the inlet
valve.
Remove the inlet Valve.
Disconnect the leads & pressure tube from the BP
sensor.
Tub Cover
Inner Tub Cap
Hub Fixing Nut
Inner Tub Cap
Out Tub
Inner Tub
Rotor
Stator
Rotor Nut
Shaft
Bearing Housing ASM
3) Disassembly of Lid Assembly, Top
Cover, Tub Cover, Pulsator & Inner Tub
Remove three lid fixing screws
Disassemble the Lid Assembly in arrow direction.
Remove two top cover fixig screws in the rear then
disassemble the top cover.
Remove the tub cover fixing screws then disassemble
tub cover.
Remove the pulsator fixing screws then disassemble the
pulsator.
Remove the hub fixing nut by a special tool.
Disassemble the inner tub.
