5. Software Control – Lightware Device Controller DA2DVI-HDCP-Pro – User's Manual 18
5.5.2. Log Tab
Events logged by the device and report generators can be found on Log tab.

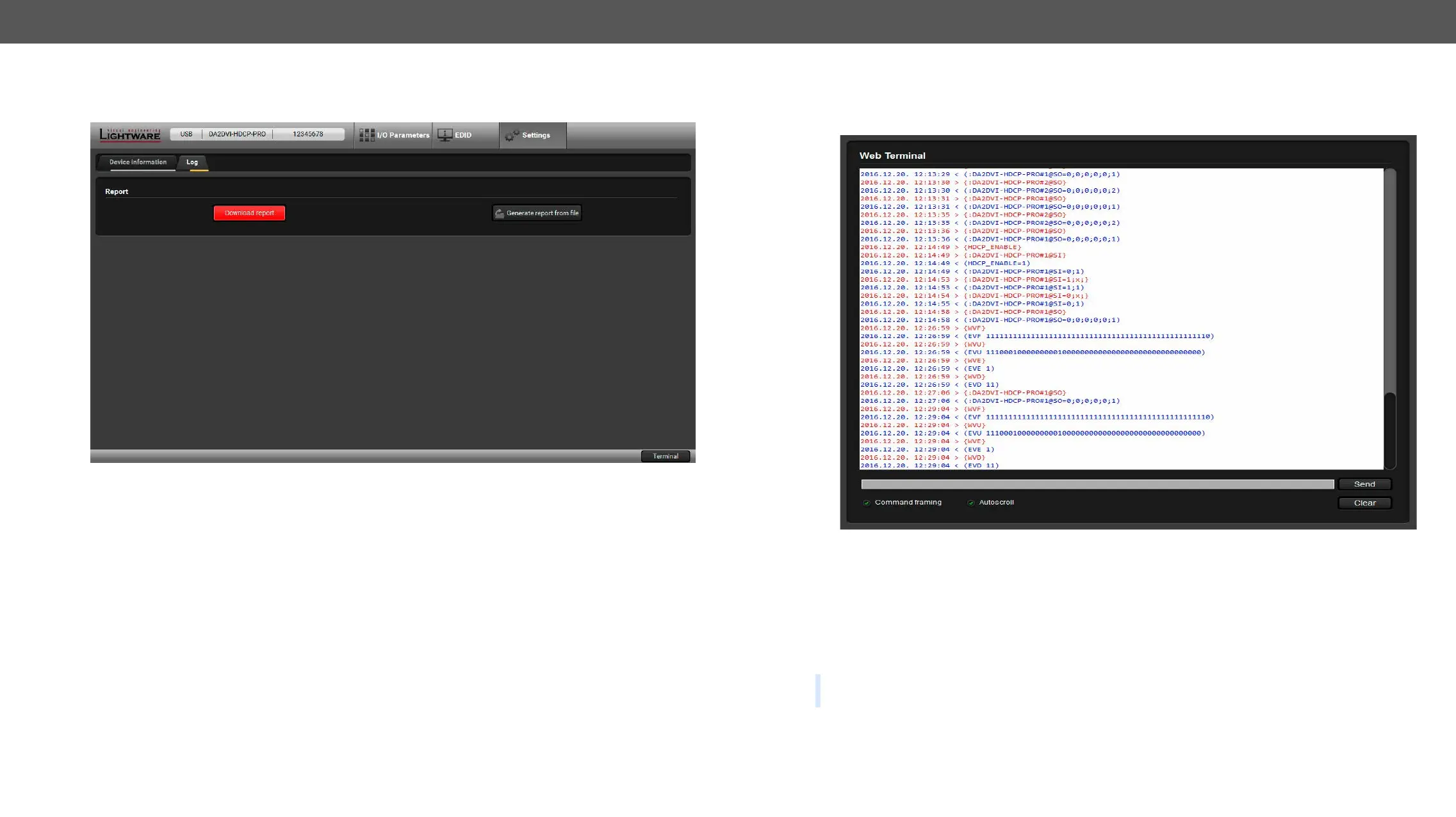

Log Tab in the Settings Menu
be sent to Lightware support team when a problem may arise with the device.
Press the red button
LDC collects the needed information; this may take up to 5 minutes.
After generating the report, a ‘Save as’ dialog box appears. Select the folder where you want to save the
The report contains the following device-dependent information (if available):
▪ Device type and serial number,
▪ Firmware versions of all the internal controllers,
▪ Hardware health status,
▪ All EDID headers and status (emulated, dynamic, factory, user),
Open Custom Report from File
5.6. Terminal Window
This general purpose terminal is intended mainly for testing and debugging purposes. All commands can be
used here that are discussed in the programmer’s reference. The command text can be typed directly.
Terminal Window
By default commands are automatically surrounded by framing brackets. Every sent command and every
The timecode in every row shows the exact time when the command was sent or the response received.
If the Command framing checkbox is unchecked, you can send multiple commands together, however in this
case you have to type in the framing brackets manually.
The terminal can also be opened after starting the LDC - press the Terminal button on the Device discovery
page on the bottom of the window.
TIPS AND TRICKS: The typed commands can be "browsed" when the cursor is in the command line and
you press the up button on the keyboard. The commands are stored until the LDC is closed.
