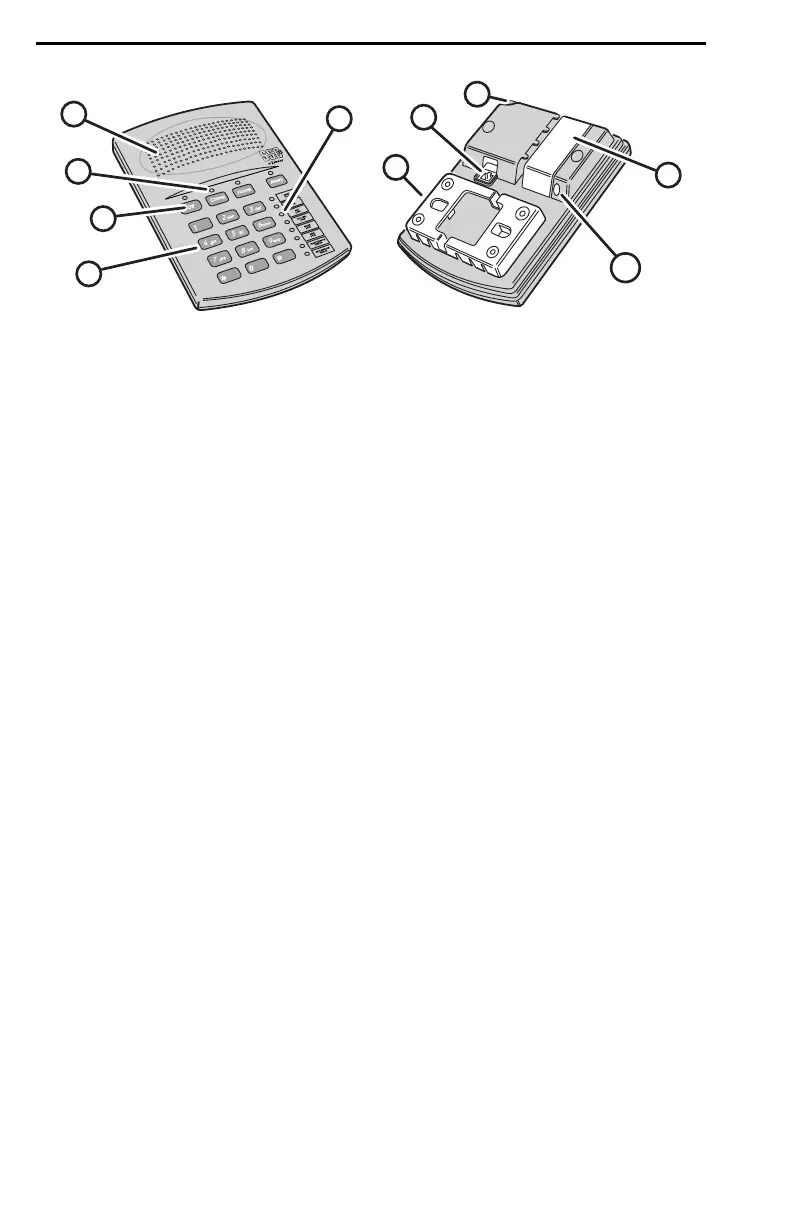

SYSTEM FEATURES
1. SPEAKER
★ Sounds unique sirens for burglary or emergency.
★ Alarm siren stops automatically after five minutes.
★ Sounds mode selection gongs and beeps.
★ Sounds keyclicks as keypad keys are pressed.
★ Sounds beeps during exit and entry time delays in the Away Mode.
★ Sounds “ding-dong” in Chime Mode when protected door or window opens.
★ Console has connections for an external speaker.
2. MODE INDICATORS
★ Displays which mode the system is currently in.
★ During AC power failures, the active mode indicator will blink after 30 seconds.
★ The Away Mode indicator will blink during the exit delay time.
3. MODE BUTTONS
★ Used to change the operating mode of the Console.
★ From the Off Mode, pressing [CHIME], [HOME], or [AWAY] for 2 seconds will arm the system to that mode.
★ From Chime Mode, pressing [HOME] or [AWAY] for 2 seconds will arm the system to that mode.
★ To disarm the system, your secret code must be entered on the keypad first, then pressing [OFF] or [CHIME]
will switch the system to that mode.
4. KEYPAD
★ Used to enter your secret code before disarming the system.
★ Used during system programming to select sensor location numbers or to change your secret code.
★ A beep sounds from the speaker as each key is pressed.
★ The [
∗
] key resets the keypad in case the wrong keys are pressed.
5. SENSOR STATUS INDICATORS
★ Display the status of each of the system’s wireless sensors.
★ When a protected door or window is open, its sensor status indicator will light.
★ If a wireless sensor has a low battery, its sensor status indicator will briefly flash until the low battery is replaced.
★ If an alarm is triggered by a sensor, its sensor status indicator will slowly blink on and off until the system’s
mode is changed twice.
★ Used during programming to show if sensor location is empty or full.
★ Area next to the indicators allows labeling each sensor location with the pre-printed labels supplied.
6. WALL MOUNTING BRACKET
★ Snaps onto the Console for mounting the unit on the wall.
★ Built-in wire holder to store excess AC adapter wire.
7. VOICE DIALER JACK
★ For connection to the optional telephone voice dialer.
8. ANTENNA SCREW
★ Used to secure the whip antenna in place.
9. BATTERY ACCESS DOOR
★ Provides access to the location for the two backup batteries.
★ Two 9-volt alkaline batteries are recommended to provide uninterrupted operation during AC power loss.
10. VOLUME CONTROL
★ Controls the volume of the system’s advisory beeps, gongs, and tones.
★ Does not affect the volume of the system’s sirens.
