CONSOLE LOCATION
•
The Console must be located where it can easily
receive the wireless signals from each of the
system’s sensors.
•
Centrally locate the Console among the system’s
sensors.
•
Keep the Console away from large metal objects.
•
You will have 45 seconds to disarm the system when
entering. Be sure you can get to the Console from
the entry door in 45 seconds.
•
Locate the Console near a 115 VAC outlet that is not
controlled by a wall switch.
CONNECT ANTENNA
•
Loosen screw by antenna hole one turn.
•
Insert the whip antenna into the antenna hole on the
end of the Console then tighten the antenna screw
on the Console bottom.
•
If the Console is going to be used on a flat surface,
bend the antenna upward (see figure).
CONSOLE MOUNTING
•
The Console can be mounted to a wall
(recommended) or placed on a flat surface.
•
Four small plastic anti-mar “feet” are provided to
apply to the unit when used on a flat surface.
•
A wall mounting bracket, screws, and anchors are
provided to hang the unit on the wall.
APPLY POWER & CREATE YOUR SECRET CODE
•
Plug the AC adapter into the power outlet not
controlled by a wall switch. Wait about 5 seconds for
the unit’s self-test to complete.
•
On the keypad, enter a one to five digit secret code,
then press [CHIME].
•
Verify your secret code by entering it again and
pressing [OFF], the unit should switch to the Off
Mode (if it doesn’t, see Resetting the Console).
•
Write down your secret code.
•
To change your secret code see the “Changing Your
Secret Code” section of this manual.
5 OF 16

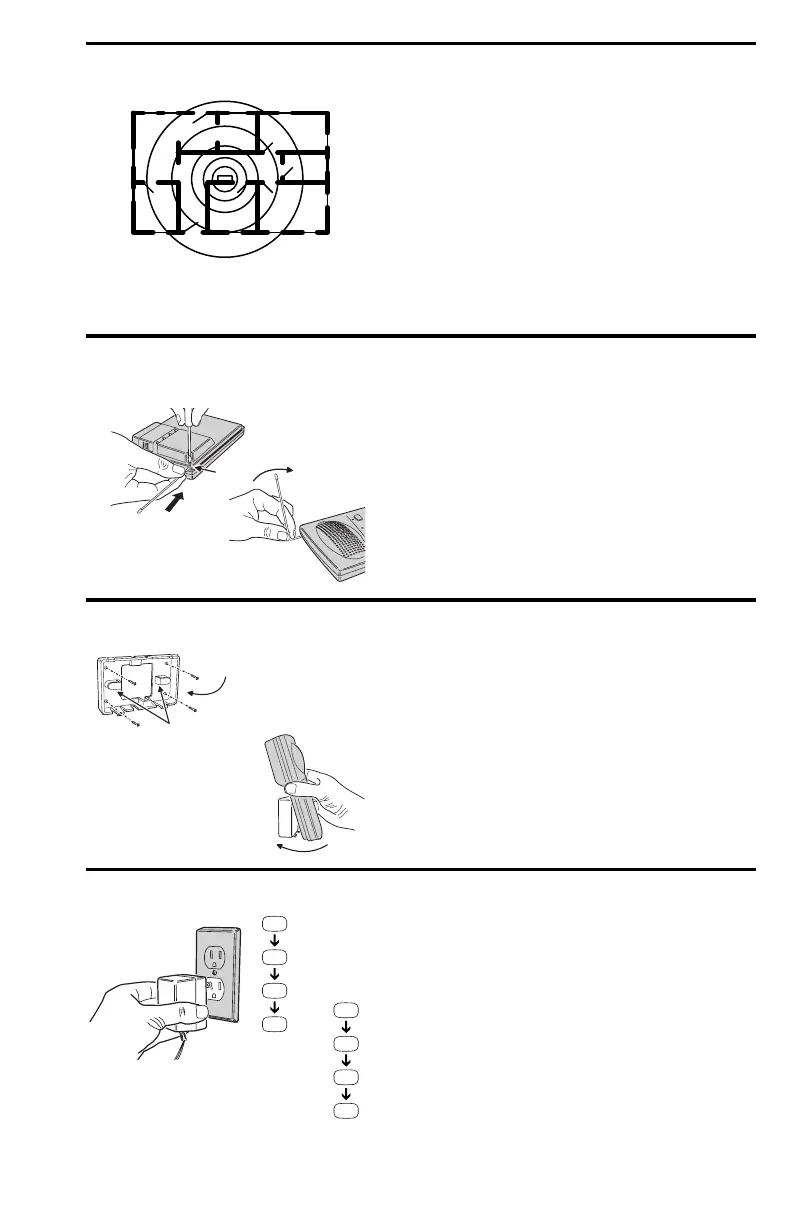

CENTRALLY LOCATE
THE CONSOLE
LOOSEN SCREW
BY ANTENNA HOLE
ONE TURN
SLIDE ANTENNA INTO
ANTENNA HOLE THEN
TIGHTEN ANTENNA
SCREW
ANTENNA
HOLE
IF THE CONSOLE IS
NOT GOING TO BE
WALL MOUNTED,
BEND ANTENNA UPWARD
FOR WALL MOUNTING, ATTACH THE
MOUNTING PLATE TO THE WALL WITH
THE SCREWS AND ANCHORS PROVIDED
EXCESS WIRE CAN BE
WOUND AROUND POSTS
HOOK CONSOLE ONTO
TOP POSTS ON MOUNTING
PLATE, THEN SNAP UNIT
ONTO THE BOTTOM POSTS
NOTE: TO RELEASE UNIT
FROM PLATE, PRESS IN
THE BOTTOM POSTS
Chime
ENTER A 1-5
DIGIT SECRET
CODE AND
PRESS CHIME
Off
ENTER THE SECRET
CODE AND PRESS
OFF TO TEST THE
NEW CODE
PLUG AC ADAPTER
INTO OUTLET
INSTR, INSTALLATION, SSD8
Linear P/N: 215583 B
Material: 20# White Mead Bond with 80# White Coated Cover
Ink: Black
Size: 8.500" x 5.500"
Scale: 1-1
3
