Linksys MAX-STREAM MR8300 User Manual

24

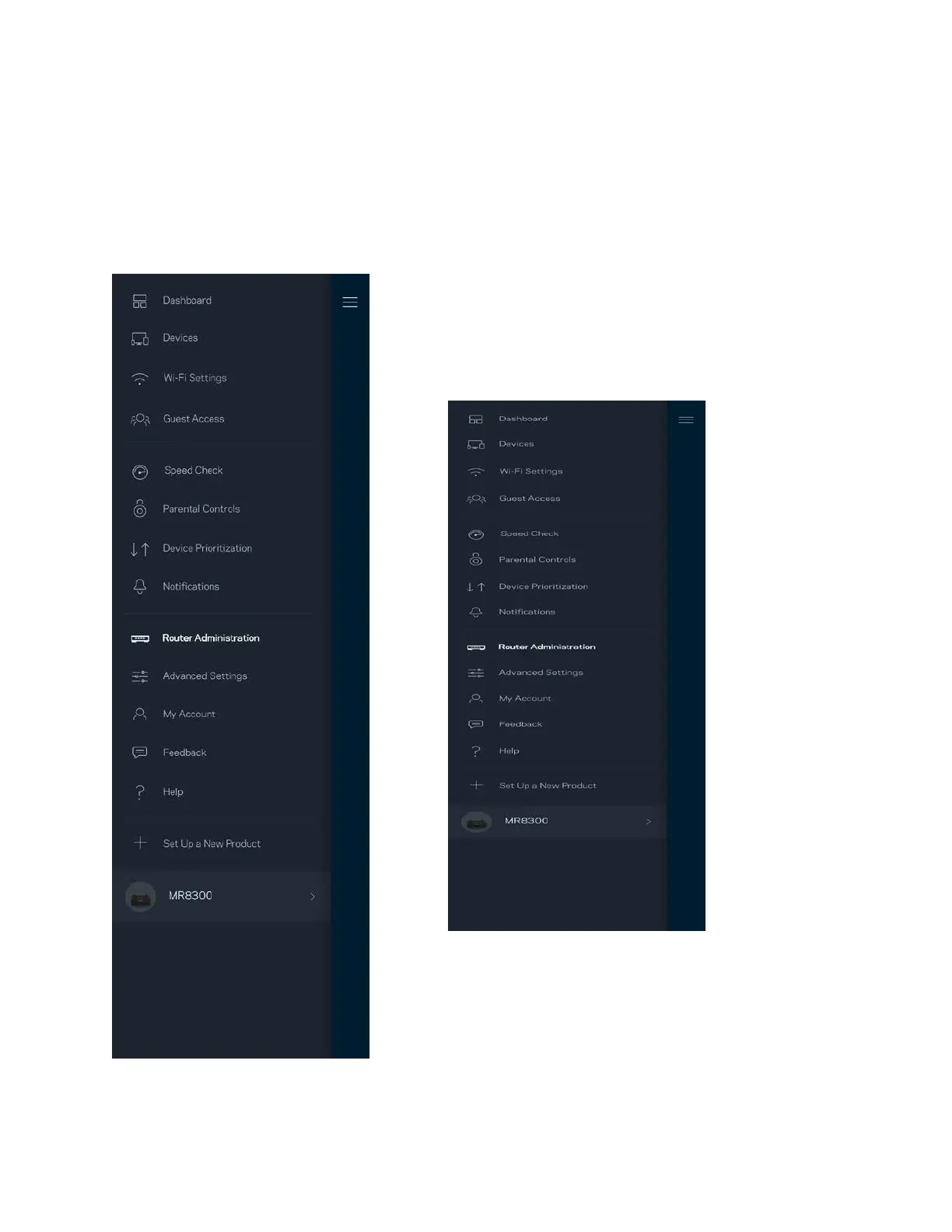

Router Administration
Use the Router Administration screen to change the router password and hint, and check various
identifiers (model number, serial number, and IP details) for your router.
Opt in to automatically report crashes to Linksys and contribute to improving the Wi-Fi experience.
You also can manually report specific issues to Linksys.

Linksys MAX-STREAM MR8300 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, Status, USB, WLAN
Wall mountable	Yes
DSL WAN	-
WAN connection type	RJ-45
Antennas quantity	4
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	716 MHz
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	128-bit AES, WPA, WPA2

Weight and Dimensions

Depth	213.7 mm
Width	161.8 mm
Height	54.8 mm
Weight	608 g
