Linksys MAX-STREAM MR8300 User Manual

8
Set Up
IMPORTANT—Your MR8300 can only be set up as a primary node in a whole home mesh Wi-Fi
system. A primary node must be connected with an ethernet cable to your modem or modem router.
Secondary nodes can be connected wirelessly or with ethernet cables.
If you are adding the router to an existing Velop whole home mesh Wi-Fi system, factory reset all
nodes and add them to the system after your MR8300 is setup and working.
Download the Linksys app. You need this app to set up your router.
Go to the app store for your device and search for Linksys.

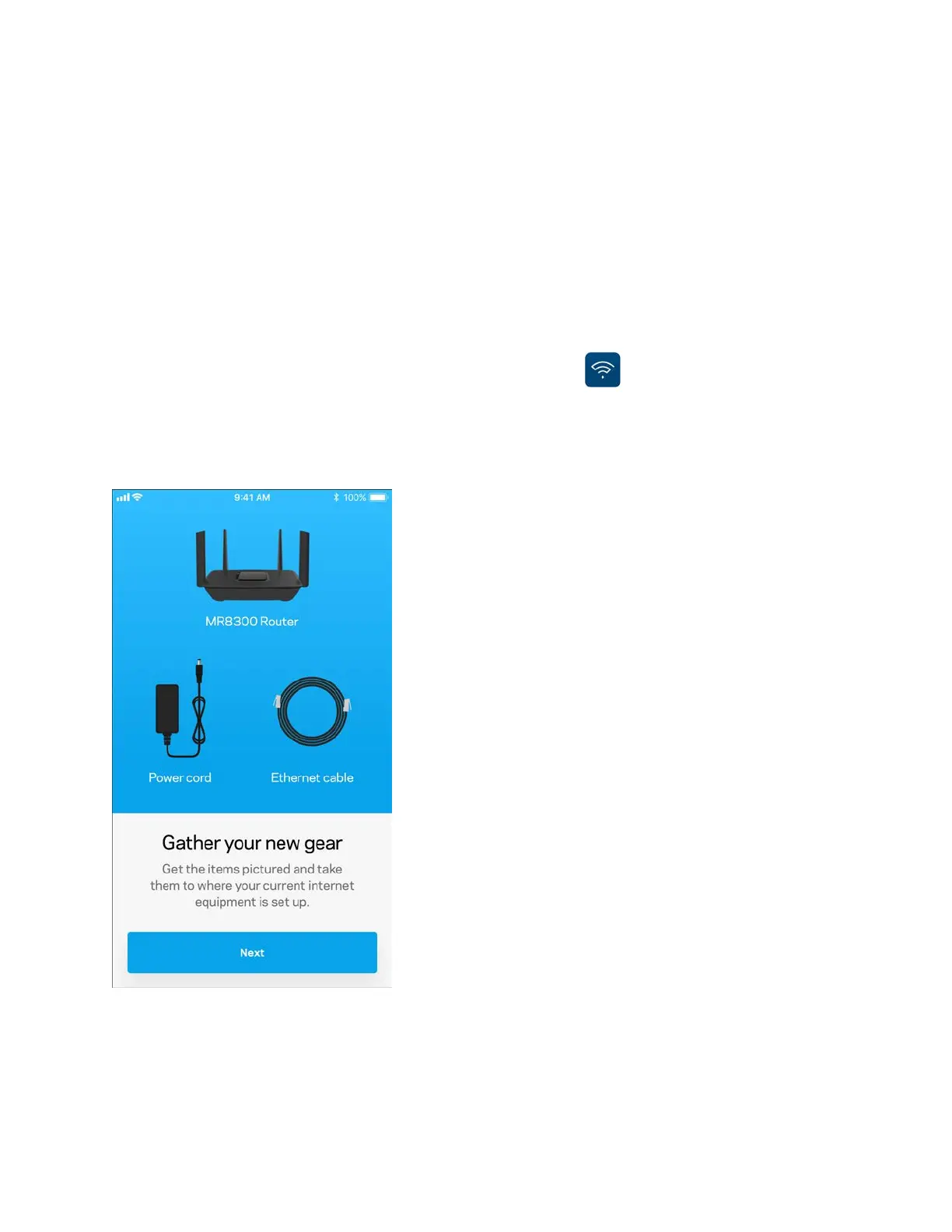

What you’ll need

Linksys MAX-STREAM MR8300 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, Status, USB, WLAN
Wall mountable	Yes
DSL WAN	-
WAN connection type	RJ-45
Antennas quantity	4
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	716 MHz
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	128-bit AES, WPA, WPA2

Weight and Dimensions

Depth	213.7 mm
Width	161.8 mm
Height	54.8 mm
Weight	608 g
