Rev: 12.27.2017
Page 18
LCI Level-Up Motorized Leveling Winnebago Industries up to 9-2015 Owner's

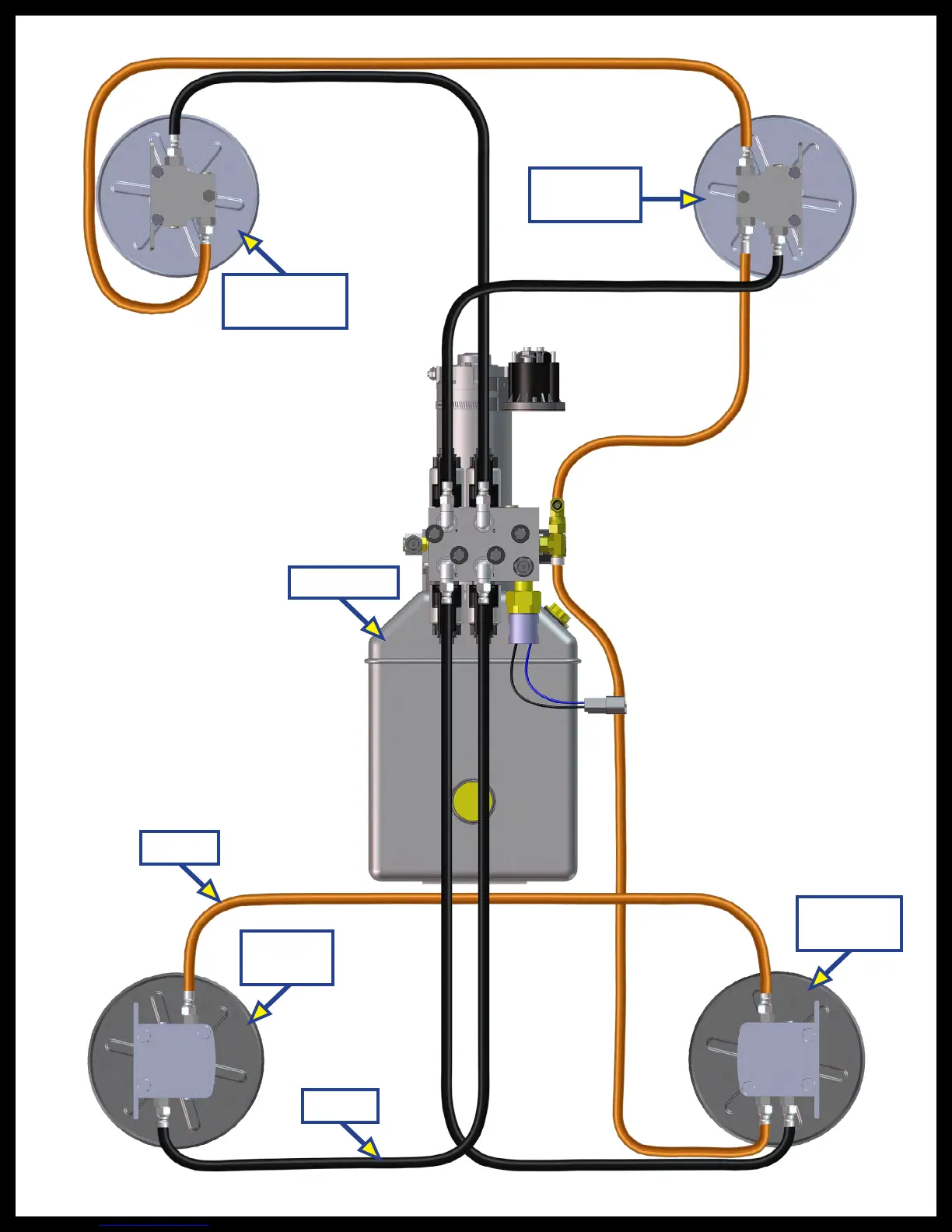

Plumbing Diagram
Orange - Retract
Black - Extend
Retract
Extend
Left Rear
Jack
Right Rear
Jack
Power Unit
Right Front
Jack
Left Front
Jack
17
19
Table of Contents
Default Chapter
2
Table of Contents
2
System
3
Prior to Operation
3
System Description
4
Component Description
4
Maintenance
4
Fluid Recommendation
4
Preventative Maintenance
4
Fitting Orientation
6
Controls
7
Features
8
System Wiring Requirements
8
Air and Auxiliary Features (When Applicable)
8
Level Zero Point Calibration
9
Error Mode
10
Excess Slope
10
User Alarm Mode
11
Miscellaneous
11
Low Voltage Signal
11
Operation
11
Selecting a Site
11
Automatic Leveling Procedure
11
Manual Leveling Procedure
12
Automatic Leveling Descriptive Logic
12
Jack Retract Procedures
13
Remote Leveling Operation
14
Manual Override - Jacks
14
Manual Override - Power System
15
Automatic Safety Shutoff
15
Drive Away Protection System
15
Jacks Down" Alarm
16
Fluid Recommendation
16
Wiring Diagram
17
Plumbing Diagram
18
Bill of Materials
19
Troubleshooting Guide
20
Level-Up Motorized Leveling
21
Level-Up Motorized Leveling
22
Level-Up Motorized Leveling
23
Level-Up Motorized Leveling
24
Level-Up Motorized Leveling
25
Level-Up Motorized Leveling
26
Notes
27
