GB
15
Connections
Connecting an AV Device with Composite Cable
1. Use the supplied AV cable to connect the TVs
AUDIO(L/R)/VIDEO input sockets to an external AV
devices composite audio/video sockets. (Video =
yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located on the right side under the frame.
3. Press the
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
4. Press the SOURCE button on the top panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the
buttons to select AV and
then press the OK button to confirm.
Connecting an AV Device with a SCART Cable
1. Use a SCART cable to connect the TVs SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located on the right side under the frame.
3. Press the
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.

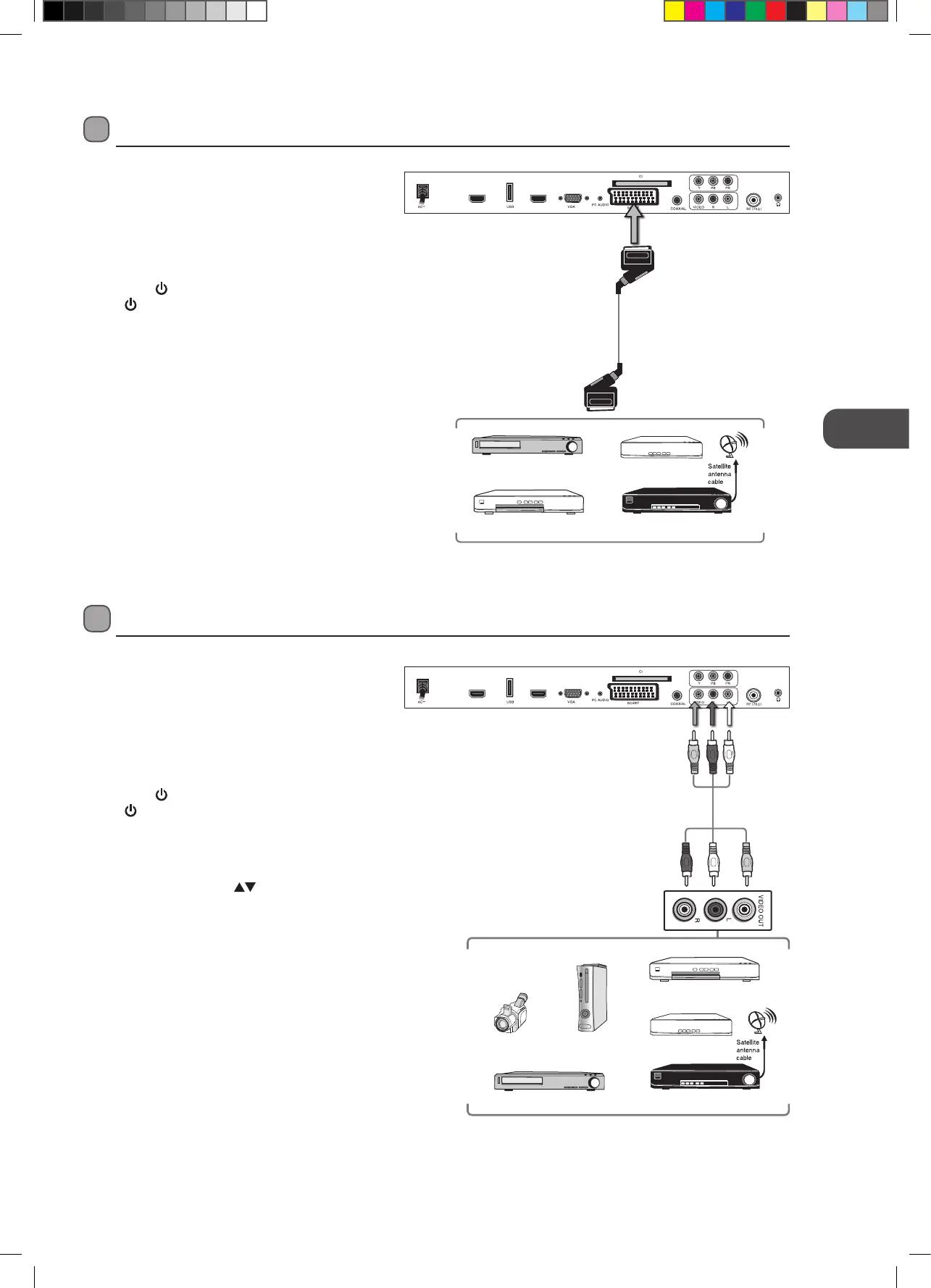

Rear View of TV
HD MI1HD MI2
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Rear View of TV
HD MI1HD MI2
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
