17
COMPILER TECO/ATI ENDORSEDDATE
23.06.2003
REG. CODE
1-5302-607
MODEL N°
50889
DATE OF ISSUE
06-03
REVISION 00
IX
1
3
2
4

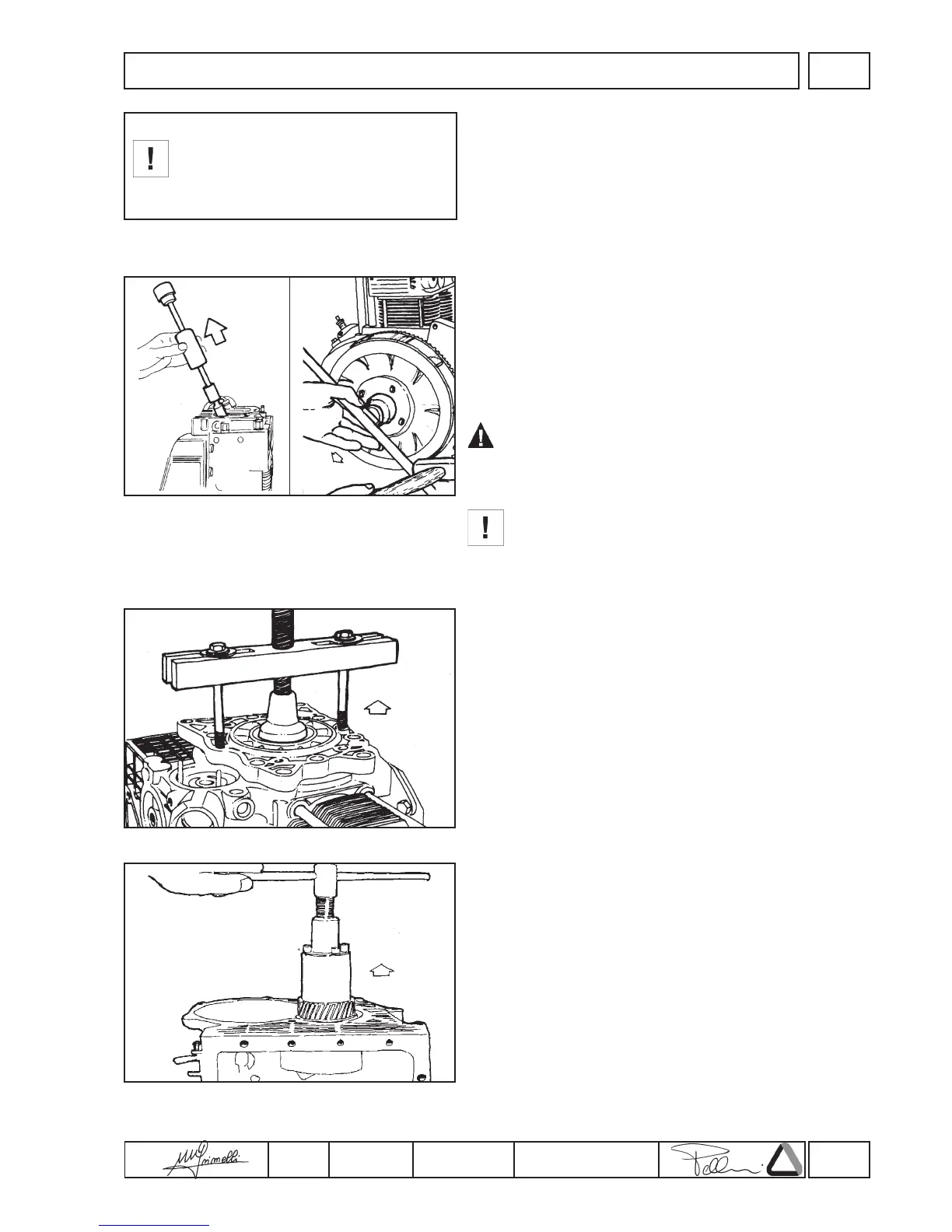

DISASSEMBLY OF THE ENGINE
During repair operations, when
using compressed air, wear eye
protection.
Extracting fuel injectors
Unscrew the fuel feeding pipes.
Remove the injectors using a commercial extractor tool as shown in
fig. 1.
Removing the flywheel
Use the extractor number 00365R0020 as shown in figure 2.
During the demounting phases, pay particular attention to
prevent the flywheel from dropping as this could seriously
injure the operator.
Wear protective goggles when removing the flywheel ring.
IMPORTANT: Do not tap the end of the extractor when
removing the flywheel.
Extraction of flywheel side main bearing
Withdraw the bearing using two M8 screws taking care to tighten
them evenly; alternatively use a commercial extractor, as shown in
figure 3.
Extraction of crankshaft gear
Use extractor tool number 00365R0890 (fig.4).
DISASSEMBLY AND REASSEMBLY
Besides disassembly and reassembly operations this chapter also
includes checking and setting specifications, dimensions, repair
and operating instructions. Always use original LOMBARDINI spare
parts for repair operations.
