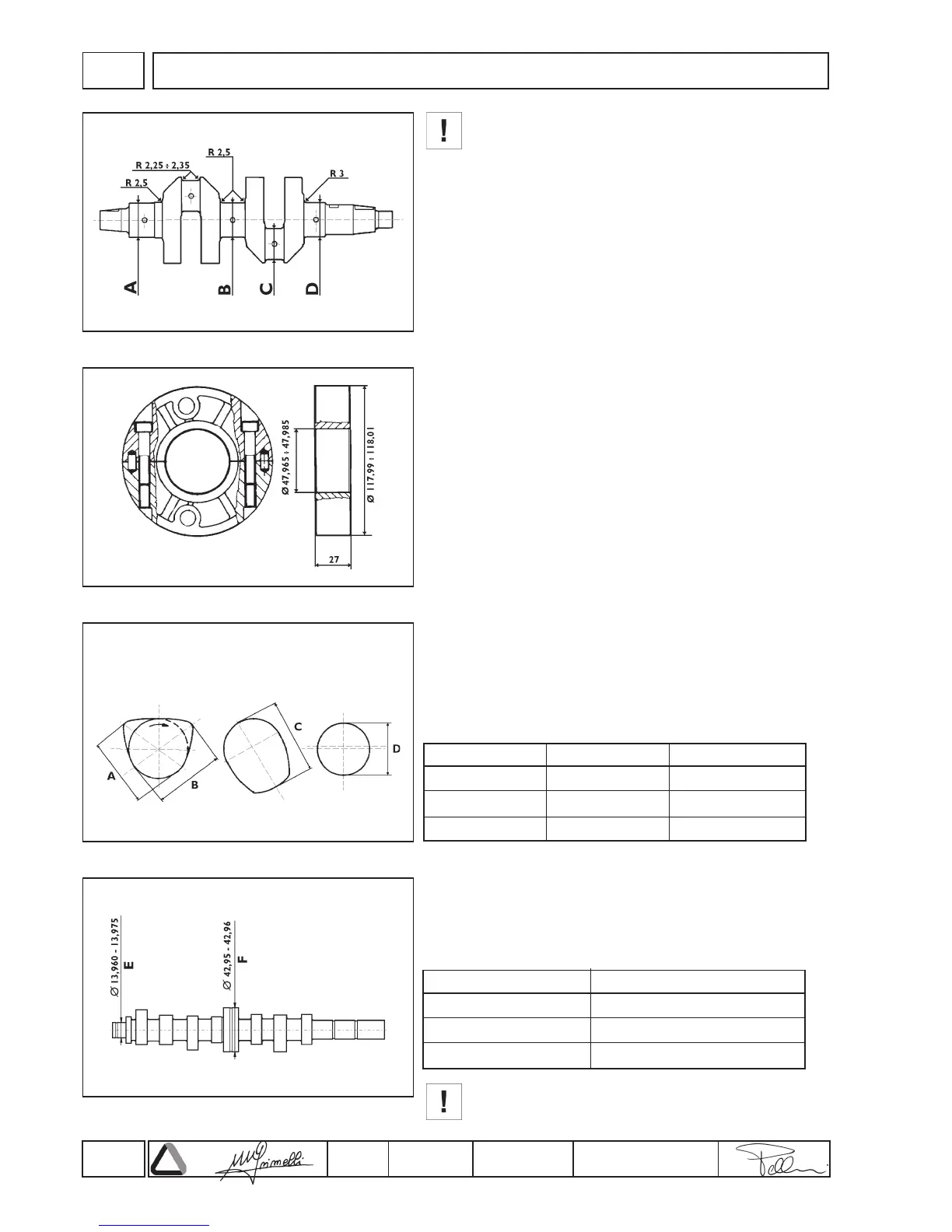

CHECKS AND OVERHAUL
During grinding take care not to remove the shim
adjustment material from the main journal thrust face to
avoid changing the crankshaft end float; also ensure that
the grinding wheel radii are as specified in figure 28 so as
not to create crack initiation sections on the crankshaft.
Assembly clearance between the journals and their housings
should be (fig.31):
Renew the camshaft if the cams or journals show wear in
excess of 0.1mm.
Measurement Dimensions mmCam
Timing
Injection
Fuel pump
Measurement
E
F aluminium crankcase
F cast iron crankcase
Clearance mm
Oil seal rings
Check that the rings have not hardened around the internal contact
edge and that they show no signs of cracks or wear.
Camshaft
Check the cams and bearing journals for scoring and wear.
Measure the dimensions and compare them to the values in the
table below and shown if figures 30-31.
Camshaft dimensions fig.30.
inlet/exhaust injection feeding pump
Central main bearings
In order to facilitate assembly the central main bearings are of
different external diameters (fig.29) and are machined with a
bevelled edge to assist their insertion into the crankcase.
Check the dimensions of the shells and renew them if they are
worn or deformed.
Also check the condition of the oil passages (25LD425-2) and, if
necessary, clean them with paraffin or petrol and dry with
compressed air.
