LS tractor MT335 User Manual
5
of 1
of 1 rating
254 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3
-2
8

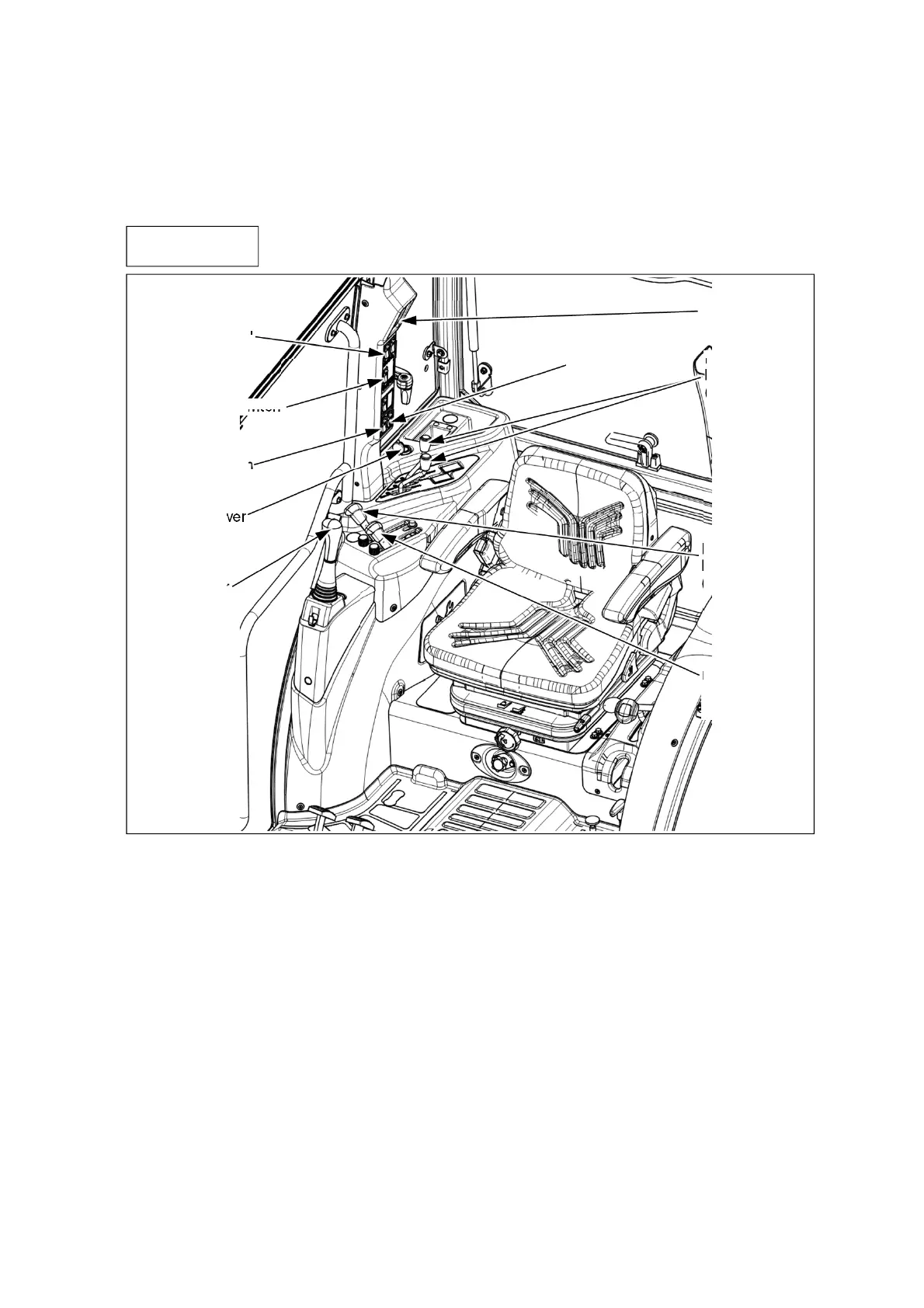

HST type
Work light switch
Window wiper switch
Indoor light
Remote control
lever
(Page 3-49)
Position control
lever
(Page 3-44)
Draft control
lever
(Page 3-44)
ESC speed
up/down
switch
Joystick lever
(Page 3-51)
Electrical pow
e
r
outlet socket
ESC main switch
Important to owner
, read carefully
103
105
Table of Contents
Table of Contents
9
General Notices for Safety
15
Note to the Owner - General Information
15
Before Using the Tractor
17
Manual Scope and Required Training Level
19
Metric and Imperial Units Abbreviations
21
Product Identification Number (PIN)
23
Operator's Manual Storage
25
Tractor Orientation
26
Safety Precautions (Read this for Safety before Using)
27
Notices before Using the Tractor
27
Notices When Starting Engine
31
Notices While Operating/Using the Tractor
32
Notices When Connecting Implement
34
Notices When Towing the Tractor
35
Notices When Transporting the Tractor
35
Notices When Servicing the Tractor after Work
36
Notices When Handling Diesel Fuel
37
Notices When Leaving the Tractor
38
Notices Relating to Toxic Substances
38
Tractor Stability
39
Ecology and the Environment
42
Symbols
44
Safety Decals
45
Instructional Decals
54
Long-Term Storage
59
Preparation for Storage
59
Check & Maintenance During Storage
60
Preparation for Reuse
61
Instruction for Safe Operation
63
The Name of each Part
63
Boarding and Exiting the Tractor
65
Boarding the Tractor
65
Driver's Seat (HST Type)
66
Seat Adjustment
67
Seat Belt
69
Tilting Steering Wheel
70
Ventilation (Cabin Only)
70
Exiting the Tractor
71
Safety Device
72
Hood (Bonnet)
72
Fender
72
PTO Safety Cover and Protection Cap
72
Roll-Over Protective Structure (ROPS)
73
Instruments and Controls
77
Instrument Panel and Front Controls
77
Instrument Panel
79
Key Switch
86
Turn Signal Light Switch
87
Light Switch
88
Hazard Warning Light Switch
89
Horn Switch
90
Grille Work Light Switch
90
DPF Switch
91
PTO Switch
96
PTO Mode Switch
96
Shuttle Lever (Mechanical Synchro-Shuttle)
97
Throttle Lever
97
Throttle Pedal (Mechanical)
98
Clutch Pedal (Mechanical)
98
Brake Pedals
99
Cruise Control Switch (HST Models Only)
100
HST Forward/Reverse Pedal (HST Models Only)
100
HST Linked Pedal Switch (HST Models Only, Optional)
101
ESC Main Switch (Roll-Bar, HST Models Only)
102
ESC Speed Up/Down Switch (Roll-Bar, HST Models Only)
102
Right-Hand Controls and Cabin Pillar (Cabin Type)
103
Main Gear Shift Lever (Mechanical)
103
Parking Brake Lever
105
Differential Lock Pedal
105
Work Light Switch
106
Window Wiper&Washer Switch
106
Electrical Power Outlet Socket
107
Indoor Light
107
Audio Player (if Fitted)
107
ESC Main Switch
108
ESC Speed Up/Down Switch
108
Beacon Lamp Switch
109
Left-Hand Controls (Cabin Type)
110
Range Gear Shift Lever
111
PTO Gear Lever (if Fitted)
111
Four Wheel Drive Lever (4WD)
112
Middle PTO Lever (if Fitted)
112
Left / Right-Hand Controls (Roll-Bar Type)
113
Main Gear Shift Lever
113
Parking Brake Lever
114
Differential Lock Pedal
115
Work Light Switch
115
ESC Main Switch (MEC Models Only)
116
ESC Speed Up/Down Switch (MEC Models Only)
116
Range Gear Shift Lever
117
PTO Gear Lever (if Fitted)
117
Four Wheel Drive Lever (4WD)
118
Middle PTO Lever (if Fitted)
118
Hydraulic System
119
Safety Precautions
119
Steering System
120
Hydraulic Lift Control (MHL) (Cabin Type)
120
Hydraulic Lift Control (MHL) (Roll-Bar Type)
122
Remote Control Lever and Quick Coupler (Optional)
125
Joystick Lever (if Fitted)
127
Hydraulic System Diagram
128
Operation and Work
131
How to Handle New Tractor
131
Check Points
131
Notices in Handling New Tractor (Engine Brake-In Procedure)
131
Engine Start and Stop
132
Engine Start
132
Start in Cold Weather
134
Engine Stop
135
How to Drive and Stop
136
Transmission Warm-Up in Cold Weather
136
How to Drive
137
Changing Speed
139
Emergency Stop
140
Stopping Tractor
141
Parking
142
Handling Turbocharger (if Fitted)
142
Transport on Public Roads
143
Safety Rules When Driving Tractor on the Roads
143
Light Operation
144
7-Pole Connector (Optional)
146
Notices When Towing the Tractor
147
Notices When Transporting the Tractor
149
Field Operations
150
Rear 3-Point Linkage
150
Power Take-Off (PTO) Operation
154
Hitch and Drawbar (Optional)
157
Technically Maximum Permissible Mass
158
Tires and Load Capacity
159
Adjusting Wheel Tracks and Tire Replacement
160
Using Front-End Loader (Optional)
162
Adjusting Steering Angle
165
Recommended Maximum Specification of Implements
166
Ballasting Weights (Optional)
167
Working in Hazardous Area
170
Driving Speed
171
Lubrication and Maintenance
173
General Information
173
Tightening Torque for Normal Assembly
174
Standard Torque Data for Hydraulics
176
General Specification - Diesel Fuel
179
Biodiesel Fuel
180
Refueling the Tractor
182
Change Engine Coolant to Organic Acid Technology (OAT) Coolant
183
Access for Maintenance
184
Maintenance Chart
185
Lubricants and Capacity
189
First 50 Hour Check
190
When the Warning Indicator Lights
191
Drain Water from Fuel Filter
191
Engine Oil Pressure Indicator
192
Battery Charging Indicator
192
Check before Starting (Daily Check)
193
Engine Oil
193
Fuel Tank
194
Instrument Panel & Indicators
194
Turn Signal Lights, Lights and Horn
195
Engine Coolant
196
Air Cleaner (Dry Type)
196
Cleaning of Radiator and Radiator Screen
197
Tire Air Pressure and Damage
197
Tightening State of Bolts and Nuts of each Part
198
Adjustment of Clutch Pedal Play (Mechanical Type)
199
Adjustment of Brake Pedal Play
200
Adjusting HST Control Linkage (HST Type)
201
Every 50 Hour Check
202
Lubricating Grease Nipple
202
Cleaning of Radiator and Radiator Screen
202
Checking Transmission Oil
203
Checking Front Axle Oil (4WD)
203
Battery Check
203
Air Cleaner (Dry Type)
203
Hydraulic Hoses and Leakage
204
Cleaning Cabin Air Filters
204
Every 100 Hour Check
205
Checking and Adding Engine Oil
205
Every 300 Hour Check
206
Replacing Engine Oil and Filter
206
Replacing Hydraulic Oil Filter
207
Tension Adjustment of Engine Belt
208
Toe-In
208
Cleaning Fuel Tank
209
Every 500 Hour Check
210
Changing Front Axle Oil
210
Changing Transmission Oil
210
Replacing Fuel Filter Element
211
Replacing Air Cleaner Element (Dry Type)
212
Replacing Cabin Air Filters
212
Every 1000Hr or 1-Year Check
213
Adjusting Engine Valve Clearance
213
Checking Nozzle Injection Pressure
213
Every 1500Hr or 2-Year Check
214
Replacement of Engine Coolant
214
Cleaning Emission Related Parts
217
Every 3000Hr Check
218
Cleaning Emission Related Parts
218
General Maintenance (When Required)
219
Air-Bleeding from Fuel System
219
Fuse & Main Fuse
221
Battery Handling and Notices
223
Alternator and Drive Belt - Check
227
Tail/Brake Light Bulb and Turn Signal Light Bulb- Replace
228
Headlight Bulb - Replace
230
Touch-Up Paint Color
231
Troubleshooting
232
Air Conditioning System (Cabin Type)
239
The Name of each Part of Cooling and Heating System
239
How to Use Air Conditioner and Heater
240
How to Operate Air Conditioner and Heater
240
Air Direction Control
240
Every 6 Month Check
241
Checking Refrigerant Amount
241
Cleaning Condenser and Radiator Screen
241
Checking Leakage
241
Belt Tension Adjustment
242
Cleaning and Replacing Cabin Air Filters
242
Every Year Check
243
Compressor Check
243
Control Switch Check
243
Troubleshooting
244
System Diagram
246
