Lumens DC125 User Manual

English - 35
6.3.4 Camera Settings
Control the live image via the Camera Settings interface. The operating
procedure is the same as the control panel and remote control of the
Document Camera.
<Remark> The display of the button may vary depending on product
functions. An inactive button will grey out.

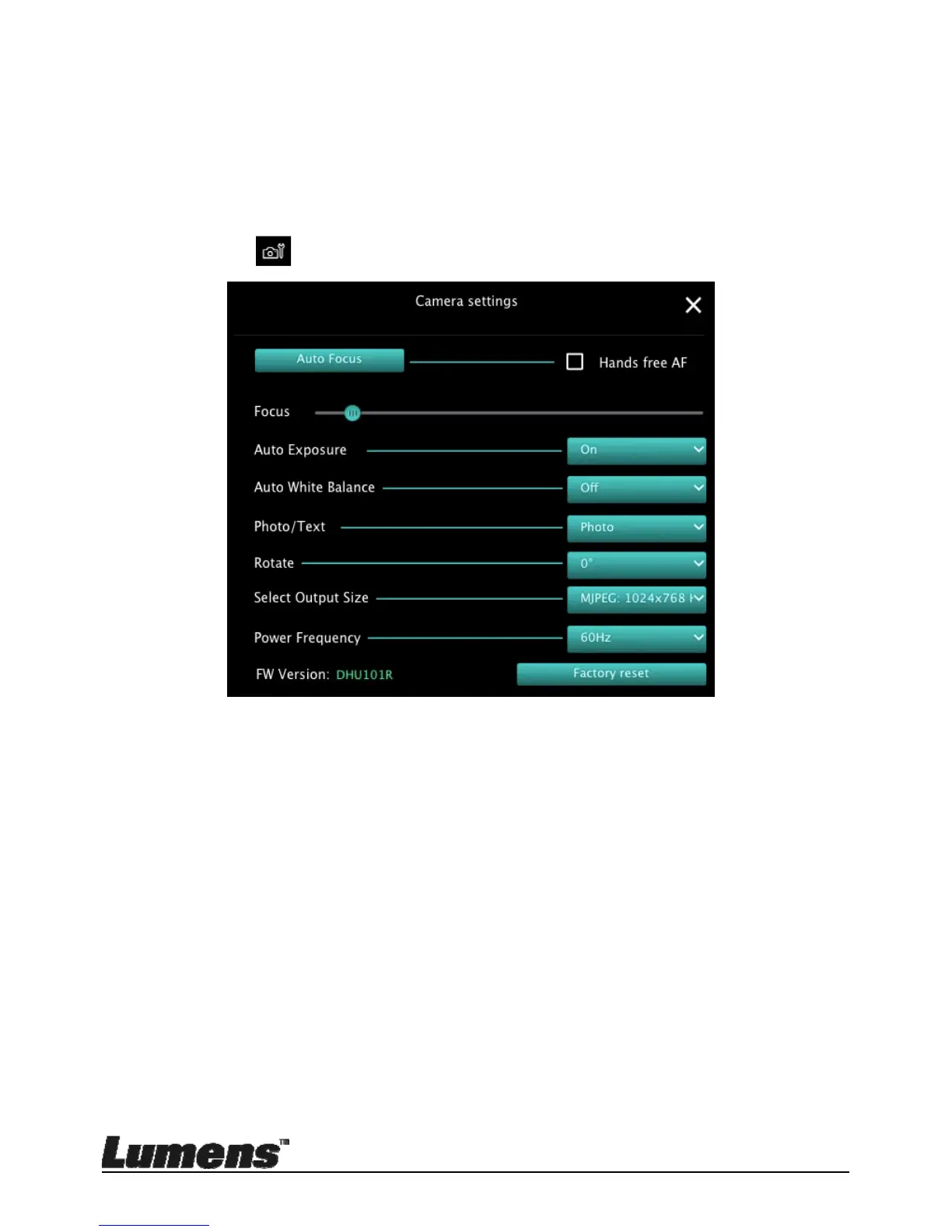

Click to open Camera Settings interface.
1. Auto Focus：Adjust the best focal length.
2. Hands free AF：Automatically adjust the best focal length.
3. Focus：Manually adjust focal length on an object.
4. Auto Exposure：Set on/off.
5. Auto White Balance：Set on/off.
6. Photo/Text：Setting Photo/Text mode.。
7. Rotate：Rotate the image by 0/180 degree.。
8. Select Output Size：Set output resolution.
9. Power Frequency：The power frequency may vary with countries.
Please check it before using.
<Remark> In most parts of the world, it is 50 Hz. In the America,
however, it is typically 60 Hz.
10. FW Version: FW version of the Document Camera.

Lumens DC125 Specifications

General

Sensor type	-
Image freeze	No
Maximum frame rate	30 fps
Optical sensor size	- \
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Optical zoom	8 x
Shooting area (WxD)	400 x 300 mm
Lamp type	LED
Photo effects	Mirror
Product color	Red
Cable lock slot	Yes
Cable lock slot type	Kensington
Image quality adjustment	Sharpness
Interface	USB 2.0
Power supply type	USB

Weight and Dimensions

Depth	236 mm
Width	106 mm
Height	280 mm
Weight	1200 g
Dimensions folded (WxDxH)	236 x 106 x 280 mm
