Lumens VS-KB30 User Manual

English - 17
 Baud Rate is set as 9600
 Port is set as RS232
 Press EXIT to exit
5.3 Instruction on RS-422 Setting
 Press SETUP, and select CAMERA SETTING
 Set CAMID and Title
 After protocol is set as VISCA, press P/T SPEED to access the
advanced setting
 Baud Rate is set as 9600
 Port is set as RS422
 Press EXIT to exit
5.4 Instruction on IP Setting
5.4.1 Set VS-KB30 IP address
 Press SETUP, and select KEYBOARD SETTING => IP CONFIGURATION
 Type: Select STATIC or DHCP
 IP Address: If select STATIC, use P/T SPEED to choose the location, input
IP address via numbers on the keyboard. Last, press ZOOM SPEED to
save and exit
5.4.2 Add Cameras

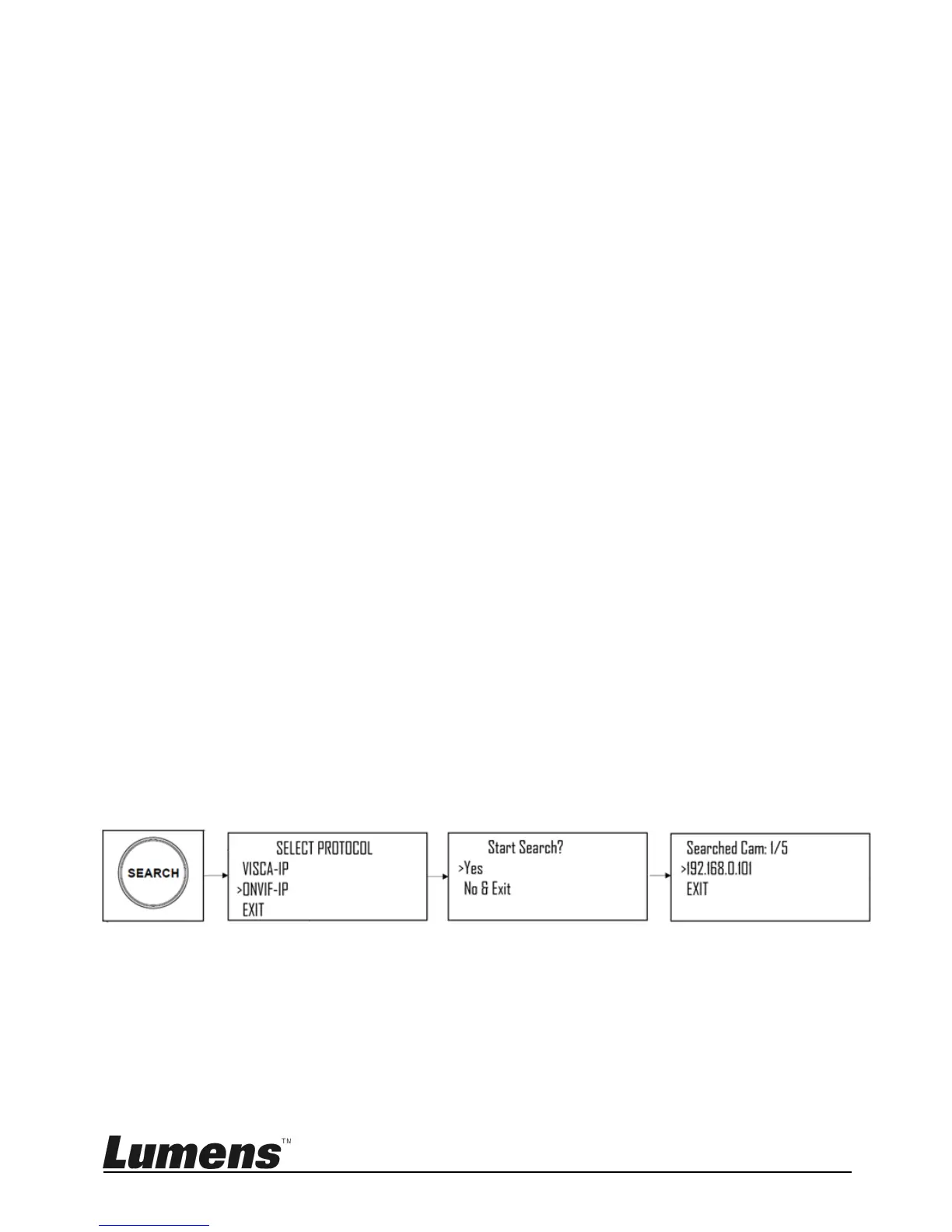

1. Automatic Search
 Press SERTCH
 Select VISCA-IP or ONVIF-IP
 VISCA-IP: Search available VISCA over IP cameras on the
internet
 ONVIF-IP: Search available ONVIF cameras on the internet
 Select the target camera; set the CAMID and Title for the camera
