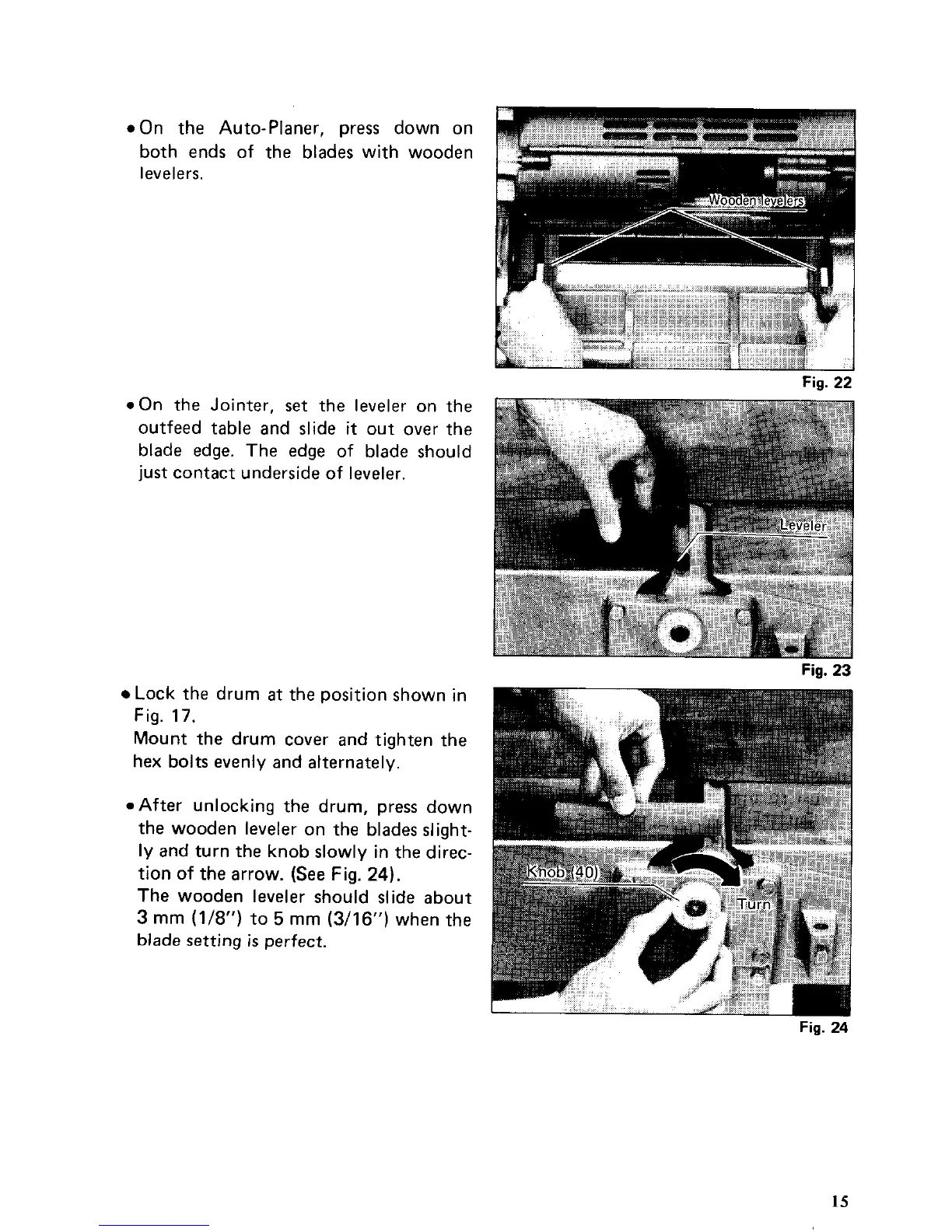

.On the Auto-Planer, press down on
both ends
of
the blades with wooden
levelers.
*On the Jointer,
set
the leveler on the
outfeed table and slide
it
out over the
blade edge. The edge
of
blade should
just contact underside
of
leveler.
Lock the drum
at
the position shown in
Fig.
17.
Mount the drum cover and tighten the
hex bolts evenly and alternately.
*After unlocking the drum, press down
the wooden leveler on the blades slight-
ly
and turn the knob slowly in the direc-
tion
of
the arrow.
(See
Fig.
24).
The wooden leveler should slide about
3
mm
(1/8")
to
5
mm
(3/16")
when the
blade setting
is
perfect.
~
Fig.
22
Fig.
23
Fig.
24
15
